Edco TMC-7 Operator's Instruction Manual

Edger grinder, gasoline/electric powered
Hide thumbs Also See for TMC-7:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
E-TMC7,EDG7,TG7-I-0504

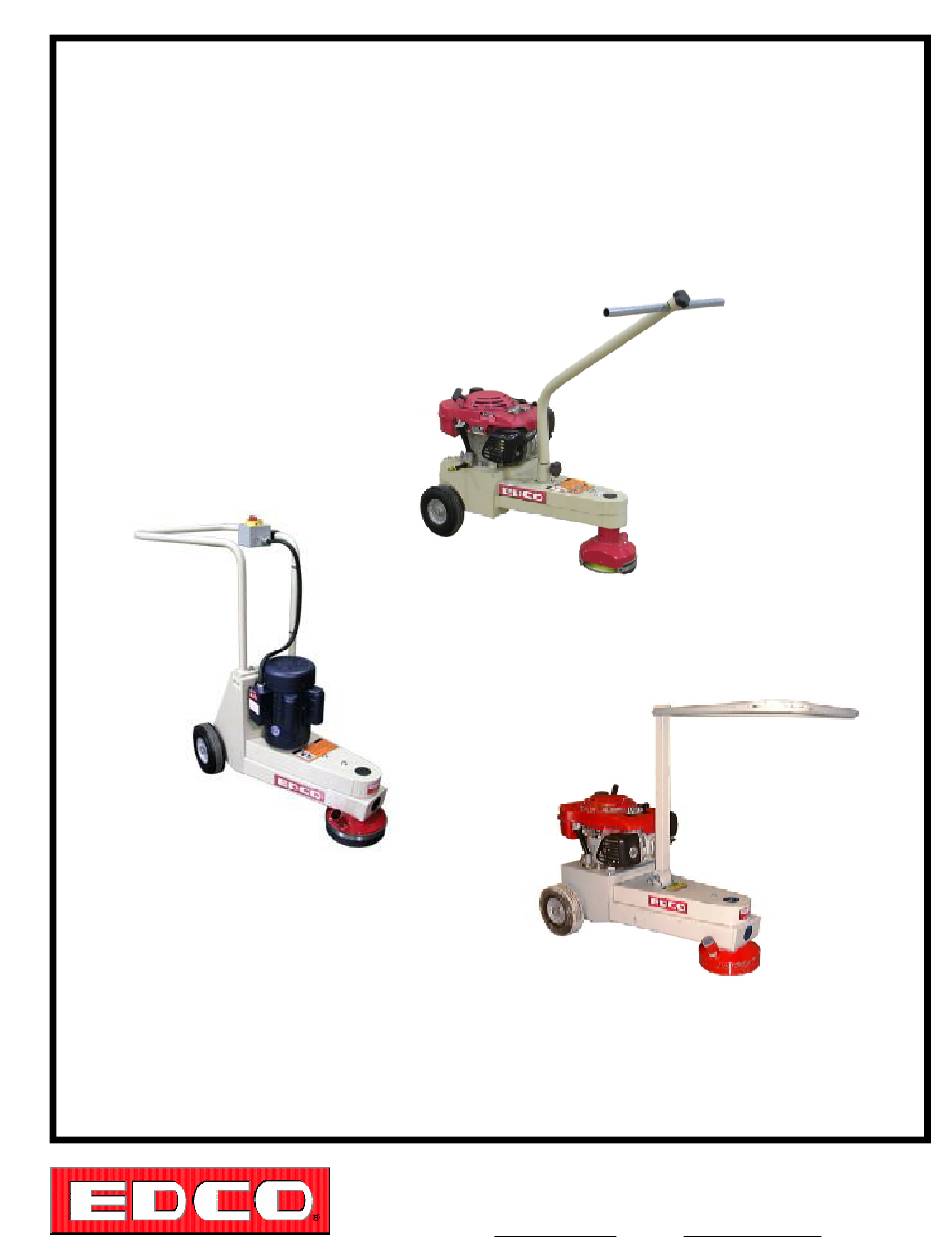

Operator's Instruction Manual
MODELS TMC-7, EDG-7, TG-7
TMC-7
EDG-7
TG-7
EDGER GRINDER
Gasoline/Electric Powered
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
©2004
TVW
Page 1
Website: www.edcoinc.com • Email: sales@edcoinc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMC-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco TMC-7

Summary of Contents for Edco TMC-7

  • Page 1 E-TMC7,EDG7,TG7-I-0504 Operator’s Instruction Manual MODELS TMC-7, EDG-7, TG-7 TMC-7 EDG-7 TG-7 EDGER GRINDER Gasoline/Electric Powered 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2004 Page 1 Website: www.edcoinc.com • Email: sales@edcoinc.com...
  • Page 2 E-TMC7,EDG7,TG7-I-0504 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp the plug, not the cord.
  • Page 3 TG-7 Shown Figure 1 Specifications and dimensions are approximate HOW TO ORDER REPAIR PARTS and subject to change. To ensure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equipment. TMC-7 EDG-7 TG-7 Model When ordering parts, please specify the MODEL and SERIAL 38.5”...

  • Page 4: Safety Guidelines

    Hazardous areas should be properly identified and clearly marked. • The TMC-7, EDG-7 and TG-7 are designed to be controlled by a single operator . • Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/or damage to property can result.

  • Page 5: Operating Instructions

    E-TMC7,EDG7,TG7-I-0504 Operating Instructions The EDCO edge grinders are designed to be used in conjunction with other EDCO surface preparation products. It’s small, lightweight construction allows the operator to grind close to obstacles. These units are equipped with a single 7” diameter Diamond Segmented Disc that is an aggressive surface material grinder for removing excess concrete, epoxy mortar, urethane coatings and overlays, and non-skid abrasive coatings on steel, concrete, or polymer slab floors.
  • Page 6 • The EDCO VAC-100, VAC-160 and VAC-150 have available optional HEPA filter kits designed to be used when removing hazardous materials. Standard, shop-vac style vacuums are not capable of extended operation. In addition, these standard vacs use paper bag filters that can clog and overload the vacuum motor.
  • Page 7 (Figure 4) with a flat screwdriver. Both of the bearings are self-aligning, sealed flange mounted, equipped with grease fittings. To access the fitting on the TMC-7 refer to (Figure 4A) . These bearings should be lubricated with Lubriplate No. 630-2, or equivalent bearing grease. Do not over lubricate. Be sure to clean up any excess grease after lubricating the bearings.
  • Page 8 EDCO will not in any event be liable to the user, any successors in interest or any beneficiary or assignee This warranty, does not apply to failure occurring as a...
