MANUAL

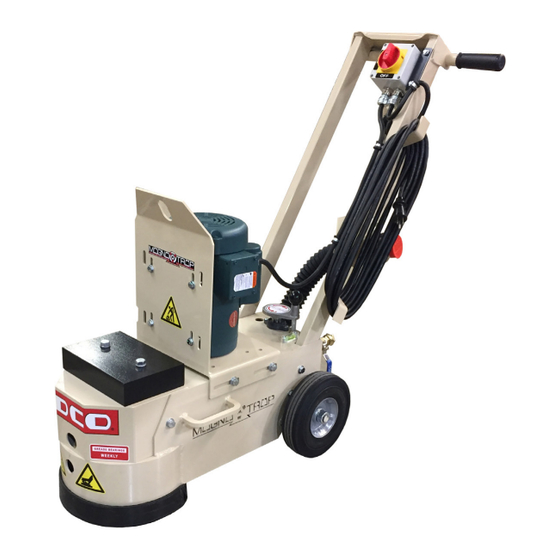

EDCO
Single-Disc
Grinder
Page 1
REVISED STARTING SERIAL # 171210255
50200-HD-12.17

Advertisement

Table of Contents
loading

Summary of Contents for Edco SEC-HD

  • Page 1 Tool Rental Center MANUAL EDCO Single-Disc Grinder Page 1 REVISED STARTING SERIAL # 171210255 50200-HD-12.17...
  • Page 2: Safety Messages And General Instructions

    READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord.
  • Page 3: Table Of Contents

    HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use  genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ...
  • Page 4: Operational Keys

    SINGLE DISC GRINDER MODEL SEC-HD Operational Keys to good machine care and long life... 1. Before each use, check and insure all hardware, nuts, bolts and fittings are tight and not worn or damaged. If damaged or missing hardware is noted, it should be replaced before the machine is put back into service.
  • Page 5: Troubleshooting And Servicing

    TROUBLESHOOTING AND SERVICING System Checklist: AN SEC SINGLE DISC GRINDER Begin with this simple checklist: 1. Is the source power what it should be or is the voltage too high, too low or nonexistent? The Grinder and Other System Components: 2.
  • Page 6: Important Notes

    IMPORTANT NOTES NOTE: This is the lifting bail for this machine. NOTE: Motor overload reset on bottom of box. Page 6...
  • Page 7 IMPORTANT NOTES NOTE: If overload protection on motor trips make sure this switch is in the off position and power cord is dis- connected from power source before resetting. NOTE: Adjust dust skirt so there is 1/8” gap with work surface before use.
  • Page 8: Lubricating Flange Bearings And Attaching A Vacuum

    PROCEDURE FOR LUBRICATING FLANGE BEARINGS To grease the flange bearings attach the grease gun to the grease fittings as shown in the above photos and give only two (2) pumps on the grease gun weekly. If excessive over lubrication is done grease will leak onto the work surface causing possible damage and wasted cleanup time.
  • Page 9: Procedure For Adjusting And Replacing Drive Belt

    PROCEDURE FOR ADJUSTING OR REPLACING DRIVE BELT To adjust the drive belt loosen four (4) bolts securing the motor mount to the frame. Slide the motor mount to the rear of the machine to increase belt tension. Tighten the four (4) bolts loosened earlier maintaining pressure on the motor mount to prevent loosening.
  • Page 10: Operating Controls

    OPERATING CONTROLS PLEASE NOTE: Controls shown are for the model indicated. The location of these controls may vary on the different models. Due to improvements and changes in the equipment, the illustrations shown may vary from the actual machine. ELECTRIC MODEL On/Off Switch Motor Lifting Bail...
  • Page 11: Getting Started

    Getting Started with your New Grinder BEGIN THE LEVELING PROCESS: BEGIN THE LEVELING PROCESS: Check level of the floor. Lower machine to surface and match level. Adjust height by turning leveling handle in the rear. BEGIN THE LEVELING PROCESS: BEGIN THE LEVELING PROCESS: When leveling do not continue to turn handle Replace the skirt leaving approximately 1/8”...
  • Page 12 Getting Started with your New Grinder LEVELING: LEVELING: The bubble on the machine will not necessarily Lean back slightly on the handle to get the tools be centered once optimum operating position is off the surface and start the machine. Lower the achieved.
  • Page 13: Notes

    NOTES                            This page intentionally left blank. Page 13...
  • Page 14: Lllustration 1: Main Grouping

    ILLUSTRATION 1: MAIN GROUPING Page 14...
  • Page 15 WASHER, LOCK 7/16 ZINC 10481 NUT, HEX 7/16-20 ZINC 86903 SPACER, HEAD, 1-5/8”L, SEC-NG 86393 SHAFT, SEC-HD 1”DIA. X 9-11/16”L 86433 HEAD ASSY. (INCLUDES ITEMS 24-26) 10007 PIN, ROLL 3/8 X 2-1/2 19169 DIAMOND DISC, ECONOMY 10” - 20 SEG.
  • Page 16: Illustration 2: Water Valve Grouping

    ILLUSTRATION 2: WATER VALVE GROUPING ITEM # PART # DESCRIPTION QTY. 80021 CONN., SWIVEL FEM. 3/4HOSE X 1/2MPT (INCLUDES HOSE WASHER) 10711 VALVE, BALL 1/2 FPT 50075 BARB, 3/8 HOSE X 1/4MPT (BRASS) 50069 CLAMP, HOSE, SAE #6, ADJ. TO 13/16 86424 HOSE 3/8”ID X 20”L 11562...
  • Page 17: Illustration 3: Head Assembly

    ITEM # PART # DESCRIPTION QTY. 1-13 86433 HEAD ASSEMBLY (INCLUDES ITEMS 1 THRU 13) 86393 SHAFT, SEC-HD 1”DIA. X 9-11/16”L 10063 PIN, ROLL 3/8 X 2 77010 HUB, ALUMINUM 6-HOLE (GRINDER) 10112 RING, RUBBER, 4-1/2”OD X 1/2”THK 77020 RING, HUB CARRIER, 6-HOLE...
  • Page 18: Illustration 4: Motor & Belt Drive Grouping

    ILLUSTRATION 4: MOTOR & BELT DRIVE GROUPING Page 18...
  • Page 19 PARTS LISTING - ILLUSTRATION 4: MOTOR & BELT DRIVE GROUPING ITEM # PART # DESCRIPTION QTY. 16077 MOTOR, 1.5HP-1PH-60HZ-1725RPM-115/230V-13/6.5A LEESON CAT. NO. 113769.00 WATT-SAVER REPLACEMENT PARTS: 16178 ..CAPACITOR, START, LEESON 003025.15 (500MFD 125V) ..CAPACITOR, RUN, LEESON 003014.02 (50MFD 240V) 16174 ..RESET BUTTON, LEESON 300033.02 (CED2705) 16179 86404...
  • Page 20: Illustration 5: Leveling System

    ILLUSTRATION 5: LEVELING SYSTEM GROUPING ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 86905 KNOB, WHEEL HEIGHT CONTROL 10312 WASHER, FLAT 1/2 SAE ZINC 14023 KNOB, BALL 1-3/8 W/ 1/2-13THD, 10407 NUT, HEX LOCK 1/2-13 ZINC 10411 SCREW, SKT.
  • Page 21: Switch Wiring Diagram

    SWITCH WIRING DIAGRAM Page 21...
  • Page 22: Motor Wiring Diagram

    MOTOR WIRING DIAGRAM MOTOR WIRING DIAGRAM LEESON CAT. NO. 113769.00 LEESON CAT. NO. 113769.00 1.5HP 60Hz SINGLE PHASE 1.5HP 60Hz SINGLE PHASE USE CONNECTIONS FOR CLOCK-WISE (C.W.) ROTATION SHOWN BELOW IN CHART USE CONNECTIONS FOR CLOCK-WISE (C.W.) ROTATION SHOWN BELOW IN CHART POWER CORD: BLACK WIRE - L1, WHITE WIRE - L2, GREEN WIRE - GROUND POWER CORD: BLACK WIRE - L1, WHITE WIRE - L2, GREEN WIRE - GROUND LOW VOLT (115V) STANDARD, HIGH VOLT (230V) OPTIONAL...
  • Page 23: Maintenance Schedule

    Maintenance Schedule Read and follow instruc- Repairs are to be done by tions in the motor owner’s authorized EDCO Dealers manual. only. All maintenance to be performed by qualified personnel. Visual Inspection of Entire Machine Check accessories for uneven wear...
  • Page 24 EDCO product group. The information in these tracks help businesses be successful with those products. EDCO is always updating online training / information so you always have the most recent content. Also see Operator’s Safety & Limited Warranty Manual Equipment Development Co., Inc.
