M
AGNA-
SKU #
MODEL #
59800
SECNG-1.5L
59900
SECNG-1.75L/50/1
Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607

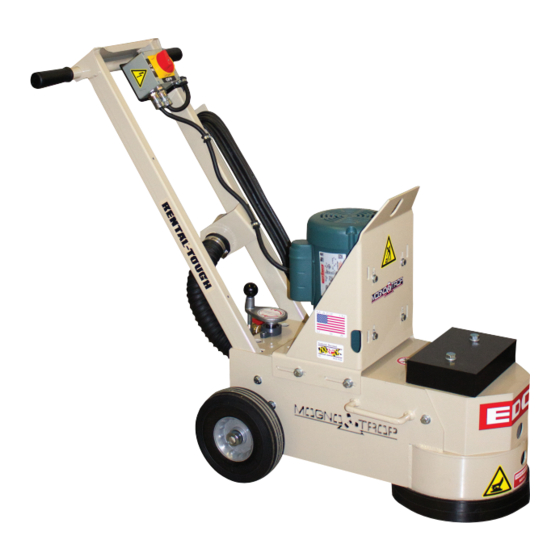

PARTS LIST MANUAL
MODEL SECNG
T
S
RAP™
INGLE-
POWER OPTION
LEESON MOTOR 1.5HP 60Hz 1-PHASE
LEESON MOTOR 1.75HP 50Hz 1-PHASE
EQUIPMENT DEVELOPMENT COMPANY, INC.
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Website: www.edcoinc.com • E-mail: sales@edcoinc.com
™
D
F
G
ISC
LOOR
E-SECNG-PL-1016
REVISED STARTING
SERIAL # 161010019
RINDERS
Printed in USA
©2016
JWA
Page 1
Advertisement
Table of Contents
Related Manuals for Edco SECNG-1.5L
Summary of Contents for Edco SECNG-1.5L
- Page 1 RAP™ INGLE- LOOR RINDERS SKU # MODEL # POWER OPTION 59800 SECNG-1.5L LEESON MOTOR 1.5HP 60Hz 1-PHASE 59900 SECNG-1.75L/50/1 LEESON MOTOR 1.75HP 50Hz 1-PHASE EQUIPMENT DEVELOPMENT COMPANY, INC. Printed in USA 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA ©2016 Phone: 800-638-3326 or 301-663-1600 •...
-
Page 2: Safety Messages And General Instructions
E-SECNG-PL-1016 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord. -
Page 3: Table Of Contents
HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ... -
Page 4: Illustration 1: Main Grouping
E-SECNG-PL-1016 ILLUSTRATION 1: MAIN GROUPING EQUIPMENT DEVELOPMENT COMPANY, INC. Printed in USA 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA ©2016 Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607 Page 4 Website: www.edcoinc.com • E-mail: sales@edcoinc.com... - Page 5 E-SECNG-PL-1016 PARTS LISTING - ILLUSTRATION 1: MAIN GROUPING ITEM # PART # DESCRIPTION QTY. 86901 MAIN FRAME, SEC-NG 86304S HANDLE BAR, SEC 10029 SCREW, CAP 3/8-24 X 1-3/4 10025 WASHER, FLAT 3/8 SAE ZINC 10004 NUT, HEX LOCK 3/8-24 ZINC 10608 GRIP, HAND 1”...
-
Page 6: Illustration 2: Leveling System Grouping
E-SECNG-PL-1016 ILLUSTRATION 2: LEVELING SYSTEM GROUPING ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 86905 KNOB, WHEEL HEIGHT CONTROL 10312 WASHER, FLAT 1/2 SAE ZINC 14023 KNOB, BALL 1-3/8 W/ 1/2-13THD, 10407 NUT, HEX LOCK 1/2-13 ZINC 10411 SCREW, SKT. -
Page 7: Illustration 3: Water Valve & Hose Grouping
E-SECNG-PL-1016 ILLUSTRATION 3: WATER VALVE & HOSE GROUPING ITEM # PART # DESCRIPTION QTY. 80021 CONN., SWIVEL FEM. 3/4HOSE X 1/2MPT 10711 VALVE, BALL 1/2 FPT 50075 BARB, 3/8 HOSE X 1/4MPT (BRASS) 50069 CLAMP, HOSE, SAE #6, ADJ. TO 13/16 86424 HOSE 3/8”ID X 20”L, SEC 11562... -
Page 8: Illustration 4: 10" Magna-Trap™ Disc Assembly
E-SECNG-PL-1016 ILLUSTRATION 4: 10” MAGNA-TRAP™ DISC ASSEMBLY PART # 86391A ™ ITEM # PART # DESCRIPTION QTY. 1-10 86391A 10” MAGNA-TRAP DISC ASSY. W/ HUB (INCLUDES ALL ITEMS 1 THRU 10) 86391 10” MAGNA-TRAP DISC W/ MAGNETS (INCLUDES ITEMS 1A, 1B AND 1C) 36064 MAGNET, NEODYMIUM RING 7/8 X 1/8 10647... -
Page 9: Illustration 5: Optional Diamond Disc Adapter
E-SECNG-PL-1016 ILLUSTRATION 5: OPTIONAL DIAMOND DISC ADAPTER MAGNA-TRAP™ DISC ASSEMBLY 10” BOLT-ON DIAMOND DISC ITEM # PART # DESCRIPTION QTY. 77618 ADAPTER, DIAMOND DISC (INCLUDES ITEM 2) 10855 SCREW, SKT. BUTTON HD 3/8-24 X 1 86108 SCREW, FLAT HD SKT 3/8-24 X 3/4 (NOT INCLUDED) 86391A 10”... -
Page 10: Illustration 6: Motor & Belt Drive Grouping
E-SECNG-PL-1016 ILLUSTRATION 6: MOTOR & BELT DRIVE GROUPING EQUIPMENT DEVELOPMENT COMPANY, INC. Printed in USA 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA ©2016 Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607 Page 10 Website: www.edcoinc.com • E-mail: sales@edcoinc.com... - Page 11 E-SECNG-PL-1016 PARTS LISTING - ILLUSTRATION 6: MOTOR & BELT DRIVE GROUPING ITEM # PART # DESCRIPTION QTY. 16077 MOTOR, 1.5HP-1PH-60HZ-1725RPM-115/230V-13/6.5A LEESON CAT. NO. 113769.00 WATT-SAVER REPLACEMENT PARTS: 16178..CAPACITOR, START, LEESON 003025.15 (500MFD 125V) 16174..CAPACITOR, RUN, LEESON 003014.02 (50MFD 240V) 16179..
-
Page 12: Wiring Diagram For Switch
E-SECNG-PL-1016 WIRING DIAGRAM FOR SWITCH EQUIPMENT DEVELOPMENT COMPANY, INC. Printed in USA 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA ©2016 Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607 Page 12 Website: www.edcoinc.com • E-mail: sales@edcoinc.com... -
Page 13: Wiring Diagram For 60Hz Motor
E-SECNG-PL-1016 WIRING DIAGRAM FOR 60Hz MOTOR LEESON CAT. NO. 113769.00 USE CONNECTIONS FOR CLOCK-WISE (C.W.) ROTATION SHOWN BELOW IN CHART MOTOR CORD: BLACK WIRE - L1, WHITE WIRE - L2, GREEN WIRE - GROUND LOW VOLT (115V) STANDARD, HIGH VOLT (230V) OPTIONAL EQUIPMENT DEVELOPMENT COMPANY, INC. -
Page 14: Wiring Diagram For 50Hz Motor
E-SECNG-PL-1016 WIRING DIAGRAM FOR 50Hz MOTOR LEESON CAT. NO. 117051.00 USE CONNECTIONS FOR CLOCK-WISE (C.W.) ROTATION SHOWN BELOW IN CHART MOTOR CORD: BLACK WIRE - L1, WHITE WIRE - L2, GREEN WIRE - GROUND LOW VOLT (110V) STANDARD, HIGH VOLT (220V) OPTIONAL EQUIPMENT DEVELOPMENT COMPANY, INC. -
Page 15: Decal Sheet
E-SECNG-PL-1016 DECAL SHEET EQUIPMENT DEVELOPMENT COMPANY, INC. Printed in USA 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA ©2016 Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607 Page 15 Website: www.edcoinc.com • E-mail: sales@edcoinc.com... - Page 16 *Seller reserves the right to hold shipments against past due accounts. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been *Seller reserves the right to alter payment terms.
