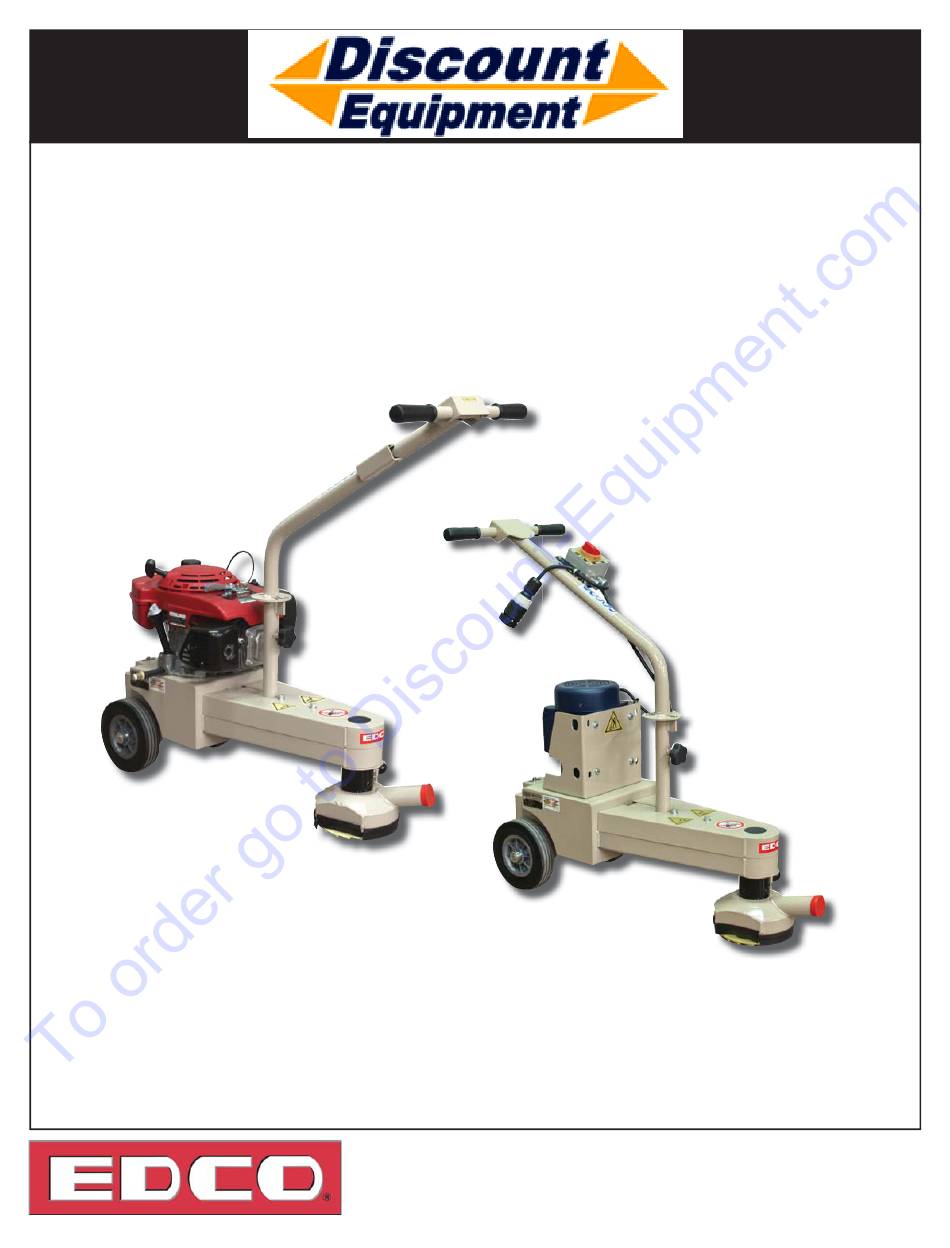

- Page 1 TMC-7-I-0615 E-SPTS-I-0809 Operator’s Instruction Manual TMC-7 EDGE/GRINDER GASOLINE/ELECTRIC EQUIPMENT DEVELOPMENT CO., INC.
- Page 2 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
- Page 3 TMC-7-I-0615 EQUIPMENT DEVELOPMENT CO., INC. READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp the plug, not the cord.
- Page 4 TMC-7-I-0615 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator’s Instruction Manual TMC-7 Table of Contents Specifi cations ........................ 3 How to Order Repair Parts .................... 3 Safety Guideline ......................2, 4 Operating Instructions ....................5 - 7 Maintenance Instructions and Schedule................ 8 SMI Dust and Silica Warning ..................
- Page 5 Hazardous areas should be properly identifi ed and clearly marked. • The TMC-7 is designed to be controlled by a single operator . • Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/ or damage to property can result.

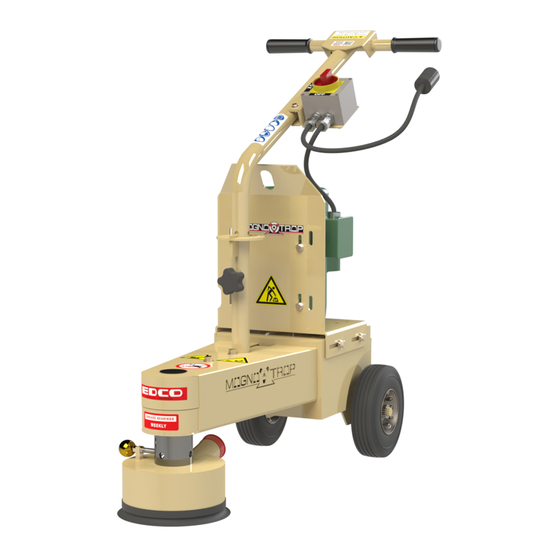

- Page 6 About the TMC-7: • The EDCO edge grinder is designed to be used in conjunction with other EDCO surface preparation products. It’s small, lightweight construction allows the operator to grind close to obstacles. These units are equipped with a single 7” diameter Diamond Segmented Disc that is an aggressive surface material grinder for removing excess concrete, epoxy mortar, urethane coatings and overlays, and non-skid abrasive coatings on steel, concrete, or polymer slab fl...
- Page 7 • The EDCO industrial VAC’s have available optional HEPA fi lter kits designed to be used when removing hazardous materials. Standard, shop-vac style vacuums are not capable of extended operation. In addition, these standard vacs use paper bag fi...
- Page 8 TMC-7-I-0615 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operating Instructions For Edge Grinding • Loosen handle lock knob and lift handle until clear of slots and pivot to desired position. Lock knob. Pull pin in rear deck and turn deck to desired position. Release pin into locking hole.
- Page 9 Always work on a fl at and level surface. • Grease disc bearings every 4 hours of use. To access grease the fi tting on the TMC-7 refer to (Figure 8). These bearings are tapered roller bearings lubricated with High Temp Lubriplate No. 930-AA, or equivalent bearing grease.
- Page 10 TMC-7-I-0615 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SMI Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chem- icals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.
- Page 11 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
