Edco TG-10 Operator's Instruction Manual

Turbo grinder
Hide thumbs Also See for TG-10:

Advertisement

Quick Links

Download this manual See also: Operator's Instruction Manual
E-TG10-I-0808
Operator's Instruction Manual
TG-10
Turbo Grinder
Available in Gasoline, Propane
and Electric Models
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
©2008
Website: www.edcoinc.com
TVW
Page 1
Email: sales@edcoinc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TG-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Edco TG-10

Summary of Contents for Edco TG-10

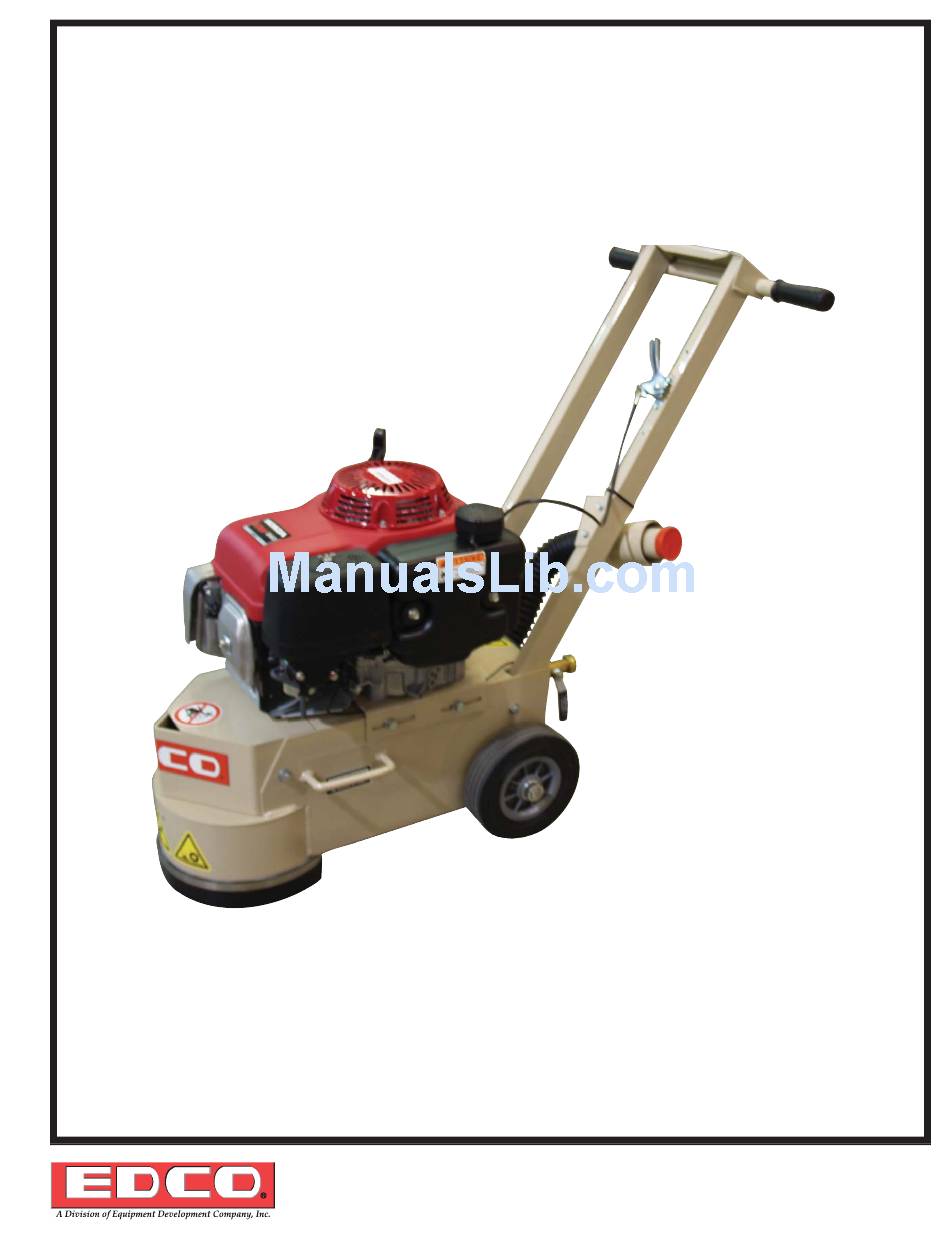

  • Page 1 E-TG10-I-0808 Operator’s Instruction Manual TG-10 Turbo Grinder Available in Gasoline, Propane and Electric Models 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2008 Website: www.edcoinc.com Page 1...

  • Page 2: Safety Information

    E-TG10-I-0808 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY SAFETY MESSAGES the plug, not the cord.

  • Page 3: Table Of Contents

    Figure 1 Dimensions and specifi cations are approximate HOW TO ORDER REPAIR PARTS and subject to change. To insure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equip- Model TG10-5B TG10-11H TG10-11P ment.

  • Page 4: Safety Guidelines

    • The TG-10 Turbo Grinder is to be operated by a properly trained and qualifi ed operator from a position at the rear of the machine.

  • Page 5: Operating Instructions

    • Inspect the work area: Inspect work area carefully before starting to grind. EDCO will not be held responsible for damage to the discs caused by striking protruding slab inserts, nails, screws, pipe extensions, machinery bases, or other objects that transmit sudden shocks.
  • Page 6 Check all connections for tightness and inspect for leaks. If you detect a gas odor, immediately shut off the main fuel valve and consult a qualifi ed LP-gas service person or call EDCO directly. NEVER check for leaks using an open fl...
  • Page 7 Most standard vacuum drum type units use a paper bag fi lter. The dust created during grinding is extremely fi ne and will clog the fi lter bag of these units and eventu- ally damage the vacuums motor. In addition, damage to the TG-10 engine could occur.
  • Page 8 MOTION, do not let the grinder stay in one spot, even for a few seconds, or the surface will be damaged. When grinding is completed, tilt the machine back and shut off the power. • To achieve a smooth “polished” surface, complete the grinding operation with an EDCO dual disc unit using grinding stones or dyma serts. •...

  • Page 9: Maintenance Instructions

    E-TG10-I-0808 Maintenance Follow the engine manufacturer’s guidelines for regular maintenance. Disconnect spark plug lead (Figure 10) before pre- forming any maintenance on this machine! Or on the electric model, unplug the electric cord at the machine (instead of at the wall) to assure the machine will remain un-plugged while you are working on it.
  • Page 10 • Remove belt cover to expose belts. (Figure 13) • Loosen engine/motor mounting bolts (Figure 14) on both sides of the TG-10 and slide engine forward to allow belts to slide off. • Replace worn belts with a complete set of new belts - even if only one belt is showing wear.

  • Page 11: Maintenance Schedule

    E-TG10-I-0808 Read and follow the Repairs are to be done by au- engine manufacturer’s thorized EDCO Dealers only. maintenance schedule. Maintenance Schedule Inspect Entire Machine * Check Oil & Fuel Levels * Check Air Filter (Clean if Necessary) * Inspect Propane...
  • Page 12 *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3.
