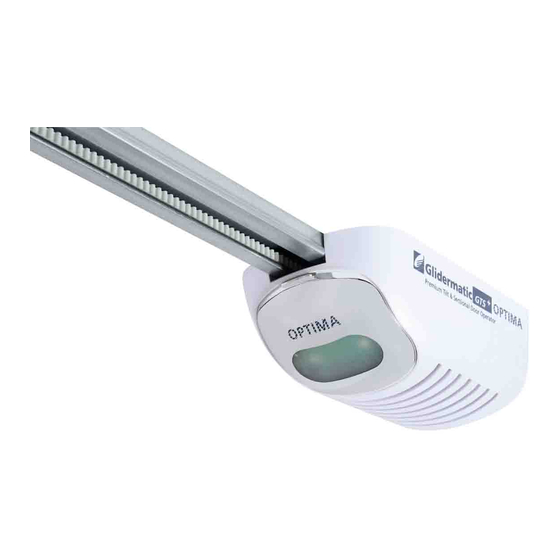

Glidermatic GTS+
Heavy Duty Automatic Tilt and Sectional Door
Operator
Installation Instructions and
Glidermatic GTS+

Owners Manual

Glidermatic GTS+ Installation Instructions & owner's manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glidermatic GTS+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gliderol Glidermatic GTS+

  • Page 1: Owners Manual

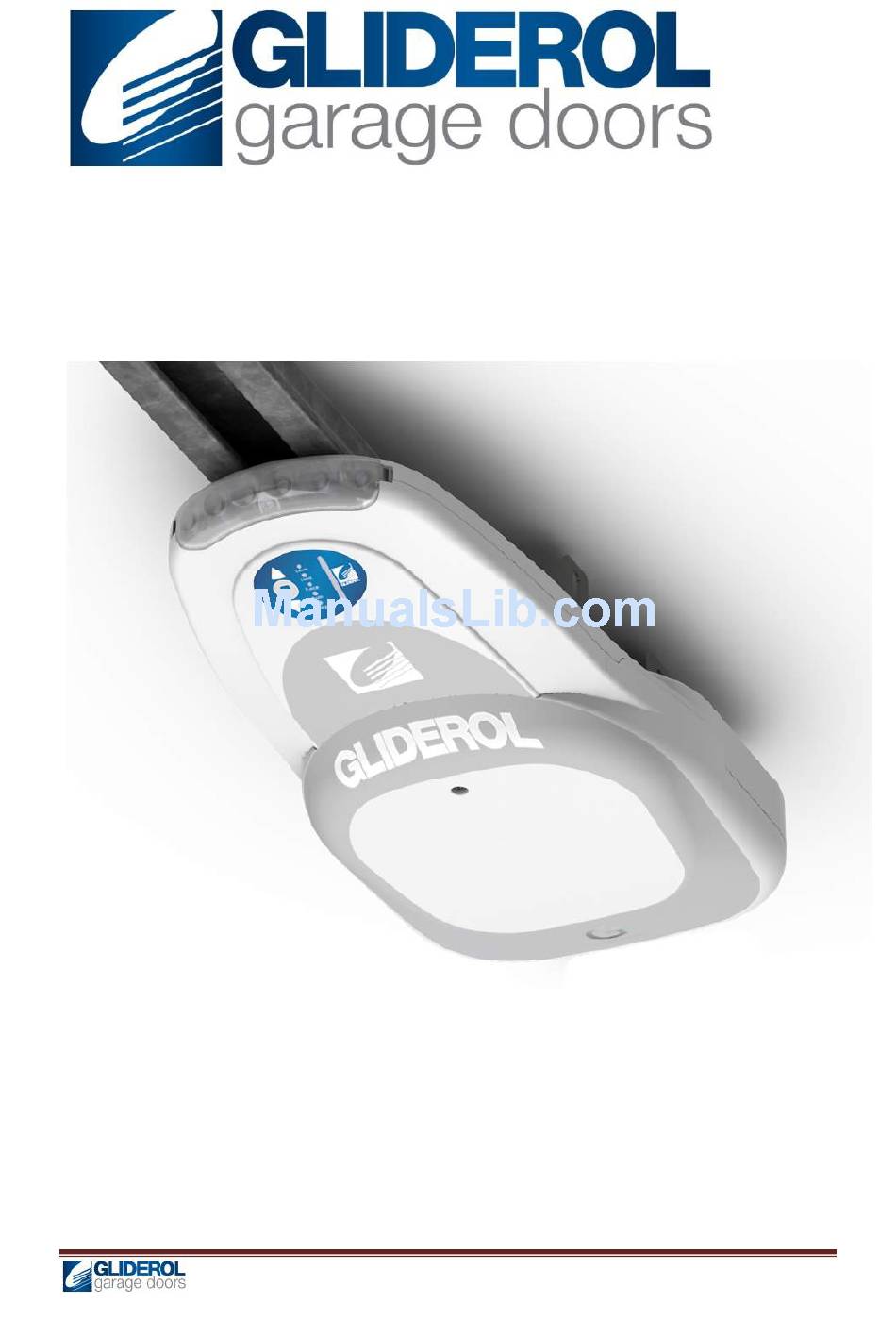

    Glidermatic GTS+ Heavy Duty Automatic Tilt and Sectional Door Operator Installation Instructions and Glidermatic GTS+ Owners Manual Glidermatic GTS+ Installation Instructions & owner’s manual Page 1...
  • Page 2 Glidermatic GTS+ Assembly (Exploded View) Glidermatic GTS+ Installation Instructions & owner’s manual Page 2...
  • Page 3 Stage 1 - Install the Lintel Bracket It is essential the door header be substantial as nearly all the force generated by the opener is concentrated via the header bracket. Determine the centre of the door and continue this vertical line through the header. ...
  • Page 4 Stage 3 - Lock Track to Power Unit Place the 2 x ‘U’ brackets over the track and slot holes into threaded studs.  Place and tighten brackets with M6 nuts provided.  Stage 4 - Attach Track to Lintel Bracket Slot the other end of the track between the flanges of the installed lintel bracket.
  • Page 5 Stage 5 - Attach Bracket and Arms to Carriage Assemble components below to the carriage (attached to the track).  All fasteners provided.  Stage 6 - Measure Height of Ceiling Raise the track and power unit and rest it above the roller tracks. ...
  • Page 6 Stage 7 - Secure the Power Unit Measure height of ceiling to the bottom of the track.  This distance will be required for the length of the ‘L’ brackets.  Cut the ‘L’ brackets to the measured length (as per stage 6). ...
  • Page 7 Bracing if applicable Note: If the bracing is fitted to the top panel where applicable as shown above, make sure the boomerang arm does not touch the bracing during the normal operation of the door, if it does interfere adjust the position of the hinge bracket on the vertical stile to ensure there is no interference.
  • Page 8 PCB Index Motor Connector Hall Connector Transformer Connector Control Panel Connector Wireless Photocell Connector EAS Receiver Connector External Light Connector External I/O Terminal Glidermatic GTS+ Installation Instructions & owner’s manual Page 8...
  • Page 9 User Interface MENU SETTING INDICATOR OPEN / MENU UP STOP / MENU ENTER CLOSE / MENU DOWN Transmitter Coding – By Controller 1. Press and hold [ENTER] for 2 seconds to enter menu selection 2. Using [UP] and [DOWN] to select Learn option, and press [ENTER] 3.
  • Page 10 Transmitter Key Setting 1. Press and hold [ENTER] for 2 seconds to enter menu selection 2. Using [UP] and [DOWN] to select Key option, and press [ENTER] 3. [INDICATOR] will lit to show current key configuration 4. Using [UP] and [DOWN], select the desire transmitter key setting from the below options Single Button Configuration: Any one of the three buttons in the transmitter can be used to control all three functions Stop/Open/Close.
  • Page 11 Limit Setting – By Controller 1. Press and hold [ENTER] for 2 seconds to enter menu selection 2. Using [UP] and [DOWN] to select Limit option, and press and hold [ENTER] until all menu LEDs blink 3. While the menu LEDs blink, proceed to setup the TOP limit, by using transmitter’s OPEN & CLOSE keys, and confirm TOP limit position by pressing STOP key 4.
  • Page 12 Automatic Closing Setting 1. Press and hold [ENTER] for 2 seconds to enter menu selection 2. Using [UP] and [DOWN] to select Auto option, and press [ENTER] 3. [INDICATOR] will lit to show current configuration Note: If Auto Close is enabled it is important to fit an auxiliary safety device like Photo beams to avoid human entrapment or door accidently hitting any object.
  • Page 13 Photo Sensor Connection Diagram External Wall Switch Connection Diagram External Light Connection Diagram (Optional Interface Board Required) Glidermatic GTS+ Installation Instructions & owner’s manual Page 13...
  • Page 14 Technical Specifications: CHARACTERISTICS SYMBOL MIN. TYP. MAX. UNIT Input Voltage System Power Dissipation Transformer Power Transformer Output Voltage 21.6 26.4 Work Voltage of Motor MOTOR Lamp Power LED1~LED6 0.36 Buzzer Voltage Fuse FUSE Carrier Frequency Range Handset 389.9 390.1 Modulation Handset Deviation Handset...
  • Page 15 Plug-in EAS Receiver (Optional) 1. Remove the screw and motor cover 2. Remove the LED lens and two screws 3. Lift up the control panel cover to find the PC board Glidermatic GTS+ Installation Instructions & owner’s manual Page 15...
  • Page 16 4. Plug the EAS receiver into the EAS receiver sockets properly 5. Replace control panel cover, LED lens and motor cover and secure with screws EAS Receiver Index GHI Transmitter Coding 1. Press and hold [1] SW1, until [2] LED blinks twice 2.
  • Page 17 GHI Transmitter Key Setting GHI transmitter operation key can be set using [3] SW2, by referring to the below dip switch configuration table Dip Switch Button 1 Button 2 Button 3 Button 4 Button 5 Shift + Button 1 Shift + Button 2 Shift + Button 3 Shift + Button 4 Shift + Button 5...
  • Page 18 In addition, we offer our Gliderol Warranty as set out below. The benefits given to you by our Gliderol Warranty are in addition to other rights and remedies you may have under the Australian Consumer Law.
  • Page 19 11. To make a claim under our Gliderol Warranty: (a) if you purchased your product directly from Gliderol, you must send your claim to one of the addresses listed at the end of this warranty; or (b) if you purchased your product from an authorised Gliderol Distributor or other non-Gliderol entity, you must make your claim through that authorised Distributor or other non-Gliderol entity.
  • Page 20 NOTE: THIS FORM MUST BE COMPLETED BY THE INSTALLER AND PRODUCED AS PROOF OF PURCHASE DATE WHEN MAKING A SERVICE CALL UNDER WARRANTY, OTHERWISE SUCH CALLS ARE LIABLE TO SERVICE CHARGES. FOR SALES AND SERVICE, CONTACT GLIDEROL INTERNATIONAL PTY LTD ABN 92 007 928 949 Gliderol Garage Doors Head Office...
