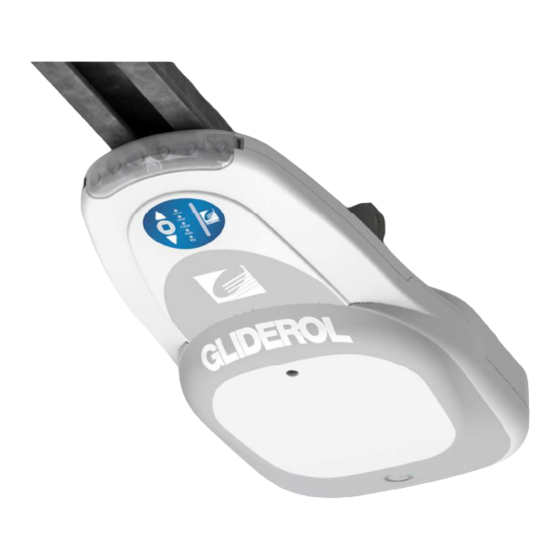

- Page 1 Glidermatic GTS+ Heavy Duty Automatic Tilt and Sectional Door Operator Installation Instructions and Glidermatic GTS+ Owners Manual Glider matic GTS+ Installation Instr uctions & ow ner ’s manual Page 1...
- Page 2 Glidermatic GTS+ Assembly (Exploded View) Glider matic GTS+ Installation Instr uctions & ow ner ’s manual Page 2...
- Page 3 Stage 1 - Install the Lintel Bracket It is essential the door header be substantial as nearly all the force generated by the opener is concentrated via the header bracket. Det ermine t he centre of t he door and continue t his vert ical line through t he header. ...
- Page 4 Stage 3 - Lock Track to Power Unit Place t he 2 x ‘U’ bracket s over t he t rack and slot holes int o threaded st uds. Place and tight en bracket s w ith M 6 nut s provided. Stage 4 - Attach Track to Lintel Bracket ...
- Page 5 Stage 5 - Attach Bracket and Arms to Carriage Assem ble com ponent s below t o t he carriage (at t ached t o t he t rack). All fast eners provided. Stage 6 - Measure Height of Ceiling ...
- Page 6 Stage 7 - Secure the Power Unit M easure height of ceiling t o the bot t om of t he t rack. This dist ance will be required for t he lengt h of the ‘L’ bracket s. ...
- Page 7 Bracing if applicable Not e: If the bracing is fit ted t o t he t op panel w here applicable as show n above, m ake sure t he boom erang arm does not t ouch t he bracing during t he norm al operation of t he door, if it does int erfere adjust t he position of t he hinge bracket on t he vert ical st ile t o ensure t here is no interference.
- Page 8 PCB Index M otor Connect or Hall Connector Transformer Connector Control Panel Connector Wireless Photocell Connector EAS Receiver Connector External Light Connector External I/ O Terminal Glider matic GTS+ Installation Instr uctions & ow ner ’s manual Page 8...
-
Page 9: User Interface
User Interface M ENU SETTING INDICATOR OPEN / M ENU UP STOP / M ENU ENTER CLOSE / M ENU DOWN Transmitter Coding – By Controller 1. Press and hold [ENTER] for 2 seconds t o enter menu selection 2. Using [UP] and [DOWN] to select Learn option, and press [ENTER] 3. - Page 10 Transmitter Key Setting 1. Press and hold [ENTER] for 2 seconds t o enter menu selection 2. Using [UP] and [DOWN] to select Key option, and press [ENTER] 3. [INDICATOR] w ill lit to show current key configuration 4. Using [UP] and [DOWN], select the desire transmitter key setting from the below options Single Button Configuration: Any one of the three buttons in the transmitter can be used t o control all three functions Stop/ Open/ Close.
- Page 11 Limit Setting – By Controller 1. Press and hold [ENTER] for 2 seconds t o enter menu selection 2. Using [UP] and [DOWN] to select Limit option, and press and hold [ENTER] until all menu LEDs blink 3. While the menu LEDs blink, proceed t o setup the TOP limit, by using transmitter’s OPEN & CLOSE keys, and confirm TOP limit position by pressing STOP key 4.
- Page 12 Automatic Closing Setting 1. Press and hold [ENTER] for 2 seconds t o enter menu selection 2. Using [UP] and [DOWN] to select Auto option, and press [ENTER] 3. [INDICATOR] w ill lit to show current configuration Note: If Auto Close is enabled it is important to fit an auxiliary safety device like Photo beams to avoid human entrapment or door accidently hitting any object.
- Page 13 Photo Sensor Connection Diagram External W all Switch Connection Diagram External Light Connection Diagram (Optional Interface Board Required) Glider matic GTS+ Installation Instr uctions & ow ner ’s manual Page 13...
-
Page 14: Technical Specifications
Technical Specifications: CHARACTERISTICS SYM BOL M IN. TYP. M AX. UNIT Input Volt age Syst em Pow er Dissipation Transform er Pow er Transform er Output Volt age 21.6 26.4 Work Volt age of M ot or M OTOR Lam p Pow er LED1~LED6 0.36 Buzzer Volt age... - Page 15 Plug-in EAS Receiver (Optional) 1. Remove the screw and motor cover 2. Remove the LED lens and tw o screw s 3. Lift up the control panel cover to find the PC board Glider matic GTS+ Installation Instr uctions & ow ner ’s manual Page 15...
- Page 16 4. Plug the EAS receiver into the EAS receiver sockets properly 5. Replace control panel cover, LED lens and motor cover and secure w ith screw s EAS Receiver Index GHI Transmitter Coding 1. Press and hold [1] SW1, until [2] LED blinks tw ice 2.
- Page 17 GHI Transmitter Key Setting GHI transmitter operation key can be set using [3] SW 2, by referring to t he below dip sw itch configuration table Dip Switch Button 1 Button 2 Button 3 Button 4 Button 5 Shift + Button 1 Shift + Button 2 Shift + Button 3 Shift + Button 4...
- Page 18 Domestic / Residential use – GTS 2000 & GTS+ - 5 years on m ot or only. 1 year on all com ponents, labour & w orkmanship, if fitt ed by an aut horised Gliderol Distributor or Gliderol Technician. (Excludes bat ter ies, fuses & light s globes, which have no warranty) GTS+ Optima - 5 years on m ot or only.
- Page 19 12. To secur e t o Gliderol t he paym ent of the price the cust omer as owner lessee or t enant of t he premises hereby charges the cust omers inter est in the pr emises wit h t he paym ent of the price.
-
Page 20: Warranty Form
NOTE: THIS FORM M UST BE COM PLETED BY THE INSTALLER AND PRODUCED AS PROOF OF PURCHASE DATE WHEN M AKING A SERVICE CALL UNDER WARRANTY, OTHERWISE SUCH CALLS ARE LIABLE TO SERVICE CHARGES. FOR SALES AND SERVICE, CONTACT GLIDEROL INTERNATIONAL PTY LTD ABN 92 007 928 949 Gliderol Garage Doors Head Office...
