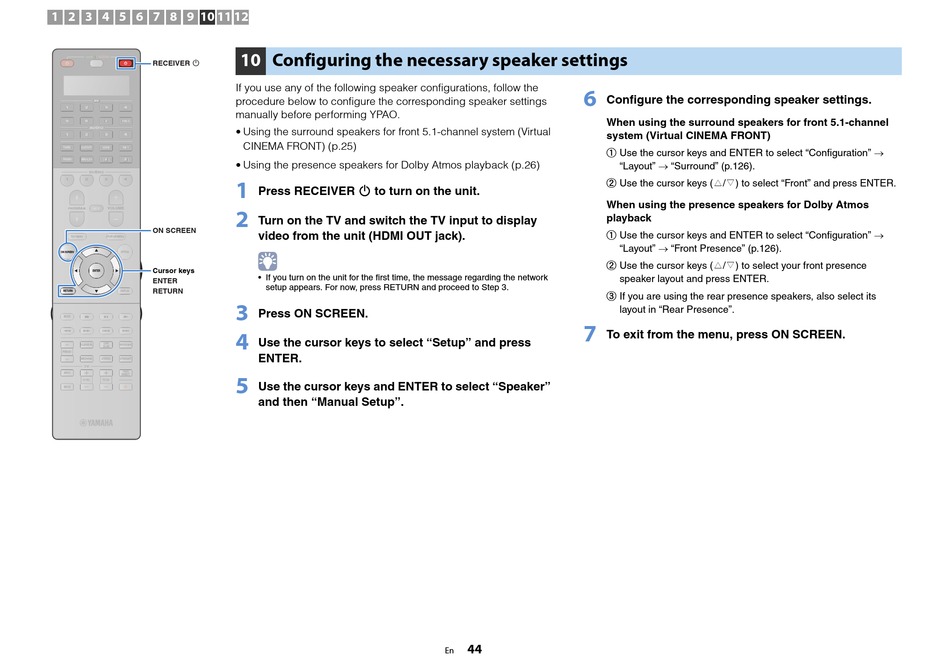

Configuring the necessary speaker settings

If you use any of the following speaker configurations, follow the
procedure below to configure the corresponding speaker settings
manually before performing YPAO.
• Using the surround speakers for front 5.1-channel system (Virtual
CINEMA FRONT) (p.25)
• Using the presence speakers for Dolby Atmos playback (p.26)
1
Press RECEIVER z to turn on the unit.
2
Turn on the TV and switch the TV input to display
video from the unit (HDMI OUT jack).
• If you turn on the unit for the first time, the message regarding the network
setup appears. For now, press RETURN and proceed to Step 3.
3
Press ON SCREEN.
4
Use the cursor keys to select "Setup" and press
ENTER.
5
Use the cursor keys and ENTER to select "Speaker"
and then "Manual Setup".
6
Configure the corresponding speaker settings.
When using the surround speakers for front 5.1-channel
system (Virtual CINEMA FRONT)
a Use the cursor keys and ENTER to select "Configuration" 
"Layout"  "Surround" (p.126).
b Use the cursor keys (q/w) to select "Front" and press ENTER.
When using the presence speakers for Dolby Atmos
playback
a Use the cursor keys and ENTER to select "Configuration" 
"Layout"  "Front Presence" (p.126).
b Use the cursor keys (q/w) to select your front presence
speaker layout and press ENTER.
c If you are using the rear presence speakers, also select its
layout in "Rear Presence".
7
To exit from the menu, press ON SCREEN.
