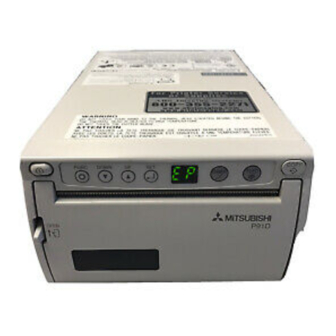

Summary of Contents for Mitsubishi P91DW
Page 1
DIGITAL MONOCHROME PRINTER. DIGITAL MONOCHROME PRINTER This digital monochrome printer complies with the requirements of the EC Directive 89/336/EEC, 73/23/EEC, 93/42/EEC and 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small- scale enterprises, inside as well as outside of the buildings.
Page 2
WARNING: Use the AC power cord recommended as below and a parallel cable (Hewlett Packard C2951A, etc.) so as not to interfere with radio and television reception. If you use other cables, it causes interference with radio and television reception. WARNING: Use the AC power cord according to the recommendations as below, Case 1, 2, 3 and 4;...
Page 3
RISK OF ELECTRIC SHOCK CAUTION: DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
In the interest of safety, please observe the following pre- cautions: POWER REQUIREMENT This Digital monochrome printer is designed for opera- tion on 120/220-240V AC 50/60Hz in U.S.A and Canada, 220-240V AC 50/60Hz in Europe. Never connect to any outlet or power supply having a different voltage or fre- PROTECTIVE MEASURES IF ABNORMALITIES ARISE, .
CONNECTION DEVICES Read thoroughly "Operating Precautions" of the instruc- tion booklets for other devices connected with the Digital monochrome printer. Do not disconnect the power cord during printing. CAUTION ON RELOCATING When transporting this unit, make sure it is not likely to be subjected to impacts.
SAFETY TECHNICAL CHECKS Periods: According to the recommendations of the manufacturer of medical device. Scope: a) Visual check Housing, cables, operator controls, readout device ( displays, LED etc.), labels, accessories, instruction manual. b) Function test Performance check acc. instruction manual, also unity and applicability of set and accessory test. c) Electrical check Safety electrical test of the configuration in accordance with EN60601-1.
3 3 3 3 3 Take the unit out of the box carefully. 4 4 4 4 4 Unwrap the unit. AC power cord Cleaning paper Operation manual Printer driver (1 floppy disk) • Make sure to keep the unit horizontal.
FEATURES AND FUNCTIONS Front Panel 1 2 3 4 5 6 FUNC OPEN Name Power switch FUNC button DOWN button UP button SET button Indicator GAMMA button FEED button COPY button Print exit/Cutter Lever COPY DOWN GAMMA FEED Function Turns on/off the power. Function mode changes whenever FUNC is pressed.
Rear Panel 1 2 3 4 LOCK 1 2 3 4 Name Mode switches PARALLEL data terminal Power terminal (AC LINE) Potential equalization terminal Makes the connected equipment of PARALLEL DATA IN AC LINE POTENTIAL EQUALIZATION TERMINAL This is used to equalize the potential of the equipment connected to this unit.
“OPEN” position. The door opens. 2 2 2 2 2 Load the paper roll. •Place the paper roll in the printer. INCORRECT CORRECT Note: The printing surface is the outside. Place the paper with the thermo- sensitive side (printing side) up.
Page 12
When setting the paper, observe the following precautions to prevent paper jam. Do not use defective paper. Adjust the paper position correctly. Do not slack the roll paper. If the side of the print paper is uneven or the core is sticking out, the amount of paper feeding after printing may vary.
GAMMA buttons will be locked. (The functions will not be available.) Set the switches other than No. 1 to OFF. Installing printer driver Printer driver is required to print the data from a personal computer connected with this printer. The printer driver for Windows...
PRINTING Printing procedure 1 1 1 1 1 Turn on the power. 2 2 2 2 2 Print a picture displayed on the screen. • Print a picture with an application software. The image data is transferred through parallel data interface. Copy printing You can set the number of copies by pressing the COPY button on the front...
Page 15
Precautions on Printing If printing is continued with a very black picture, the printer will become overheated and printing will not be available. " In this case, wait for a while until the unit is cooled down.
ADJUSTMENT OF PRINT PICTURE Selection of Gamma ( ) Curve You can select -curve by pressing the gamma button " ". Each time the button is pressed, the indicator and -curve number is switched. After a -curve number has been selected, press the "SET"...
SETTING OF FUNCTION MODE Select a function mode by pressing the FUNC button. FUNC • Each time the FUNC button is pressed, the mode is switched as shown below. Standby Paper type selection mode Paper saving mode Set condition printing mode Buzzer set mode DOWN GAMMA...
Page 18
Mode to select paper saving mode. : Paper saving mode OFF : Paper saving mode ON Mode to select whether the printer conditions will be printed over the image or not. : The printer conditions are not printed. : The printer conditions are printed.
ERROR DISPLAY When an error in operation occurs, an audible alarm and a visible error is displayed in the LED indicator. Cause/Error display 1 1 1 1 1 [Symptom] No paper • When the paper runs out or the paper is not installed, printing becomes impossible and alarm tone is given.
Page 20
Cause/Error display 4 4 4 4 4 [Symptom] Door error • When the door opens, an alarm tone is given. [Remedy] Close the door. Cause/Error display 5 5 5 5 5 [Symptom] Gear lock error • When the thermal head does not automatically go up after printing, an alarm tone is given.
STATUS AND MODES Set state/Mode Power off Stand-by Print state Copy state -curve set mode ( -curve) Paper type setting mode Paper saving mode Set condition printing mode Buzzer setting mode Error detect state LED display Contents of right Point and side LED display Left right...
USE OF CLEANING PAPER When the thermal head is dirty with dust and perspiration, etc., white spots or stripes may appear on the print. In this case, clean the thermal head in the following procedure BY USING THE SUPPLIED CLEANING PAPER. 1 1 1 1 1 Turn on the power.
Clears sending data to this unit. (Low) Incoming pulse width should be 100 s minimum. Low: Abnormal condition occurs in DP. (e.g. error) PC/DP Unused PC/DP DP : Digital printer PC : Personal computer PARALLEL TERMINAL SIGNAL Pin number Function...
Page 24
• Parallel input connector port Signal allocation (Signal : Nibble) Pin No. Return Signal pin No. HostClk 2 - 9 20 - 27 Unknown PrtClk PtrBusy AckDataReq Xflag HostBusy 16•17 High 19 - 30 Init DataAvail 15• 33 - 35 1284 Active From/To High...
Page 25
• Parallel input connector port Signal allocation (Signal : ECP) Pin No. Return Signal pin No. HostClk DATA1(LSB) DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 DATA8(MSB) PeriphClk PeriphAck AckReverse Xflag HostAck 16•17 High 19 - 30 Reverse Request Periph Request 15• 33 - 35 1284 Active From/To...
MAINTENANCE Turn off the power for maintenance. Wipe off stains of the front panel with a soft cloth. When the panel is heavily stained, wipe of with the cloth moistened with neutral cleanser diluted by water and finish with a dry cloth. When the rubber roller is dirty with dust, etc., a black spot may appear on the print.
Service Department. DO NOT ADJUST ANY CONTROLS NOT DESCRIBED IN THIS OPERATION MANUAL. DO NOT REMOVE THE PROTECTIVE ENCLOSURE OF THIS UNIT. Digital Monochrome Printer P91DW 120V AC, 50/60Hz, 1.4A 220-240V AC, 50/60Hz, 0.8A Parallel data interface (36 pin female type) 1024 x 1024 pixels (Standard) (Max.
Page 28
MITSUBISHI ELECTRONICS AMERICA, INC. 5665 PLAZA DRIVE P.O. BOX 6007 CYPRESS, CA 90630-0007, USA TEL (714)220-2500 Mitsubishi Electric Europe B.V. UK Branch Travellers Lane, Hatfield, Herts. AL10 8XB, England, U.K. Phone (1) 707 276100 German Branch Gothaer Strasse 8, Postfach 1548, 40880 Ratingen 1, Germany...
