Rack and install
18 EMC VNXe2 Series VNXe3200 Installation Guide

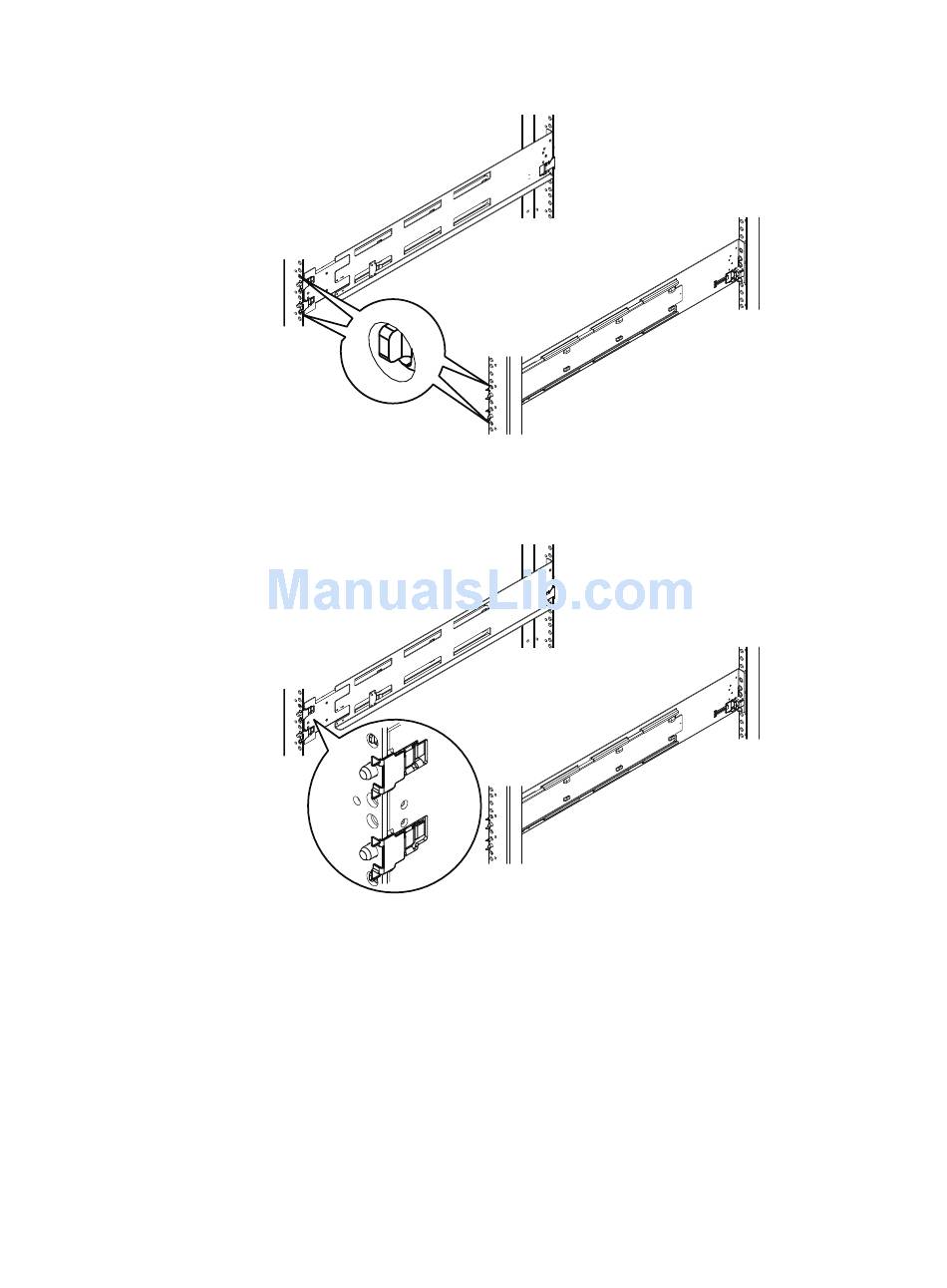

Figure 2 Aligning the Key Tabs
2. Holding the rail extended, push the key tabs and the adaptors into the rear mounting
holes until the spring clips snap into place on the outside of the rear rack channel.
Figure 3 Aligning the Rear Adaptors
3. Pull the rail forward and align the adaptor with the mounting hole on the front rack
channel. Make sure the rail is level.
CL5578
CL5579
