ElectriCinema with IR Remote Control &
Installation Instructions
Thank you for purchasing a Screen Technics Projection Screen, please ensure that you
read the following instructions fully before attempting to install this product.

Before you Install Screen

Once you have unpacked the screen from the box, lay the canister on the ground and
carefully remove the black tape holding the screen surface in place – once the surface is
freed from the canister, take the bottom slat rod, which is taped to the canister, and insert it
into the bottom end corner of the screen until it is all the way inserted into the pocket, as
illustrated below. Then install the screen as described to follow.

Wall Mounting Instructions

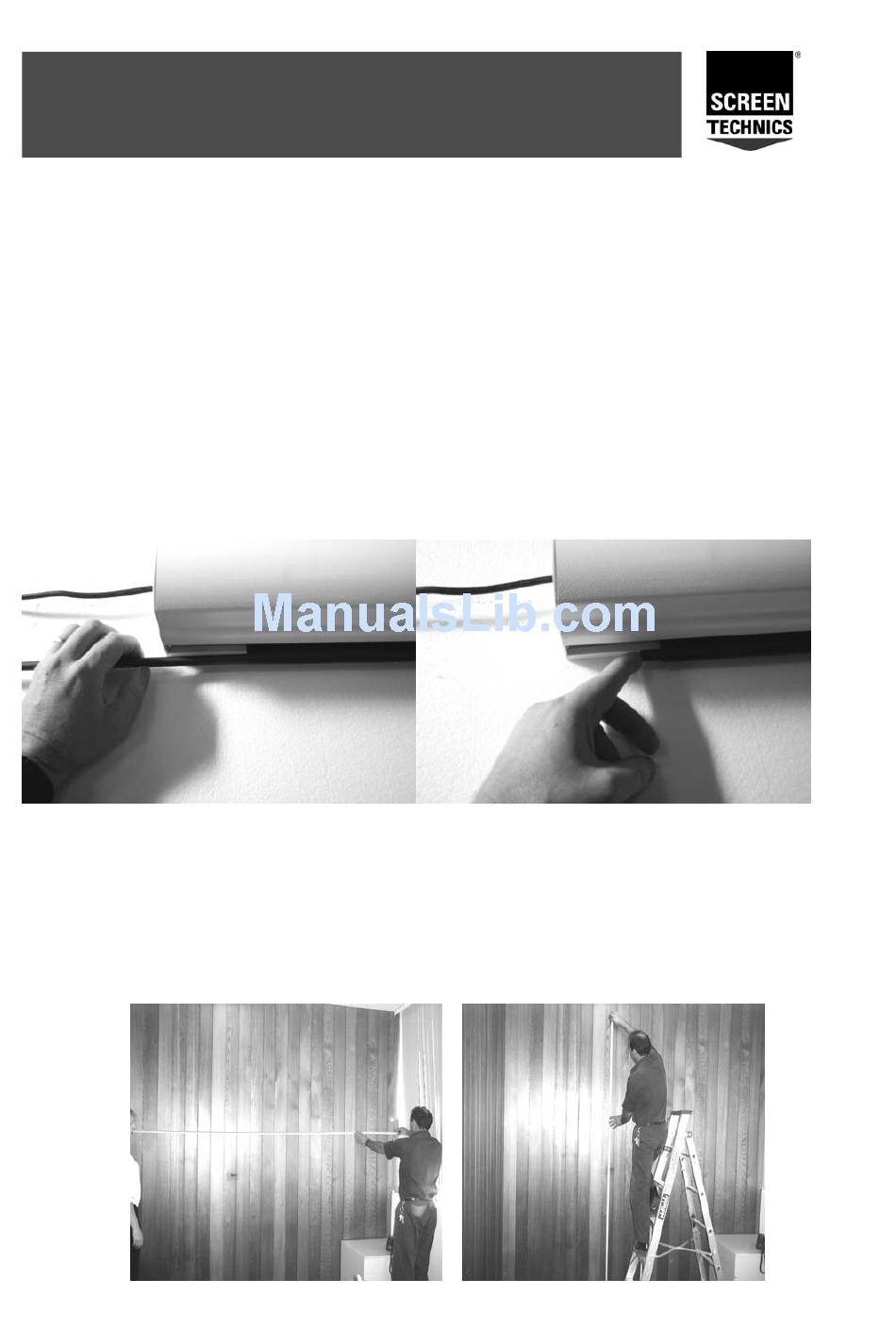

1. Measure the wall where the screen is to be installed and mark with a pencil the
desired height to top of screen case and also the centre of the screen.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ElectriCinema and is the answer not in the manual?

Questions and answers

Related Manuals for Screen Technics ElectriCinema

Summary of Contents for Screen Technics ElectriCinema

  • Page 1 ElectriCinema with IR Remote Control & Installation Instructions Thank you for purchasing a Screen Technics Projection Screen, please ensure that you read the following instructions fully before attempting to install this product. Before you Install Screen Once you have unpacked the screen from the box, lay the canister on the ground and carefully remove the black tape holding the screen surface in place –...
  • Page 2 2. Measure the length of screen canister along the top surface and mark the centre of the canister with a pencil, to assist in lining up the screen when mounting. 3. Determine the best positions for the wall brackets, allowing that in Gyprock or in low strength walls the brackets will be screwed into a timber stud.
  • Page 3 4. You may need to remove the bottom clip in order to screw brackets to wall, please ensure to replace them afterwards. 5. Using two people install the screen by placing the screen canister into the bottom of the bracket clips and pivoting back the canister to slot the top pins into the T channels running along the top of the canister (you may have to remove any tape that is in the way).
  • Page 4 6. Holding screen in position tighten up Allen screw at each end and check that the top pins have hooked into the T section of the screen canister. 7. See Page 5 electrical connection information. Ceiling Mount Instructions Below is a photo showing a side view using the brackets for ceiling fixing, you would follow the instructions for the wall mounting system, with the only difference being the screen is mounted hard against the ceiling.
  • Page 5 Data cable that exits the canister. Please note: It adjust the up and down limit positions on ElectriCinema IR Projection Screens you require an ILT Limit Setting Tool to make adjustments – see price list for details.
