Procussion operation manual
MIDI Controller
(MIDI Keyboard, Sequencer, etc.)
MIDI Out
MIDI In
MIDI
IN OUT
To
Main Outs
Male RCA plug
to
Male Phone plug
Aux. or
Tape In
Home Stereo
System
MIDI In - Procussion is controlled by MIDI messages received at the MIDI
In connector. Any MIDI controller such as a MIDI keyboard, MIDI drum
pads or a computer can be connected.
MIDI Out - The MIDI Out jack is normally used to transmit program data
to a computer or other device.
MIDI Thru - MIDI Thru transmits an exact copy of the messages received
at the MIDI In jack to additional MIDI devices.
Outputs - Procussion has three sets of programmable stereo outputs;
Main, Sub 1, and Sub 2. Specific sounds can be routed to one of these stereo
pairs in order to be further processed or mixed separately.

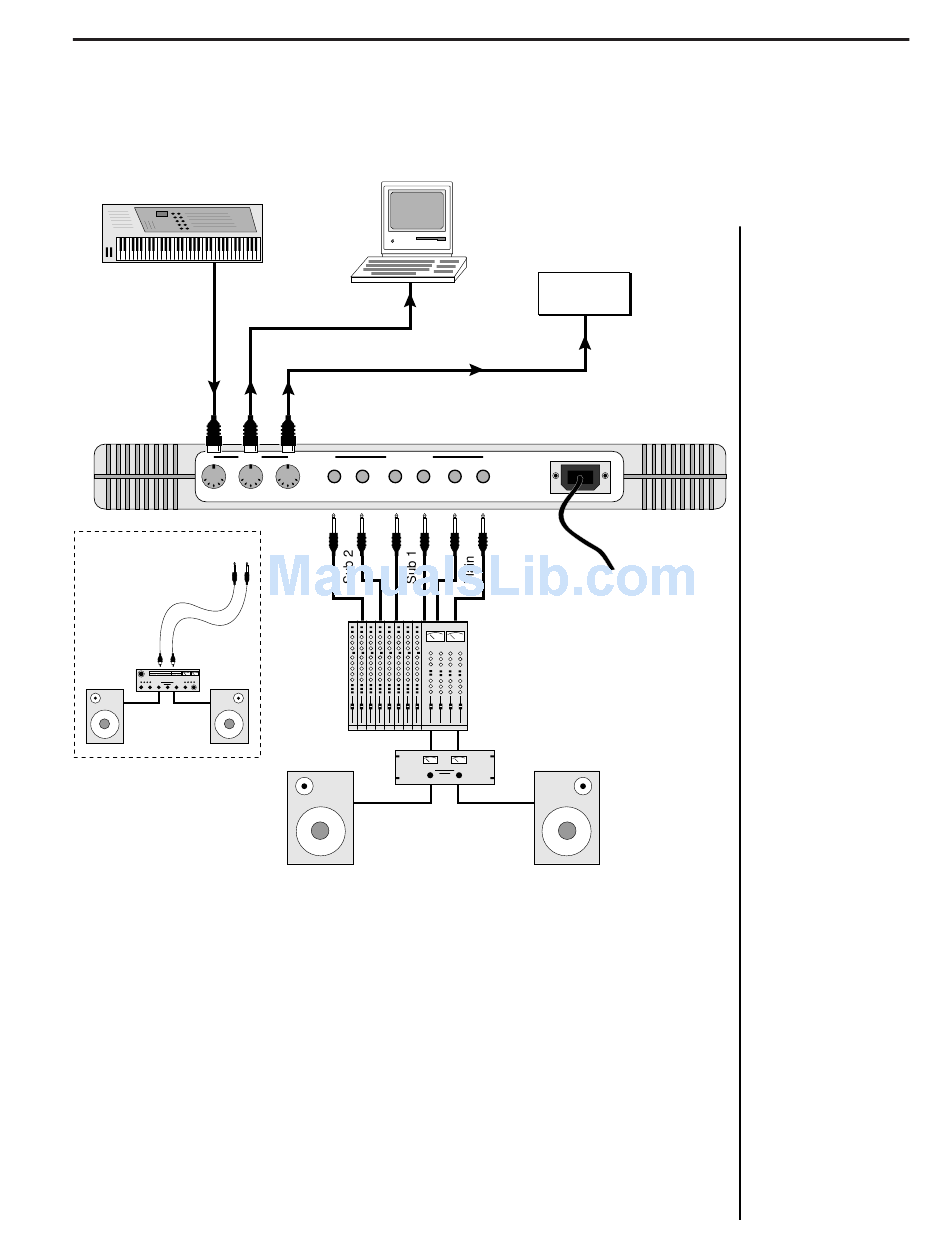

Setup #2
MIDI In
OUTPUTS
MONO
SUB 2 SUB 1
THRU
R L R L R
OR
Connection Instructions - Keyboard Setup

KEYBOARD SETUP

Computer
Additional
MIDI
Devices
MIDI In
POWER
STEREO
MAIN
L
9
