Procussion operation manual
MIDI Out
MIDI In
MIDI
IN OUT
Sub Output
Return
(To Main Output)
Tip Ring
To Effect From Effect
SEND/RETURN CABLES
MIDI In - Procussion is controlled by MIDI messages received at the MIDI
In connector. Connect the MIDI In of Procussion to the MIDI Out connec-
tor of a MIDI controller such as a MIDI percussion controller, or MIDI
keyboard.
MIDI Thru - The MIDI Thru jack is used to connect additional MIDI
devices onto the MIDI chain. MIDI Thru transmits an exact copy of the
messages received at the MIDI In jack.
Outputs - Each of the Sub 1 and Sub 2 output jacks on the Procussion are
stereo jacks. The tip of each jack (accessed when a standard phone plug is
inserted) connects to the left or right output of that group. If a stereo plug
is inserted, the Ring of the stereo plug serves as a signal Return which
sums into the Main outputs. See page 13 for additional details.

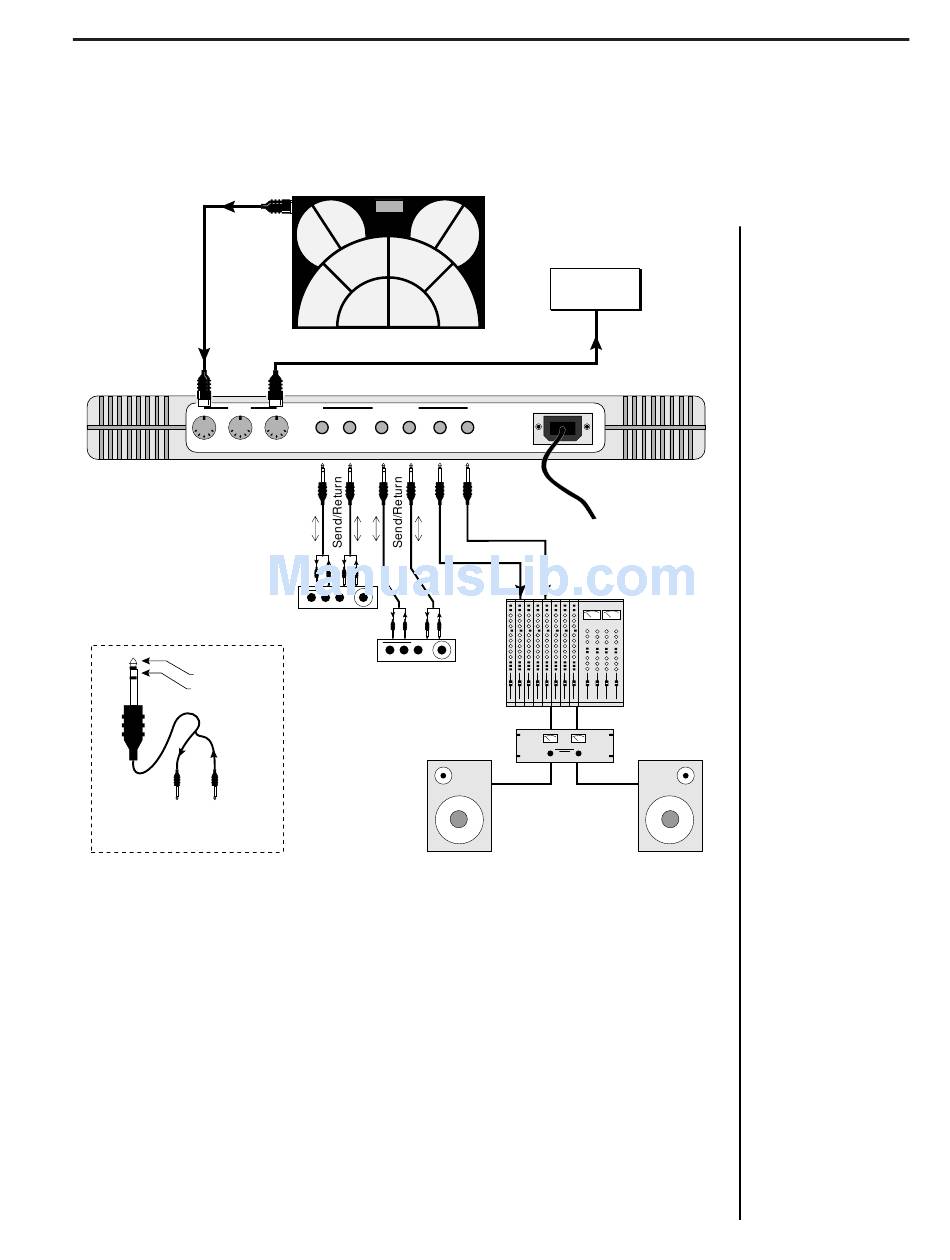

SETUP #3 LIVE PERFORMANCE SETUP
MIDI Controller
(MIDI Drum Pads, Keyboard, etc.)
drumKAT
OUTPUTS
MONO
SUB 2 SUB 1
THRU
R L R L R
Effect Device
Effect Device
Connection Instructions- Performance Setup
Additional
MIDI
Devices
MIDI In
POWER
STEREO
MAIN
L
Main Outputs
11
