Connection Instructions; Basic Pad Setup - EMU procussion Operation Manual

Procussion operation manual
MIDI Controller
(MIDI Drum Pads, Keyboard, Sequencer, etc.)
MIDI Out
MIDI
IN OUT
Male RCA plug
to
Male Phone plug
Aux. or
Tape In
Home Stereo
System

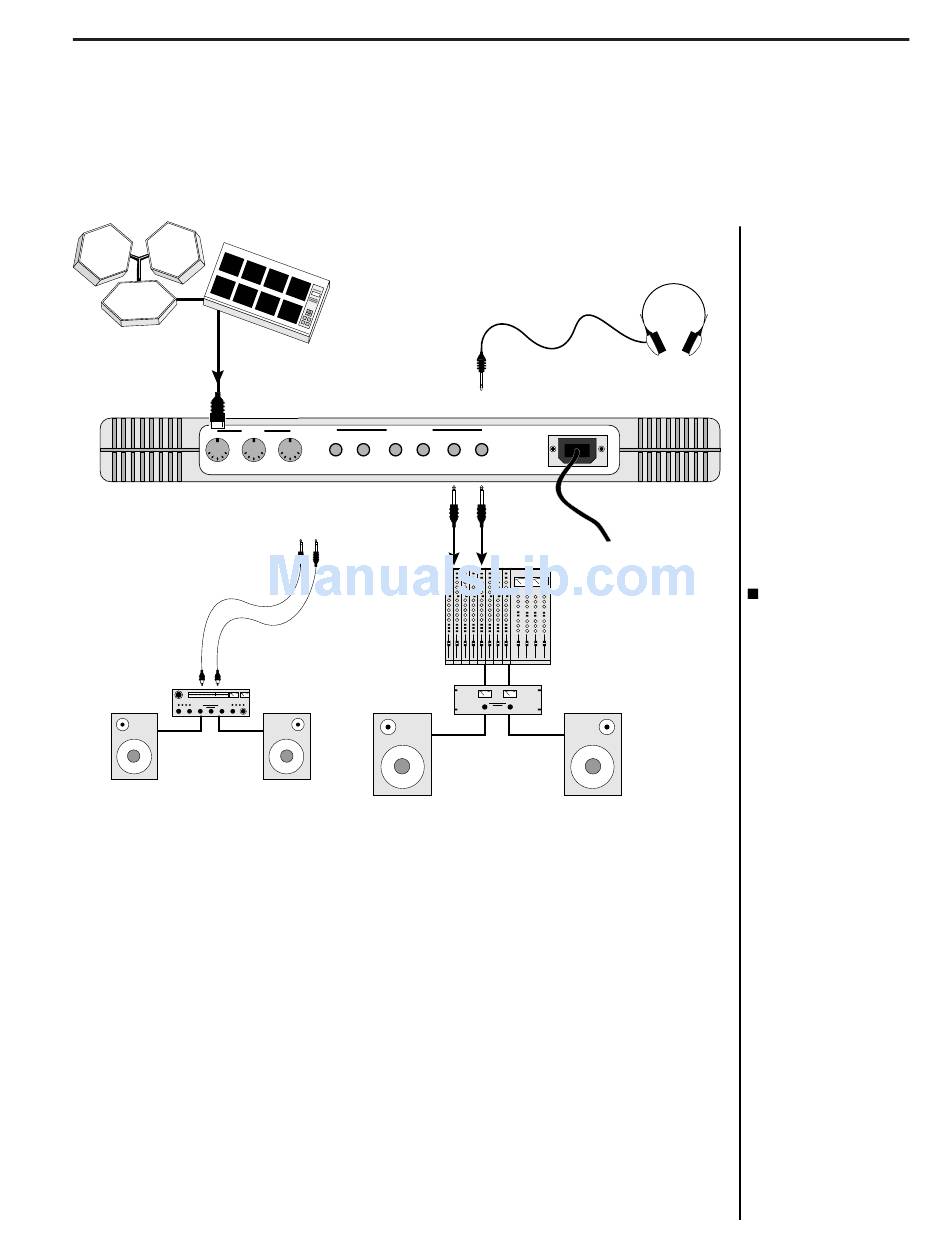

This diagram shows a typical equipment setup for the Procussion.
MIDI In - Procussion is controlled by MIDI messages received at the MIDI
In connector. Connect the MIDI In of the Procussion to the MIDI Out
connector of a MIDI controller such as a MIDI keyboard, MIDI Drum Pads
or MIDI sequencer.
Outputs - Procussion is a high quality, stereo audio device. In order to
reproduce its wide dynamic range and frequency response, use a high
quality amplification and speaker system such as a keyboard amplifier or
home stereo system. A stereo setup is highly desirable because of the
added realism of stereophonic sound. Headphones can be used if an
amplifier and speaker system is not available. Plug stereo headphones
into the Left Main output jack. The Right Main output jack serves as a
mono output when the left jack is not plugged in.

CONNECTION INSTRUCTIONS

OUTPUTS
MONO
SUB 2 SUB 1
THRU
R L R L R
To
Main Outs
OR
Amp
Home Studio
Connection Instructions - Basic Setup
Setup #1

BASIC PAD SETUP

Use the Left Main Output
for Stereophones
POWER
STEREO
MAIN
L
Mixer
Speakers
System
7
If Procussion does not
seem to be responding
correctly, make sure
that both Procussion
and your MIDI Control-
ler are set to the same
MIDI channel.
