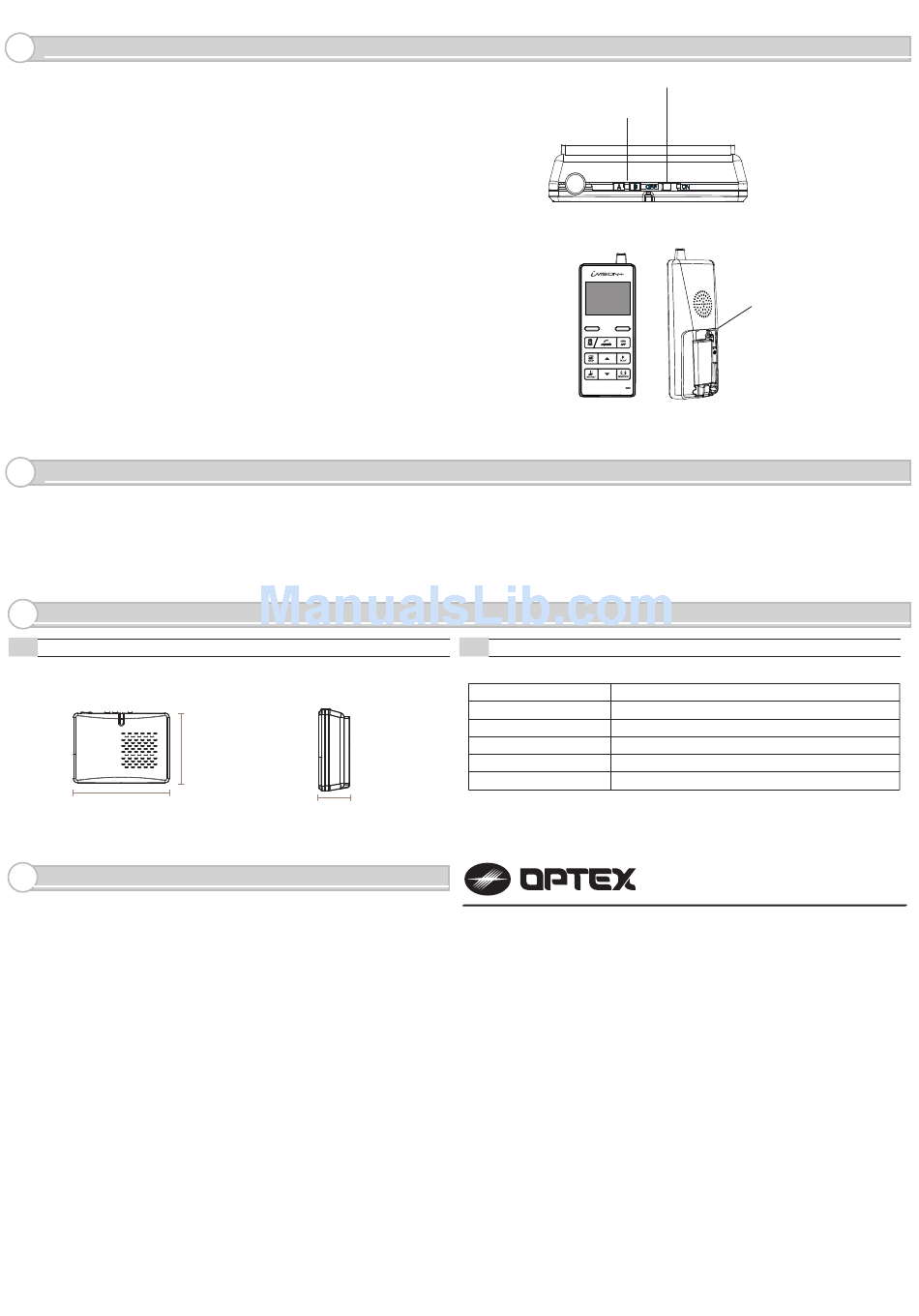

Optex iVISION+ IVP-GU Installation Instructions page 2

6.
PAIRING WITH OTHER iVISION+ DEVICES
One iVISION+ system can host up to 2 units of Gateway Chime Unit (IVP-GU).
NOTE: One Handheld Monitor Unit (IVP-HU) must be configured to have
a HOME ID* prior to paring up with other iVISION+ devices. For setting up
1
a new HOME ID, please refer to the Installation Instructions of IVP-HU.
A Handheld Monitor Unit bundled with Door Camera Unit (IVP-DU) already has
a HOME ID set up and paired up to each other.
While the IVP-GU is in a factory default setting,
the unit has not been assigned to a HOME ID. When powering the unit,
green and red LED will flash with beep sound to indicate its paring mode.
Please proceed to (2).
(1) Entering Pairing mode of a Gateway Chime Unit (IVP-GU).
An IVP-GU is already set in a "Pairing mode" at the factory default setting.
To change IVP-GU into the "Pairing mode", press down both A and B buttons
and hold until LED will brink in green and red.
(2) Prepare Handheld Monitor Unit (IVP-HU) for assigning a HOME ID for IVP-GU.
Press "Paring Button" on the back of an IVP-HU and choose "SCAN" by clicking
"left function key" on the IVP-HU. The IVP-HU starts scanning for a new device.
(3) Confirming IVP-GU with a HOME ID.
When IVP-GU is assigned a new HOME ID, beeping stops and LED stops flashing to
indicate the normal operation mode.
7.
ADDITIONAL SETTING
To change a chime volume of IVP-GU
– Press button A to acknowledge current chime volume level. Press A button again to
change volume level to the next. The volume changes within 4 levels and the lowest
volume will follow the loudest. Leave the setting at the desirable volume level.
To completely turn off the chime, set Sound ON/OFF Switch to OFF.
8.
SPECIFICATION
8-1
Dimensions
110mm / 4.33"
9.
WARRANTY
1. This product is under a warranty for a normal usage for 18 months from the date
of manufacturing. The date of manufacturing can be identified from a LOT number
indicated on a label placed in a back of IVP-GU.
LOT: YYWWZ (e.g. LOT 1350Z)
YY indicates last two digits of the year manufactured (e.g. "13" = Year 2013)
WW indicates Xth week of the year manufactured
2. The warranty may not be applicable when any of following circumstances is found.
- Mechanical or electrical modification is made to the product and the good's
appearance indicates an alterations or a significant damage.
- The product is already been diagnosed by someone other than the manufacturer.
- Product malfunction is resulting from an improper usage, an accident,
natural disaster or any environmental event.
- Please call our technical assistance before arranging a return.
(... continues onto the other side)
80mm / 3.15"
30.3mm / 1.2"
(e.g. "50" = 50th week)
Pairing button A & B
* 1 HOME ID is an unique identification number for your iVISION+ system.
Handheld Monitor Unit (IVP-HU)
8-2
Specification Table
MODEL NAME: OPTEX iVISION+ (IVP-GU) Gateway Chime Unit
Operating Temperature 0 to 40 degC (32 to 104 degF)
Operating Humidity < 90% RH (no condensation)
Dust/Water Protection
N/A (Indoor Use Only)
Radiowave Frequency
2.4 GHz and 418MHz
Power AC/DC 10-24V 3W(max)
Relay Output 1C 50VAC/24VDC 1A max
OPTEX INC. (U.S.)
URL: http://www.optexamerica.com/
OPTEX DO BRASIL LTDA. (Brazil)
URL: http://www.optex.net/br/es/sec/
OPTEX (EUROPE) LTD. / EMEA HQ (U.K.)
URL: http://www.optexeurope.com/
Sound ON/OFF Switch
This switch is for turning
ON/OFF a speaker.
The Gateway Chime Unit operates regardless of
the switch setting while power is being supplied.
Pairing button
OPTEX CO., LTD. (JAPAN)
URL: http://www.optex.net/
5923260
REV 1.00
