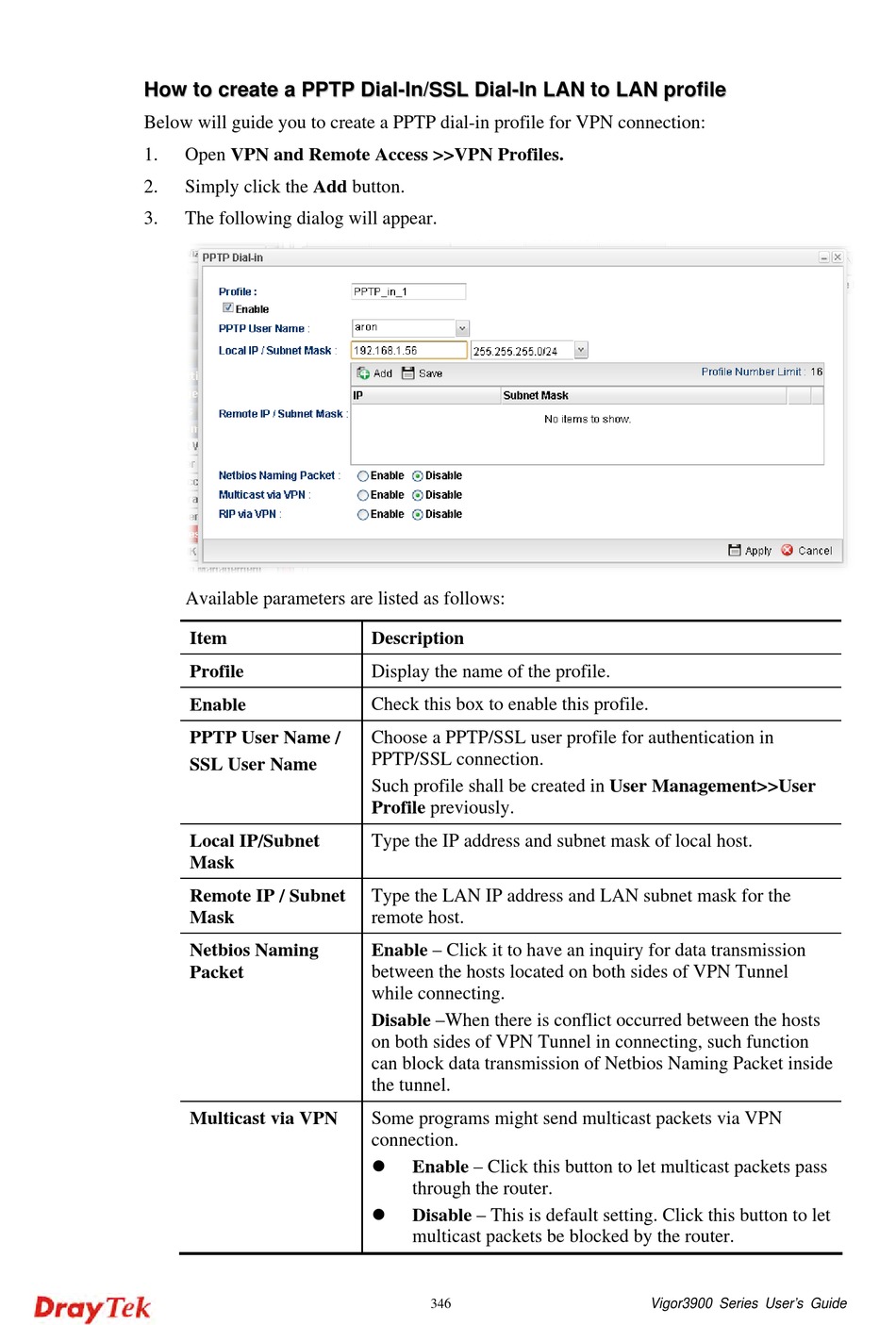

H o w t o c r e a t e a P
H o w t o c r e a t e a P
Below will guide you to create a PPTP dial-in profile for VPN connection:
1. Open VPN and Remote Access >>VPN Profiles.
2. Simply click the Add button.
3. The following dialog will appear.
Available parameters are listed as follows:
Item
Profile
Enable
PPTP User Name /
SSL User Name
Local IP/Subnet
Mask
Remote IP / Subnet
Mask
Netbios Naming
Packet
Multicast via VPN
P T P D i a l - I n / S S L D
P T P D i a l - I n / S S L D
Description
Display the name of the profile.
Check this box to enable this profile.
Choose a PPTP/SSL user profile for authentication in
PPTP/SSL connection.
Such profile shall be created in User Management>>User
Profile previously.
Type the IP address and subnet mask of local host.
Type the LAN IP address and LAN subnet mask for the
remote host.
Enable – Click it to have an inquiry for data transmission
between the hosts located on both sides of VPN Tunnel
while connecting.
Disable –When there is conflict occurred between the hosts
on both sides of VPN Tunnel in connecting, such function
can block data transmission of Netbios Naming Packet inside
the tunnel.
Some programs might send multicast packets via VPN
connection.

Enable – Click this button to let multicast packets pass
through the router.

Disable – This is default setting. Click this button to let
multicast packets be blocked by the router.
346
i a l - I n L A N t o L A N
i a l - I n L A N t o L A N
Vigor3900 Series User's Guide
