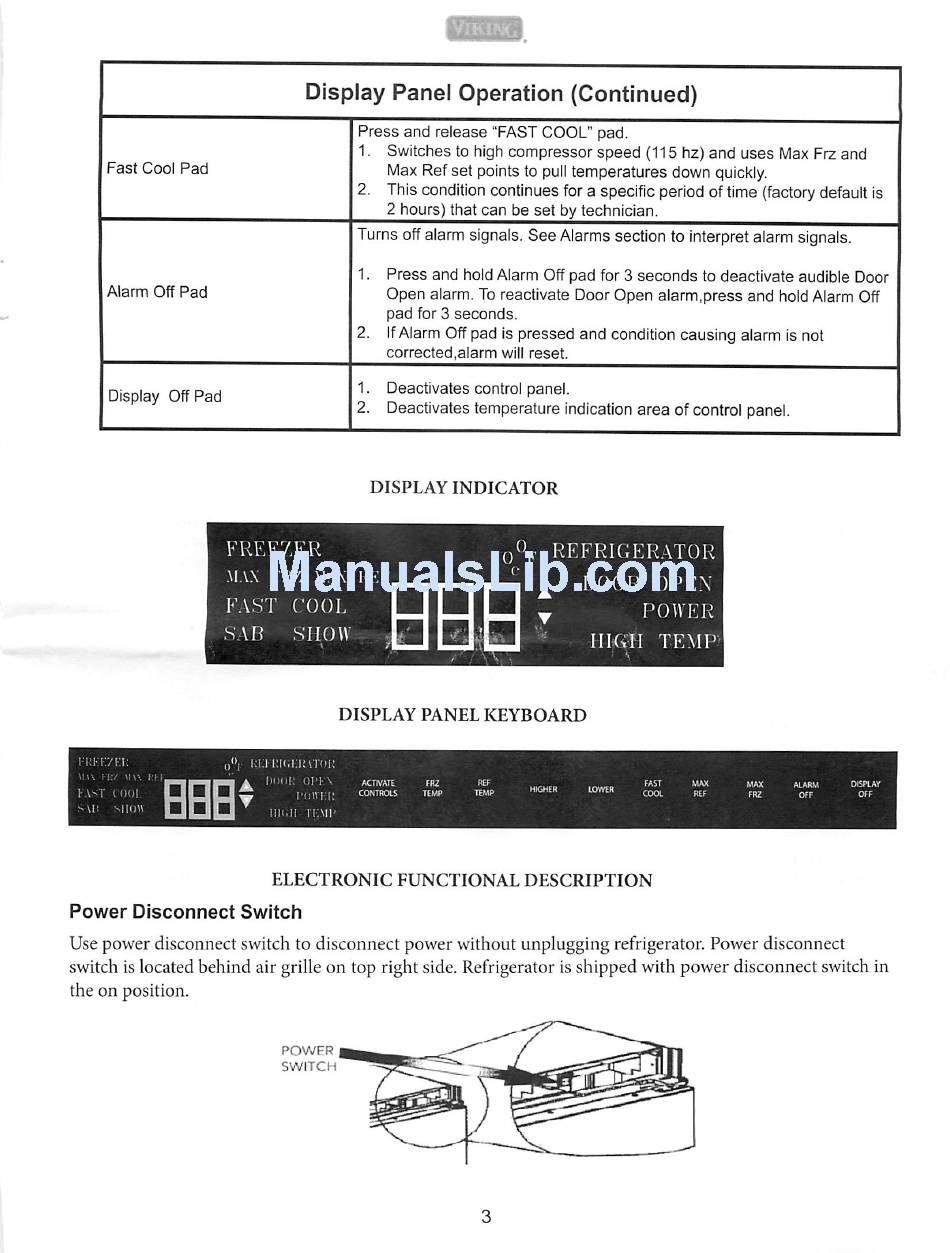

Display Panel Operation (Continued)
Fast Cool Pad
Press and release "FAST COOL" pad.
1. Switches to high compressor speed (115 hz) and uses Max Frz and
Max Ref set points to pull temperatures down quickly.
2. This condition continues for a specificperiod of time (factory default is
2 hours) that can be set by technician.
Alarm Off Pad
Turns off alarm signals. See Alarms section to interpret alarm signals.
1.
Press and hold Alarm Off pad for 3 seconds to deactivate audible Door
Open alarm. To reactivate Door Open alarm,press and hold Alarm Off
pad for 3 seconds.
2. IfAlarm Offpad is pressed and condition causing alarm is not
corrected,alarm will reset.
Display Off Pad
1.
Deactivates control panel.
2. Deactivates temperature indication area of control panel.
DISPLAY INDICATOR
FREEZER
MAX FRZ MAX REF
FAST COOL
SAB
SHOW
-
0°F REFRIGERATOR
DOOR OPEN
POWER
HIGH
TEMP
•JETS
BBB*
DISPLAY PANEL KEYBOARD
DOOR Ol'l \
I'owki;
ACTIVATE
CONTROLS
ELECTRONIC FUNCTIONAL DESCRIPTION
Power Disconnect Switch
Use power disconnect switch to disconnect power without unplugging refrigerator. Power disconnect
switch is locatedbehind air grille on top right side. Refrigerator is shipped with power disconnect switch in
the on position.
POWER
SWITCH
