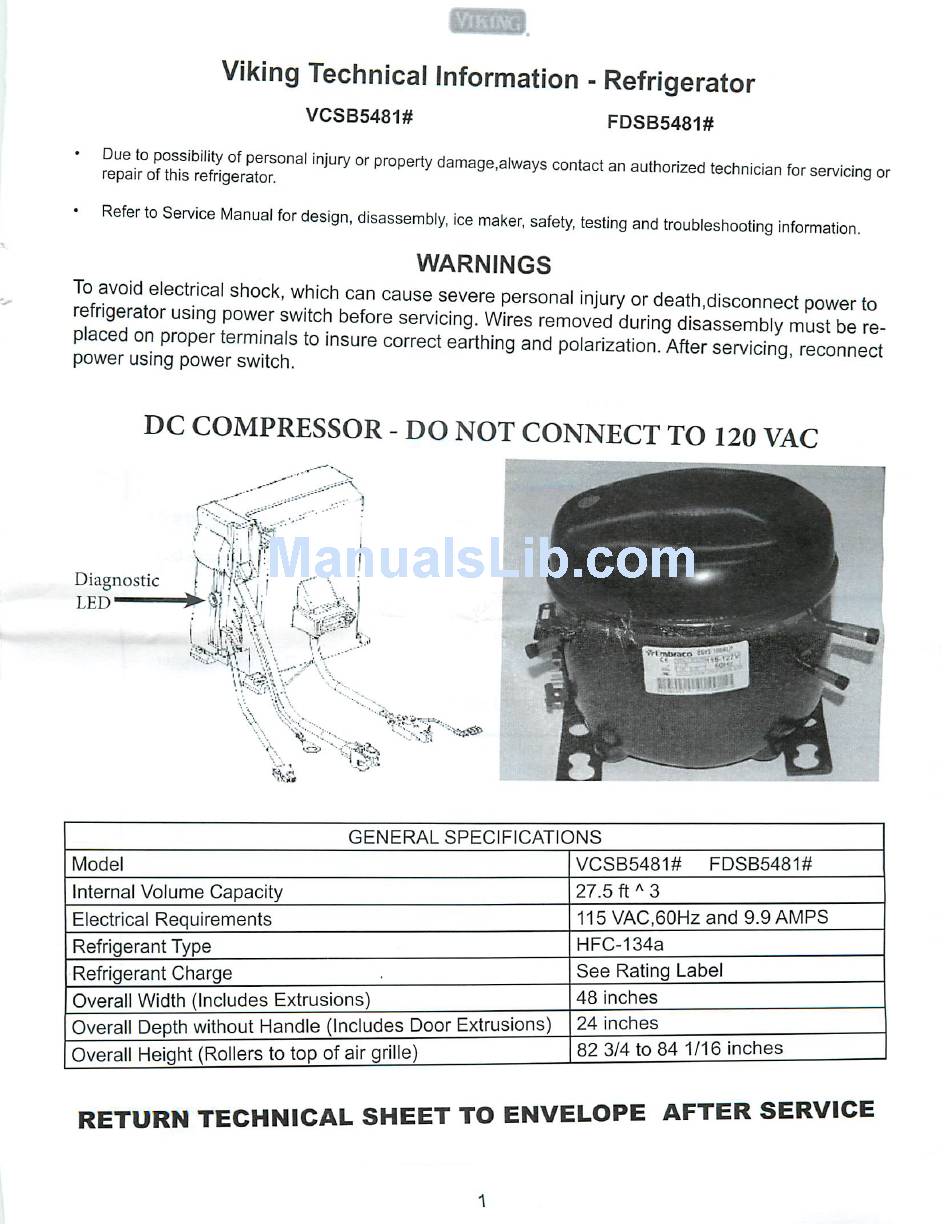

Viking Technical Information - Refrigerator
VCSB5481#
FDSB5481#
' I^EKST"- "^ °r Pr°Perty dam^e.always contact an authorized technician for servicing or
• Refer to Service Manual for design, disassembly, ice maker, safety, testing and troubleshooting information.
WARNINGS
SHnVp°^neCtriCal Sh°Ck' Whi' h Can C3USe S6Vere personal irW or death.disconnect power to
refrigerator using power swttch before servicing. Wires removed during disassembly must be re
placed on proper terminals to insure correct earthing and polarization. After servicing reconnect
power using power switch.
a lcl'ullne"
DC COMPRESSOR - DO NOT CONNECT TO 120 VAC
->-;-'\
Diagnostic
|W j <"\ j
LED
W»Nj LOU
GENERAL SPECIFICATIONS
Model
VCSB5481#
FDSB5481#
Internal Volume Capacity
27.5 ft A 3
Electrical Requirements
115 VAC,60Hz and 9.9 AMPS
Refrigerant Type
HFC-134a
Refrigerant Charge
See Rating Label
Overall Width (Includes Extrusions)
48 inches
Overall Depth without Handle (Includes Door Extrusions)
24 inches
Overall Height (Rollers to top of air grille)
82 3/4 to 84 1/16 inches
RETURN TECHNICAL SHEET TO ENVELOPE AFTER SERVICE
