13.0 Appliance Controls

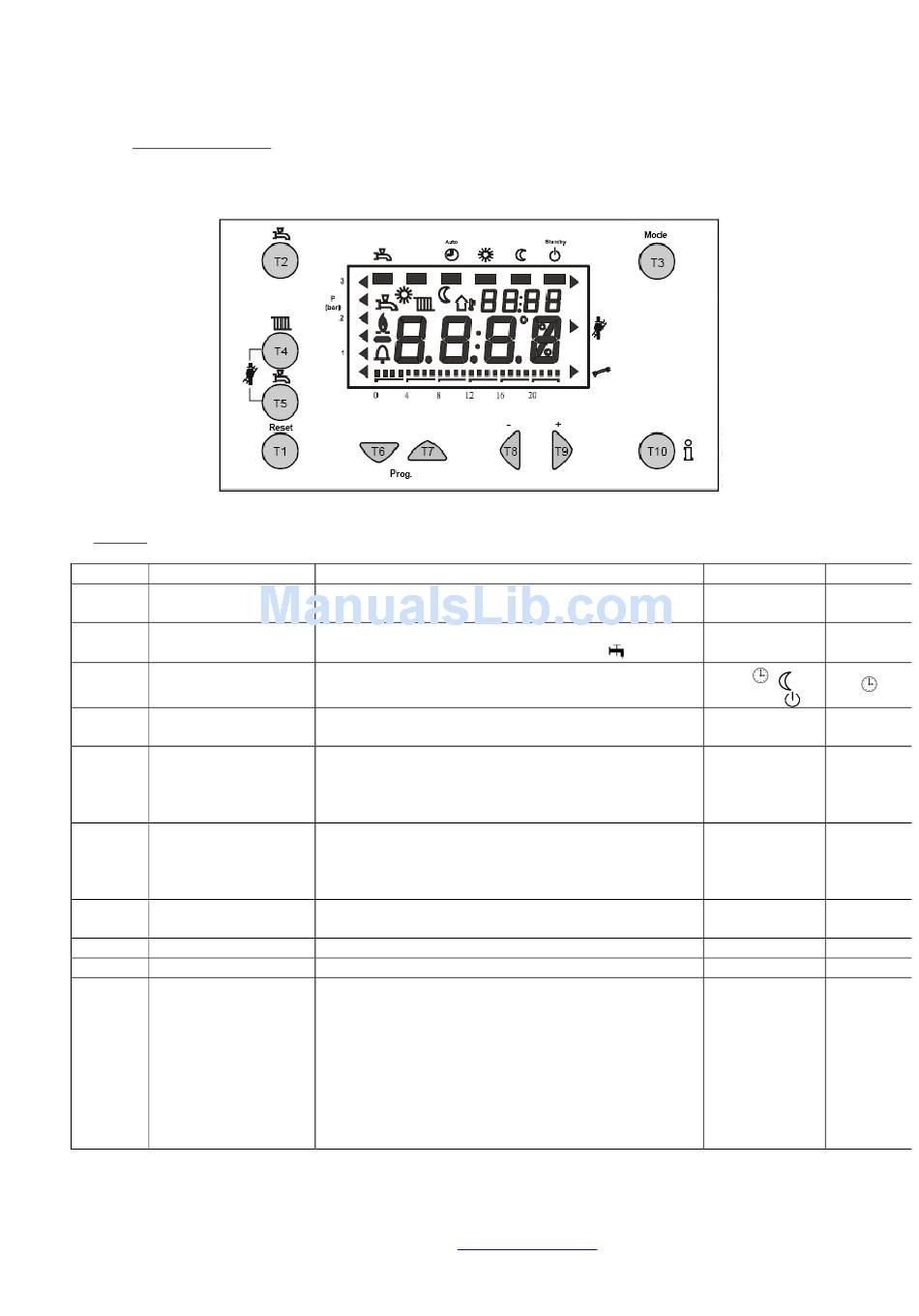

All appliance operational mode adjustments and settings are undertaken via the unit control fascia
Legend
Button Label
T1 RESET
T2 HOT WATER (HWS)
T3 MODE
T4 HWS SETPOINT
HEATING CIRCUIT
FLOW
T5
TEMPERATURE
SETPOINT
T6 PROGRAM DOWN
T7 PROGRAM UP
T8 PROGRAM + PLUS
T9 PROGRAM – MINUS
T10 INFORMATION
