MHG Heating ProCon 16 Installation And Operating Manual page 9

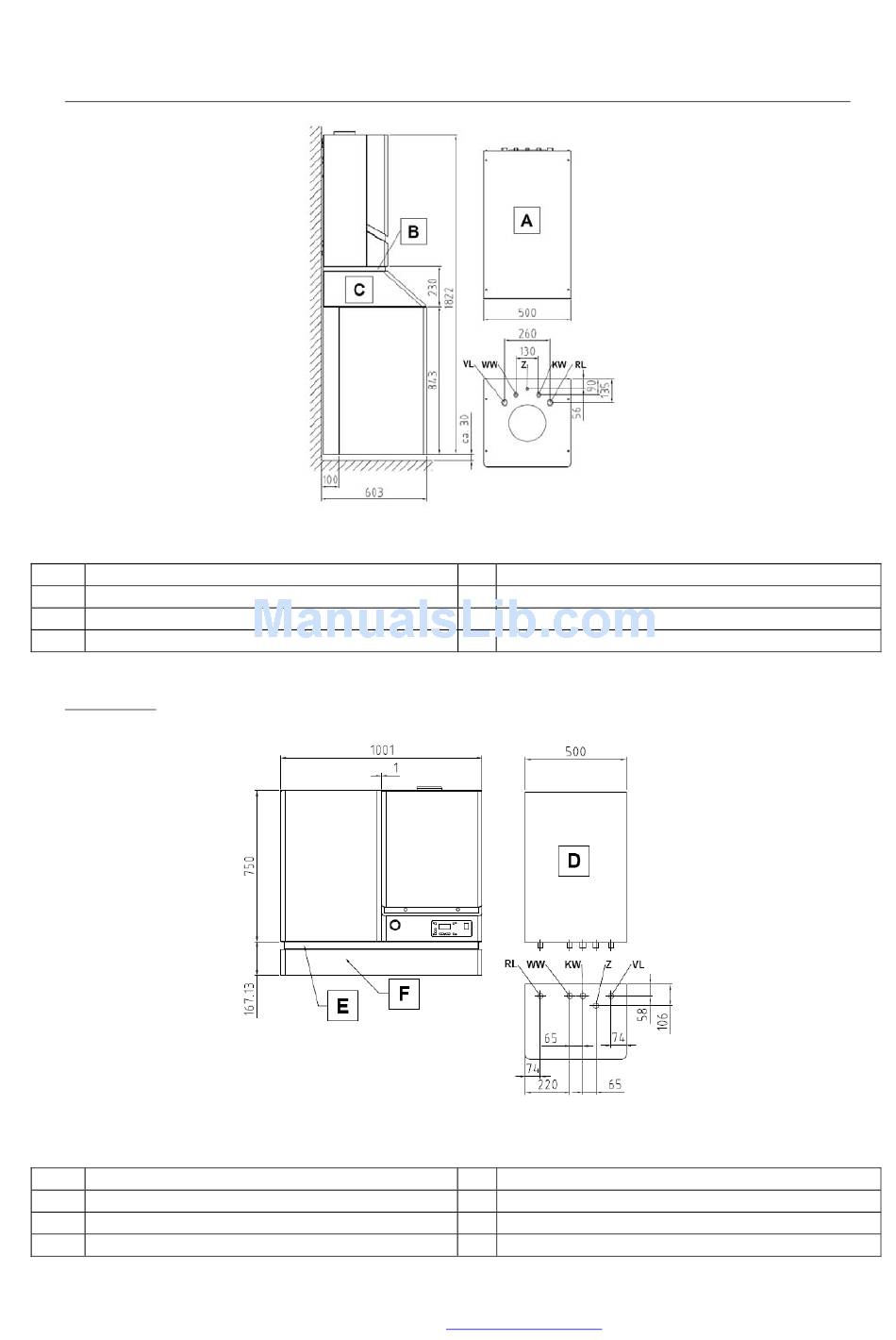

3.3 Dimensions HS + Calorifier Below
Legend
VL Hot water Primary Flow 1"
WW Hot Water Secondary Outlet ¾"
Z Hot Water Secondary Return ½"
KW Cold Water Secondary Inlet ¾"
3.3 Dimensions HS + Calorifier Adjacent
Legend
RL Hot Water Primary Return ¾"
WW Hot Water Secondary Outlet ¾"
KW Cold Water Secondary Inlet ¾"
Z Hot Water Secondary Return ½"
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone 08456 448802 Fax 08456 448803 Email
© MHG Heating Ltd
(Additional information available from the website www.mhgheating.co.uk)
RL
A
B
C
(Additional information available from the website www.mhgheating.co.uk)
VL
D
E
F
info@mhgheating.co.uk
010711
Hot Water Primary Return 1"
120 Litre Calorifier
Pipework Cover
Calorifier Cover
Hot water Primary Flow ¾"
60 Litre Calorifier
Calorifier Cover
Pipework Cover
Web www.mhgheating.co.uk
9
