Summary of Contents for jcb JSBD-JS2
-
Page 2: Table Of Contents

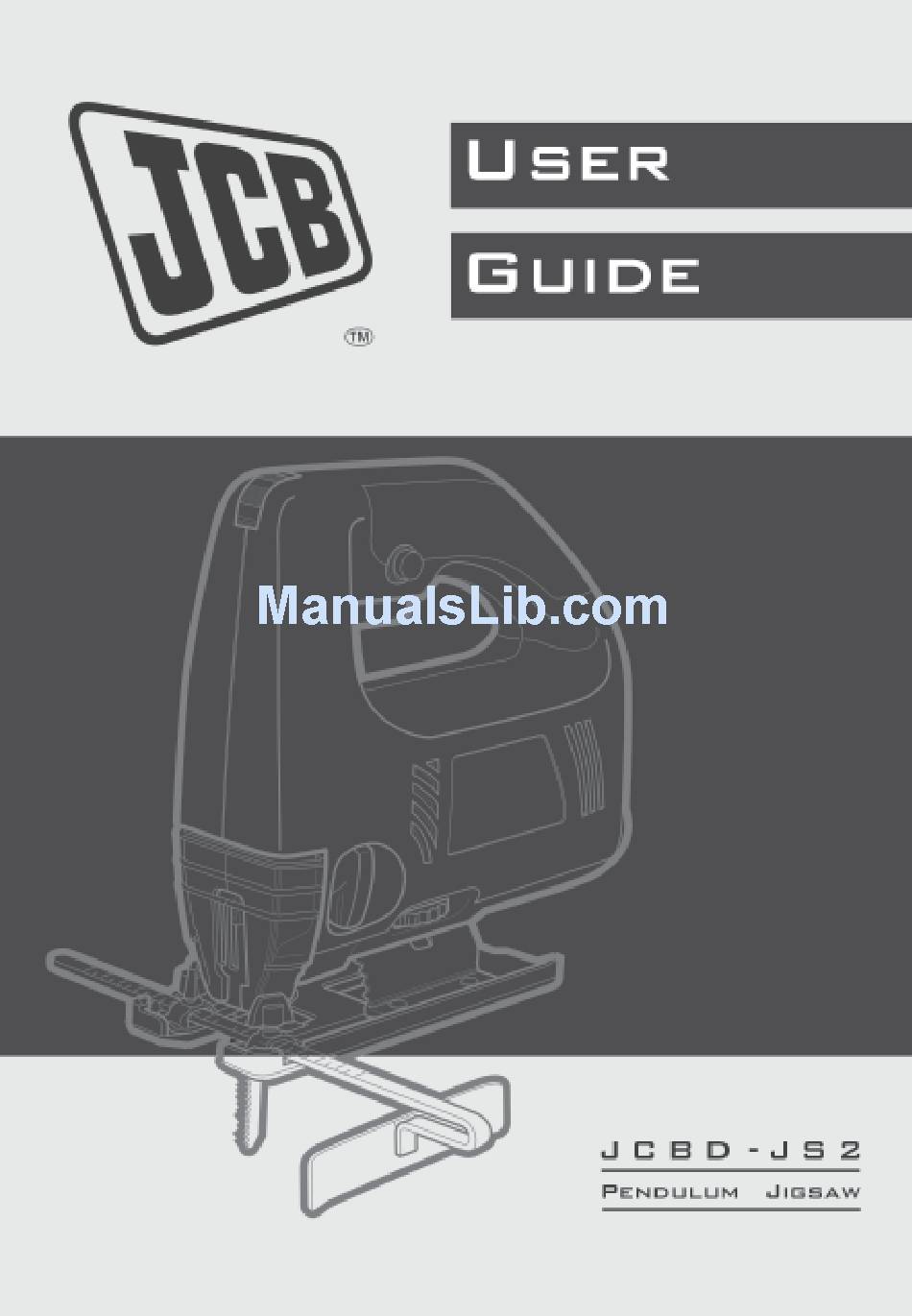

JCBD-JS2 PENDULUM JIGSAW JCB is a byword around the world for quality, innovation and success. With the application of stringent design parameters and utilising high performance, modern materials and manufacturing processes, your JCB product has been developed for optimum functionality and practical application. -
Page 3: Product Specification
PRODUCT SPECIFICATION Model number JCBD-JS2 Rated voltage 230VAC 50Hz Input power 710 watts No load variable speed 400 - 3200 strokes per minute Pendulum action 4 stage Mitre cutting 0 - 45 (Left and right) Maximum cutting depth Wood - 80 mm Steel - 10 mm Aluminium... -
Page 4: Electrical Safety
ELECTRICAL SAFETY Warning: Read these safety instructions carefully before connecting the jigsaw to the mains supply. Make sure that the voltage of the electricity supply is the same as that indicated on the rating plate on the jigsaw. This jigsaw may be fitted with a non-rewireable plug. If it becomes necessary to change the fuse in the plug, the fuse cover must be refitted. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Warning: When using this jigsaw, basic safety precautions, including the following should be observed to reduce the risk of fire, electric shock and personal injury. Make sure that you have read all of these instructions before using the jigsaw. Keep this user guide in a safe place for future reference. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS continued Warning: Before operating this jigsaw make sure that you have read and fully understand all of these extra safety precautions. These safety precautions must be observed when operating the jigsaw. Ensure that the jigsaw is unplugged from the mains supply before fitting, or removing the blade, or making any other adjustments. -
Page 7: Parts Identification
PARTS IDENTIFICATION 1 Variable speed selector 10 Anti-scratch base plate cover 2 On/Off trigger switch 11 Parallel fence guide fixing screws 3 Lock-On button 12 Blade guard 4 Handle 13 Pendulum adjustment lever 5 Mains cable 14 Hexagonal key 6 Cooling vents 15 Anti-splinter insert 7 Dust extraction port 16 Dust extraction port adaptor... -
Page 8: Fitting The Blade
FITTING THE BLADE Warning: Ensure that the jigsaw is disconnected from the mains supply before fitting, or removing the blade, or making adjustments to the base plate, the blade support roller, or the parallel fence guide. To fit the blade to the jigsaw, proceed as follows. 1. -
Page 9: Fitting The Rip Fence Guide
FITTING THE PARALLEL FENCE GUIDE The parallel fence guide helps you to cut in a straight line, parallel to the edge of the workpiece. To fit and adjust the parallel fence guide, proceed as follows. 1. Loosen the parallel fence guide locking screws. 2. -
Page 10: Fitting The Anti-Splinter Insert
FITTING THE ANTI-SPLINTER INSERT The-anti splinter insert should be fitted to the base plate when cutting wood. The insert can only be used when the base plate is in the 90 position. To fit the insert, press it upwards from below, into the recess provided in the base plate. -
Page 11: Using The Blade Guard
USING THE BLADE GUARD Warning: Ensure that the blade guard is in the lower position when operating the jigsaw. If the base plate is positioned to make an angle cut make sure that the base plate is in the lowest possible position. Do not use the jigsaw without the blade guard. -
Page 12: Variable Speed Selector
VARIABLE SPEED SELECTOR The variable speed selector dial is used to control the speed at which the saw operates. This is known as the blade stroke rate. To pre-select the required blade stroke rate, turn the selector dial to the relevant number. A low number gives a low stroke rate and a high number gives a high stroke rate. -
Page 13: Using The Jigsaw
USING THE JIGSAW Warning: Make sure your cutting line is free of nails before cutting. Do not cut hollow pipes. Do not cut wood thicker than 80mm, steel thicker than 10mm, or aluminium thicker than 30mm. Make sure that you have adequate clearance for the blade beneath the material. -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTE NANCE Warning: Make sure that the jigsaw is switched off and disconnected from the mains supply before starting any cleaning, or maintenance procedures. After use, clean all dust and wood chippings from the jigsaw. Clean all of the ventilation slots on the motor housing. The blade locating clip and support roller should be kept clean and lightly oiled at regular intervals. -
Page 15: Guarantee
GUARANTEE This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials, or workmanship will be repaired free of charge, where possible, during this period by the dealer from whom you purchased it. The guarantee is subject to the following provisions: The guarantee is only valid within the boundaries of the country of purchase.
