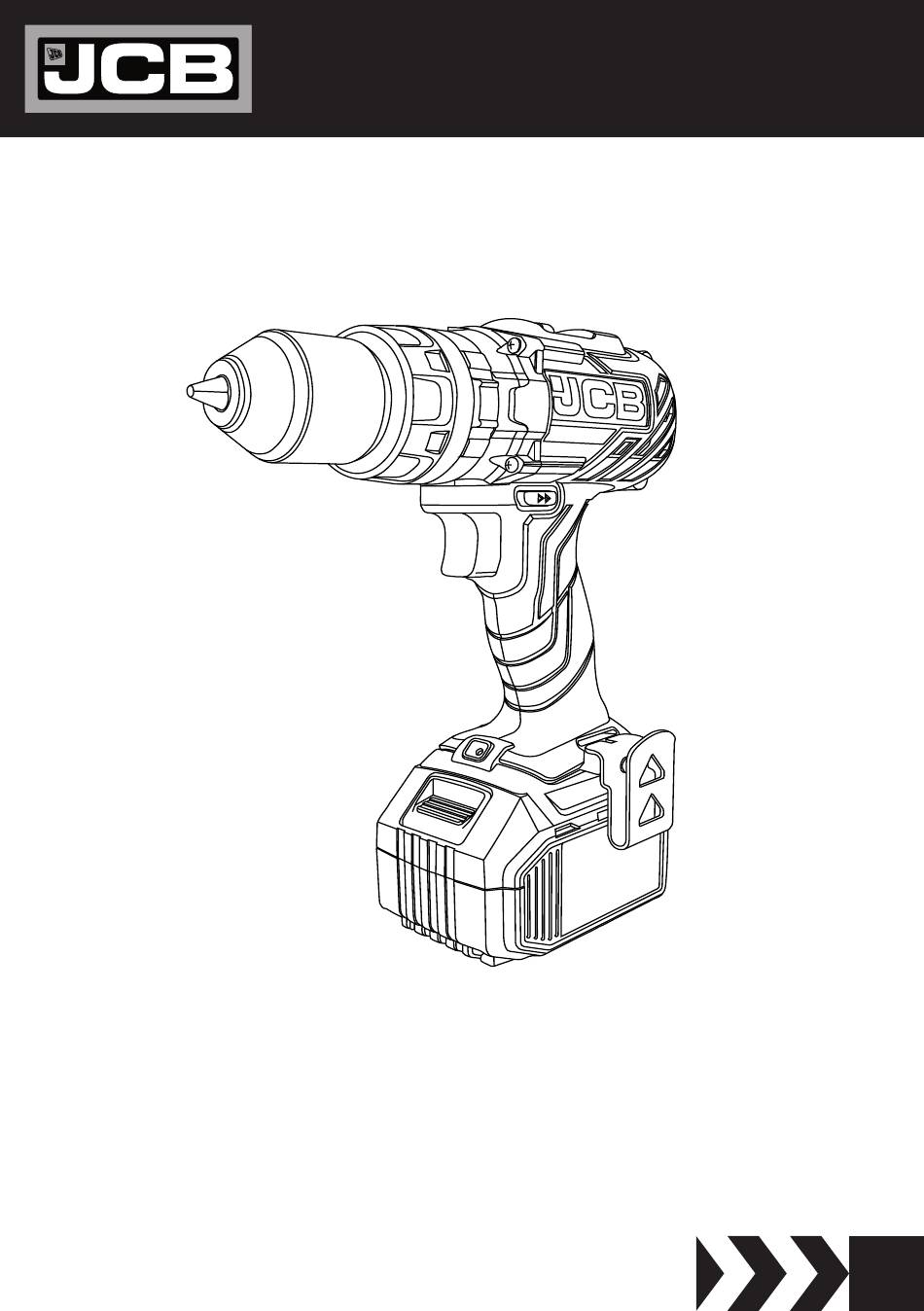

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-18BLCD Original Instructions IM-18BLCD-EN ISS: 08/2019...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-18BLCD Instruction & User Manual...
-
Page 3: Table Of Contents
CHARGER TECHNICAL DATA NOISE INFORMATION VIBRATION INFORMATION OPERATING INSTRUCTIONS Intended Use Battery Replacing Bits/Drills Power Switch Direction Selector Torque Setting Mode Selector Speed Control Maintenance Transport and Storage WARRANTY STATEMENT Conditions Terms EC DECLARATION OF CONFORMITY JCB-18BLCD Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-18BLCD Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. JCB-18BLCD Instruction & User Manual... -
Page 6: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. JCB-18BLCD Instruction & User Manual... -
Page 7: Tool Specific Safety Warnings
Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. JCB-18BLCD Instruction & User Manual... -
Page 8: Charger Safety
To reduce risk of injury, only charge if they have been given supervision JCB rechargable batteries. The or instruction concerning use of charger and battery packs are specifically the appliance in a safe way and designed to work together. - Page 9 JCB-18BLCD Instruction & User Manual...
-
Page 10: Component List
BELT CLIP GEARBOX SPEED SELECTOR SWITCH CHARGER* ON/OFF TRIGGER BATTERY PACK* - PLEASE REFER TO FORWARD/REVERSE SELECTOR TABLE ON PAGE 11 FOR BATTERY INFORMATION SWITCH BATTERY TEST BUTTON AND AUTOMATIC LED LIGHT CHARGE INDICATOR* *If applicable JCB-18BLCD Instruction & User Manual... -
Page 11: Tool Technical Data
1.35 kg LITHIUM ION BATTERY TECHNICAL DATA Battery Battery Battery Charge Time Charge Time Voltage Code Size Capacity (Fast Charger: JCB-18VFC) (Super Fast Charger: JCB-18SFC) JCB-20LI Small 2.0Ah 50 mins 30 mins JCB-30LI Large 3.0Ah 80 mins 45 mins JCB-40LI Large 4.0Ah... -
Page 12: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. JCB-18BLCD Instruction & User Manual... -
Page 13: Operating Instructions
NOTE Make sure the power switch is not pressed Charger is connected to in when inserting or replacing the battery. mains power Use with JCB batteries only: JCB-20LI, Connected battery is JCB-30LI, JCB-40LI and JCB-50LI. charging Connected battery is fully... -
Page 14: Replacing Bits/Drills
Check that the accessory is straight, centred and not askew. If the accessory is not properly positioned it could fly out when starting the tool. Check that the chuck jaws rest on the flat surfaces of the accessory. JCB-18BLCD Instruction & User Manual... -
Page 15: Torque Setting
Check that the drill is correctly inserted and the chuck is properly tightened before Do not over-tighten screws. This risks starting the tool. damaging the screw head or thread. JCB-18BLCD Instruction & User Manual... -
Page 16: Speed Control
2 for high speed (0 to packaging. 1800 rpm). Store the tool and battery in a dry, Use the high speed mode for drilling small frost-free, well ventilated place. holes. JCB-18BLCD Instruction & User Manual... -
Page 17: Conditions
Ensure that the tool is not at risk of tipping over or exposed to excessive vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. NOTE Operating temperature: 0~40 °C Storage temperature: -20~60 °C JCB-18BLCD Instruction & User Manual... -
Page 18: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE mark and a visible serial number. In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, JCB Tools may repair the product by replacing defective parts free of charge at our discretion. - Page 19 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools standard 3 Year and extended 5 Year Warranties excludes the following (where relevant): Components normally subject to wear such as carbon brushes.
-
Page 20: Ec Declaration Of Conformity
EN 62841- 2-1:2018 The person authorized to compile the technical file: Date: 20/09/2018 Signature: Name/ title: Mya Yee Lwin / Quality Assurance Manager Address: JCB Tools, 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK. Company REG: 11062222 JCB-18BLCD Instruction & User Manual... - Page 21 JCB-18BLCD Instruction & User Manual...
