Summary of Contents for jcb JCB-18MT

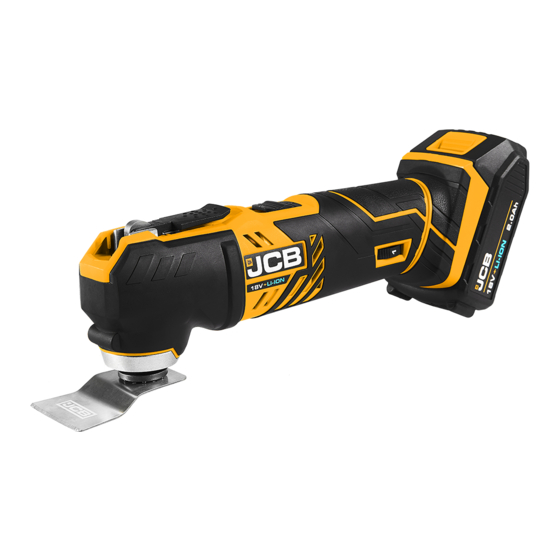

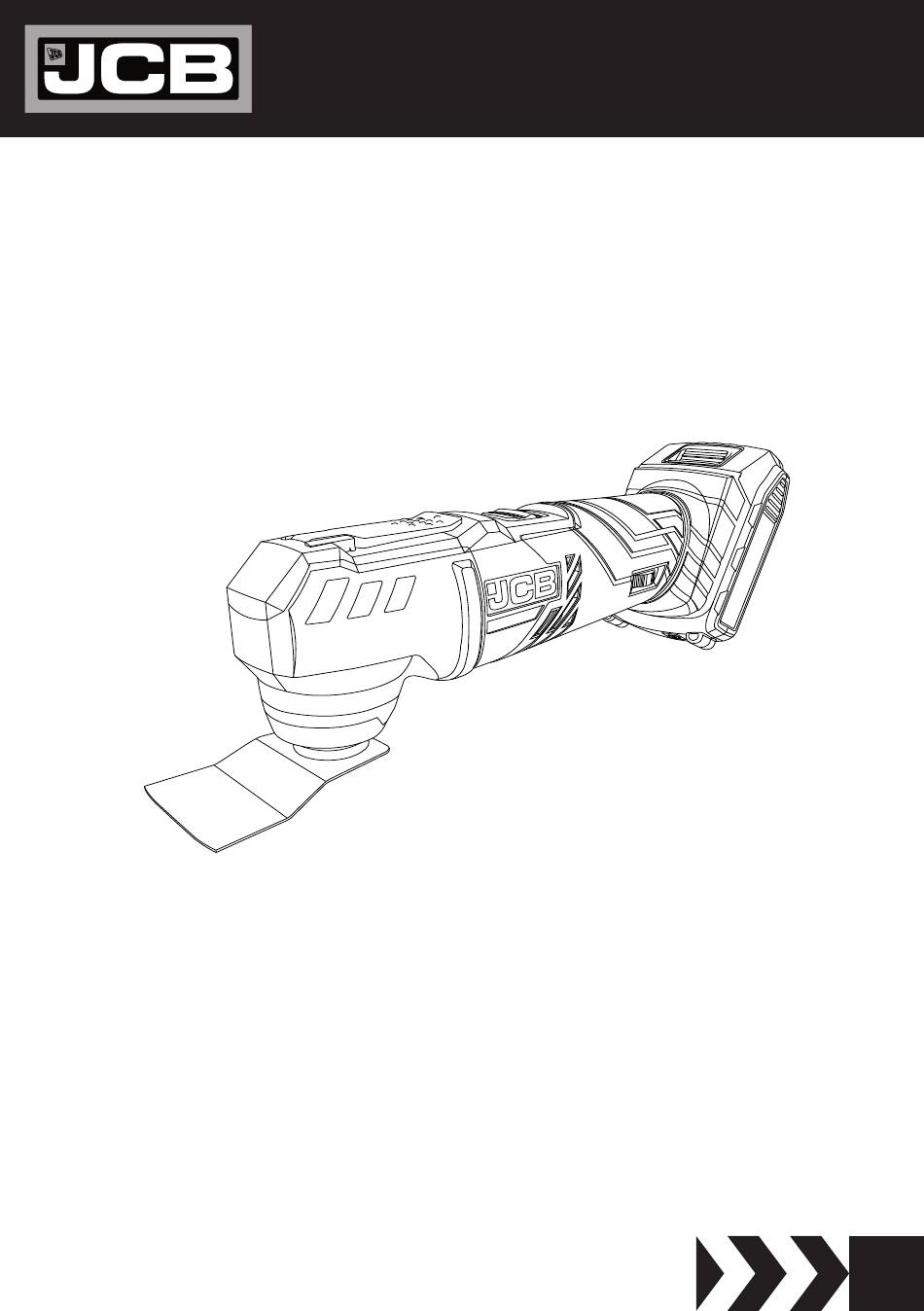

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-18MT Original Instructions IM-18MT-EN...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-18MT Instruction & User Manual...
-
Page 3: Table Of Contents
CHARGER TECHNICAL DATA NOISE INFORMATION VIBRATION INFORMATION OPERATING INSTRUCTIONS Intended Use Battery Replacing Accessories Selecting Sandpaper Fitting and Replacing Sandpaper Sanding Sawing Scraper Maintenance Trasnport and Storage WARRANTY STATEMENT Conditions Terms EC DECLARATION OF CONFORMITY JCB-18MT Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-18MT Instruction & User Manual... -
Page 8: Charger Safety
To reduce risk of injury, only charge JCB rechargable batteries listed in this manual. The charger and battery packs are specifically designed to work together. Other types of batteries may burst causing fire and personal injury. - Page 9 JCB-18MT Instruction & User Manual...
-
Page 10: Component List
SPEED CONTROL VENTILATION OPENINGS ACCESSORY ADAPTOR CHARGER* BATTERY PACK* - PLEASE REFER TO TABLE ON PAGE 11 FOR BATTERY INFORMATION BATTERY TEST BUTTON AND CHARGE Battery size shown for illustrative purposes only INDICATOR* *If applicable JCB-18MT Instruction & User Manual... -
Page 11: Tool Technical Data
220 - 240V ~ 50-60Hz 105W 4.0A NOISE INFORMATION A-Weighted Sound Pressure (LpA) 73 dB(A) A-Weighted Sound Power (LwA) 84 dB(A) KpA & KwA 3 dB(A) Wear ear protection when sound pressure is over 80 dB(A) JCB-18MT Instruction & User Manual... -
Page 12: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. JCB-18MT Instruction & User Manual... -
Page 13: Operating Instructions
Place the battery charger on a level and Removing the battery stable surface. Plug the charger into a 230 V power point. Press the battery release button and remove the battery from the tool. JCB-18MT Instruction & User Manual... -
Page 14: Replacing Accessories
Sandpaper with fine grit is suitable for Do not angle the tool to sand with sanding untreated wood when a soft and only one edge as this can damage smooth surface is required. the sanding pad prevent the sandpaper fastening properly. JCB-18MT Instruction & User Manual... -
Page 15: Sawing
Never open the tool. The tool has no Move the scraper at a slight angle to the internal parts that the user can service or repair. Never try to repair the tool yourself. workpiece. Take to an authorised service centre. JCB-18MT Instruction & User Manual... -
Page 16: Trasnport And Storage
If the LEDs on the charger do not come on when charging: Check that the charger’s mains adaptor is properly plugged into the power point and that the charger is switched on Check that the battery is correctly inserted in the charger JCB-18MT Instruction & User Manual... - Page 17 Always carry the tool using the purpose- designed handle. Ensure that the tool is not at risk of tipping over or exposed to excessive vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. JCB-18MT Instruction & User Manual...
-
Page 18: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE mark and a visible serial number. In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, JCB Tools may repair the product by replacing defective parts free of charge at our discretion. -
Page 19: Conditions
Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools standard 3 Year and extended 5 Year Warranties excludes the following (where relevant): Components normally subject to wear such as carbon brushes. -
Page 20: Ec Declaration Of Conformity
EN 62841-2-4:2014 The person authorized to compile the technical file: Date: 13/11/2018 Signature: Name/ title: Mya Yee Lwin / Quality Assurance Manager Address: JCB Tools, 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK. Company REG: 11062222 JCB-18MT Instruction & User Manual... - Page 21 JCB-18MT Instruction & User Manual...
