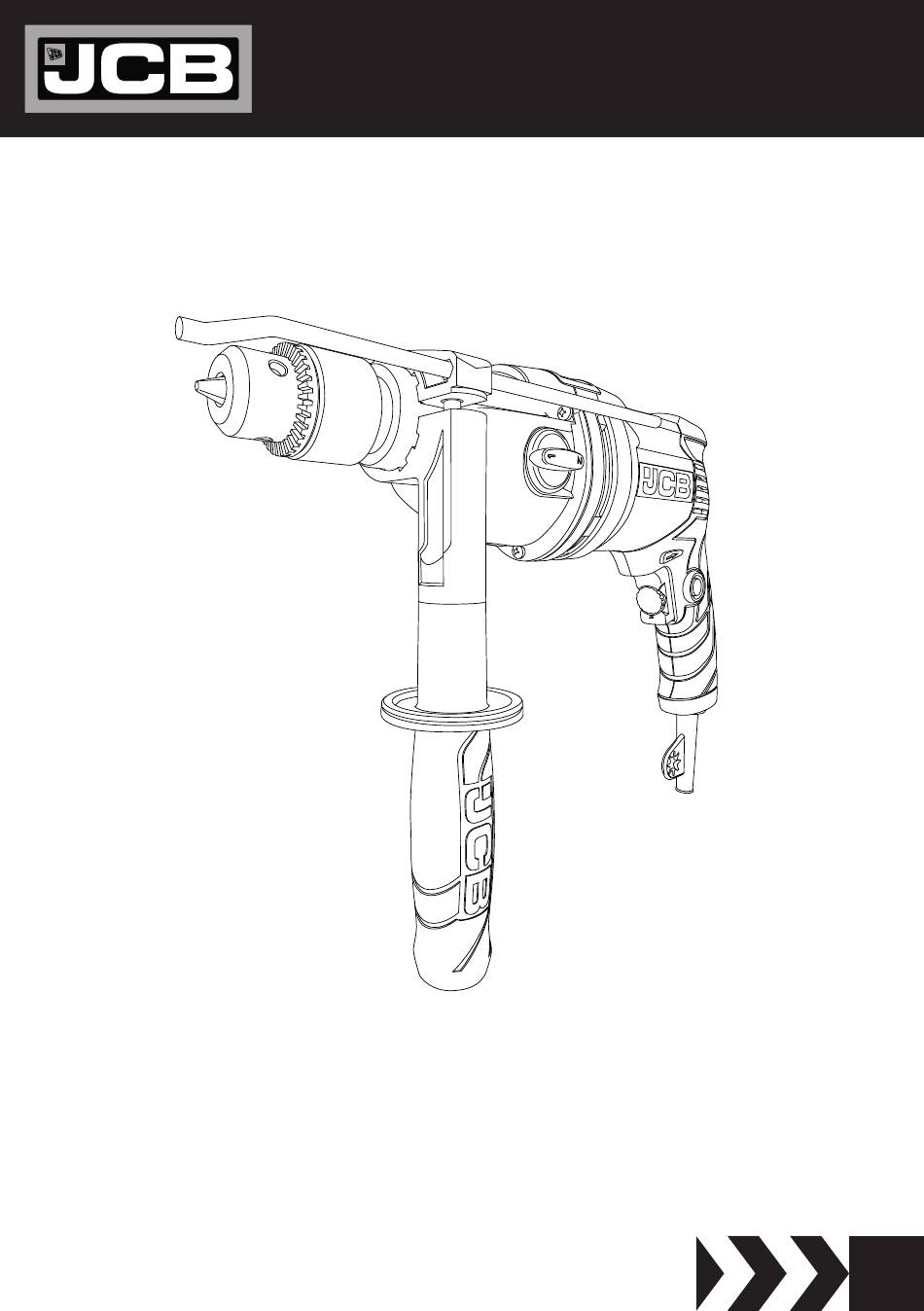

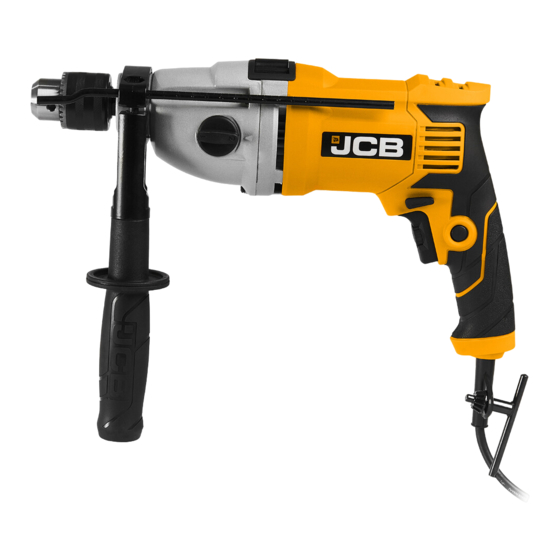

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-ID1050 Original Instructions IM-ID1050-EN...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-ID1050 Instruction & User Manual...
-
Page 3: Table Of Contents
Attaching the Side Handle Setting the Depth Stop Replacing Bits/Drills Power Switch Variable Speed Constant Speed Speed Selection Dial Rotation Selector Mode Selector Gearbox Speed Control Maintenance Transport and Storage WARRANTY STATEMENT Conditions Terms EC DECLARATION OF CONFORMITY JCB-ID1050 Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-ID1050 Instruction & User Manual... -
Page 5: Power Tool Use And Care
Such preventive safety measures reduce the risk of starting the power tool accidentally. JCB-ID1050 Instruction & User Manual... -
Page 6: Tool Specific Safety Warnings
Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. JCB-ID1050 Instruction & User Manual... - Page 7 JCB-ID1050 Instruction & User Manual...
-
Page 8: Component List
COMPONENT LIST DRILL CHUCK DEPTH GAUGE DRILLING/ PERCUSSION DRILLING SWITCH SIDE HANDLE GEAR SELECTOR SPEED SELECTION DIAL ROTATION DIRECTION SWITCH LOCKING BUTTON ON/OFF TRIGGER JCB-ID1050 Instruction & User Manual... -
Page 9: Technical Data
Masonry 16/ 13mm Product Weight 3.2 kg NOISE INFORMATION A-Weighted Sound Pressure (LpA) 95 dB(A) A-Weighted Sound Power (LwA) 106 dB(A) & K 3.0 dB(A) Wear ear protection when sound pressure is over 80 dB(A) JCB-ID1050 Instruction & User Manual... -
Page 10: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. JCB-ID1050 Instruction & User Manual... -
Page 11: Operating Instructions
Release the power switch to stop the tool. until the chuck jaws open and the accessory can be inserted. The chuck is designed so that it can easily be tightened or released with one hand. JCB-ID1050 Instruction & User Manual... -
Page 12: Constant Speed
The drill can jam in deep holes. Release the the right for rotation in an anticlockwise power switch immediately if the drill jams. direction. Switch to anticlockwise rotation and run the drill loose at low speed. JCB-ID1050 Instruction & User Manual... -
Page 13: Gearbox Speed Control
Keep the ventilation openings open – risk of designed handle. overheating. Ensure that the tool is not at risk of tipping over or exposed to vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. JCB-ID1050 Instruction & User Manual... -
Page 14: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE mark and a visible serial number. In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, JCB Tools may repair the product by replacing defective parts free of charge at our discretion. -
Page 15: Conditions
Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools standard 3 Year and extended 5 Year Warranties excludes the following (where relevant): Components normally subject to wear such as carbon brushes. -
Page 16: Ec Declaration Of Conformity
EN 60745-2-1:2010 The person authorized to compile the technical file: Date: 20/09/2018 Signature: Name/ title: Mya Yee Lwin / Quality Assurance Manager Address: JCB Tools, 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK. Company REG: 11062222 JCB-ID1050 Instruction & User Manual... - Page 17 JCB-ID1050 Instruction & User Manual...
