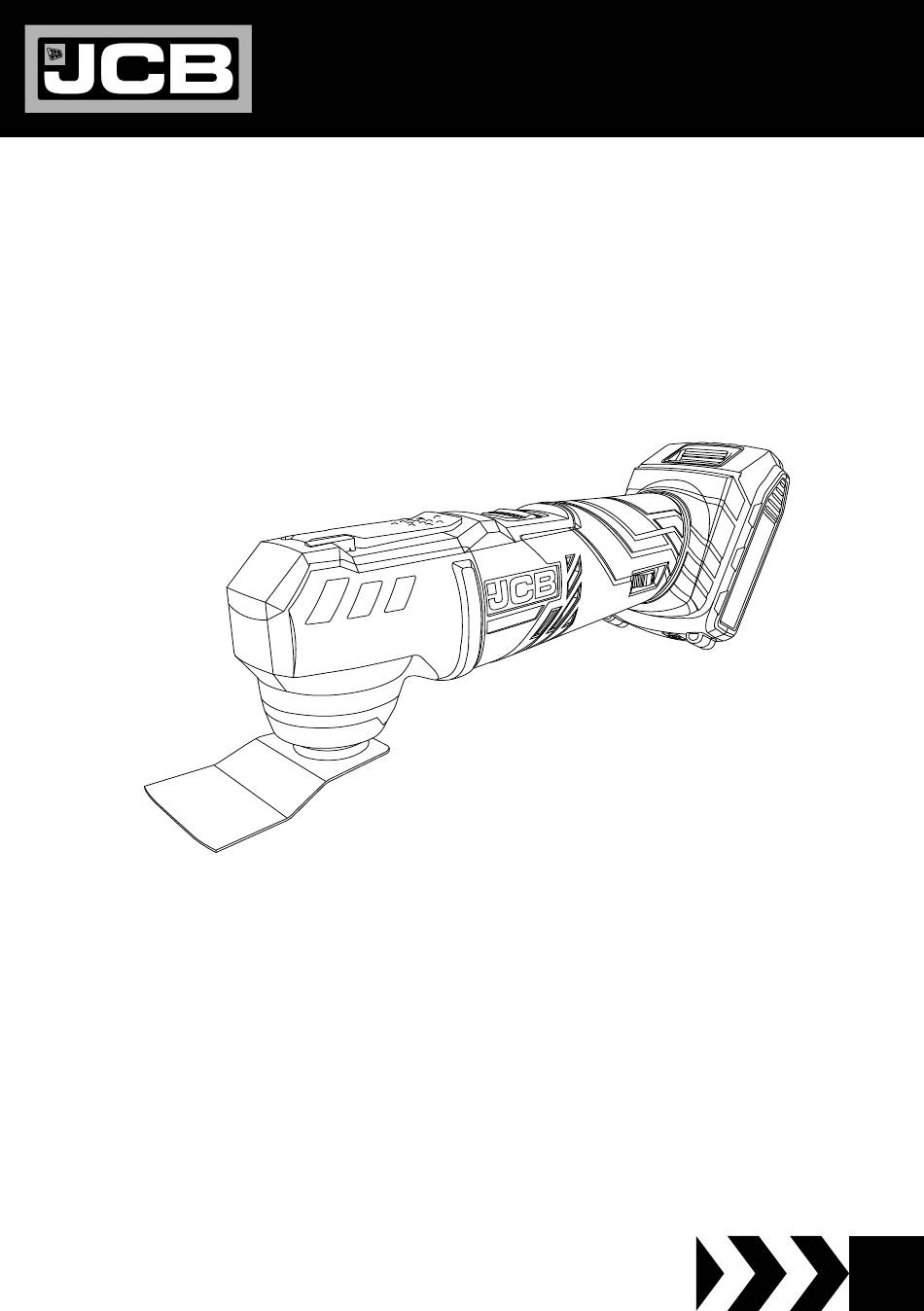

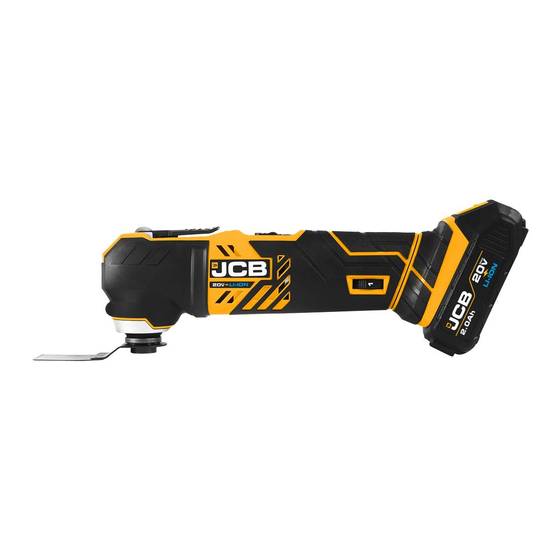

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-20MT Original Instructions IM-20MT-EN...
- Page 2 Directive 2012/19/EU. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances. JCB-20MT Instruction & User Manual...
- Page 3 For more information go to www. P65Warnings.ca.gov/wood. The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-20MT Instruction & User Manual...
-
Page 4: Table Of Contents
BATTERY TECHNICAL DATA CHARGER TECHNICAL DATA NOISE INFORMATION VIBRATION INFORMATION OPERATING INSTRUCTIONS Intended Use Battery Replacing Accessories Selecting Sandpaper Fitting and Replacing Sandpaper Sanding Sawing Scraper Maintenance Transport and Storage WARRANTY STATEMENT GENERAL CERTIFICATE OF CONFORMITY JCB-20MT Instruction & User Manual... -
Page 5: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-20MT Instruction & User Manual... -
Page 6: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. JCB-20MT Instruction & User Manual... -
Page 7: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. JCB-20MT Instruction & User Manual... -
Page 8: Tool Specific Safety Warnings
Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. JCB-20MT Instruction & User Manual... -
Page 9: Charger Safety
To reduce risk of injury, only charge if they have been given supervision JCB rechargable batteries. The or instruction concerning use of charger and battery packs are specifically the appliance in a safe way and designed to work together. - Page 10 JCB-20MT Instruction & User Manual...
-
Page 11: Component List
SPEED CONTROL VENTILATION OPENINGS ACCESSORY ADAPTOR CHARGER* BATTERY PACK* - PLEASE REFER TO TABLE ON PAGE 12 FOR BATTERY INFORMATION BATTERY TEST BUTTON AND CHARGE Battery size shown for illustrative purposes only INDICATOR* *If applicable JCB-20MT Instruction & User Manual... -
Page 12: Tool Technical Data
JCB-20DC AC 120 V, 60Hz, 200W 20.5V d.c. 2 x 3.5A NOISE INFORMATION A-Weighted Sound Pressure (LpA) 78.00 dB(A) A-Weighted Sound Power (LwA) 89.00 dB(A) Wear ear protection when sound pressure is over 80 dB(A) JCB-20MT Instruction & User Manual... -
Page 13: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. JCB-20MT Instruction & User Manual... -
Page 14: Operating Instructions
Make sure the power tool ON/OFF Trigger battery from the charger. is not operated when inserting or removing Battery Charge Level the battery. Use with JCB batteries only: JCB-20-15LI, JCB-20-20LI, JCB-20-30LI, Green Battery Charge Status JCB-20-40LI and JCB-20-50LI. -
Page 15: Replacing Accessories
The sanded surface will be relatively rough. JCB-20MT Instruction & User Manual... -
Page 16: Sawing
Hold the multi-tool so that the saw blade is not touching the workpiece. Start the multi-tool and move the power switch to position 1, and wait until the tool has reached full power. JCB-20MT Instruction & User Manual... -
Page 17: Maintenance
WARNING! Never open the power tool. The power tool has no internal parts that the user can service or repair. Never try to repair the power tool yourself. Take to an authorised service centre. JCB-20MT Instruction & User Manual... - Page 18 JCB-20MT Instruction & User Manual...
-
Page 19: Warranty Statement
In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, please contact the seller/retailer where the item was purchased. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. - Page 20 JCB-20MT Instruction & User Manual...
-
Page 21: General Certificate Of Conformity
IEC 55014-2:2015 IEC 55014-1:2017 IDENTIFICATION DETAILS OF IMPORTER/US DOMESTIC MANUFACTURER CERTIFYING PRODUCT COMPLIANCE: Name: JCB Tools (Yellow and Black Tools Limited) Address: 55 Romsey Industrial Estate Romsey, SO51 0HR Tel no: +44 1794 834250 CONTACT INFORMATION OF INDIVIDUAL MAINTAINING RECORDS OF TEST RESULTS: Name: Tim Burgoyne, QA Technical Manager &... - Page 22 JCB-20MT Instruction & User Manual...
