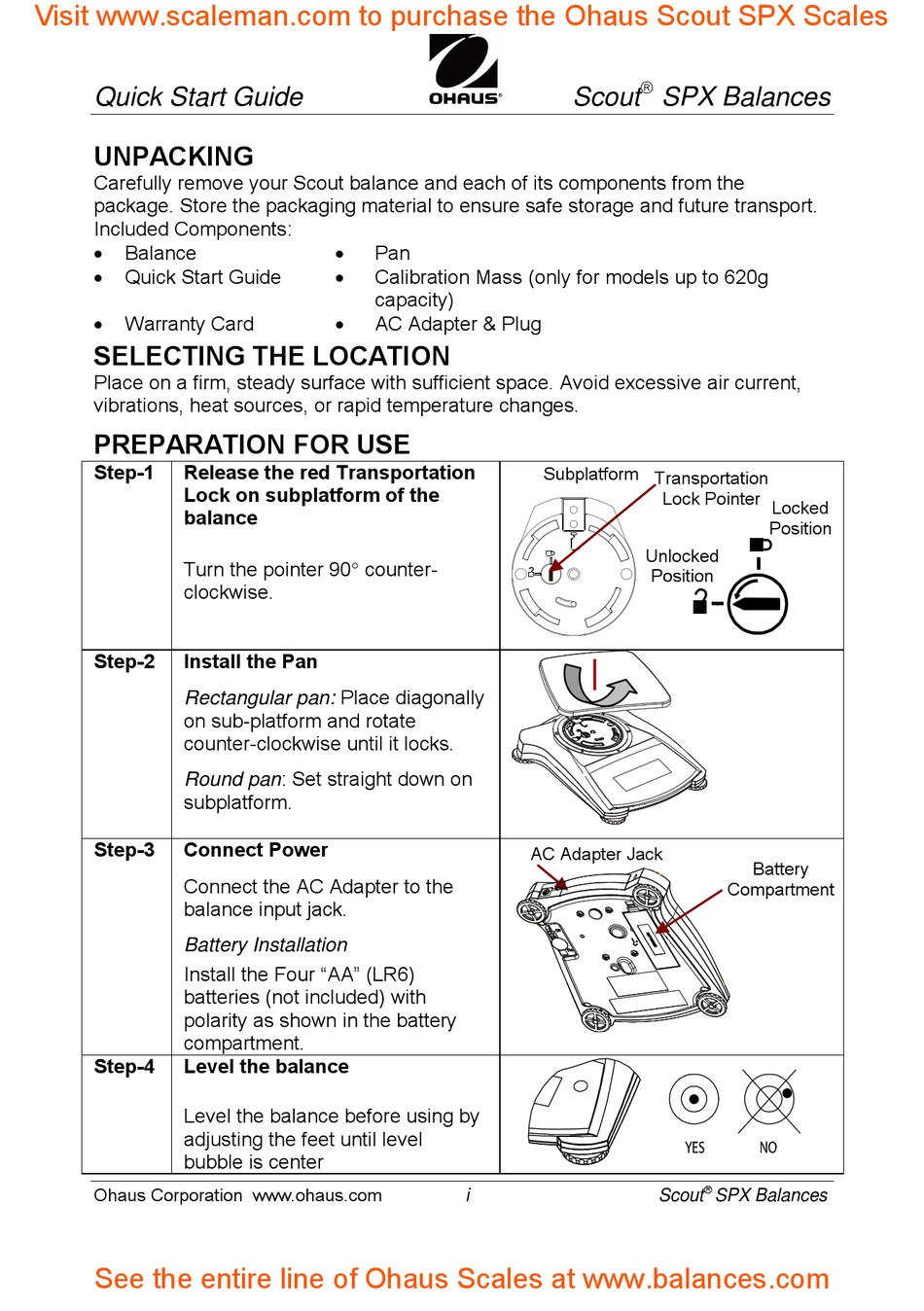

Quick Start Guide
UNPACKING
Carefully remove your Scout balance and each of its components from the
package. Store the packaging material to ensure safe storage and future transport.
Included Components:
 Balance
 Quick Start Guide
 Warranty Card

SELECTING THE LOCATION

Place on a firm, steady surface with sufficient space. Avoid excessive air current,
vibrations, heat sources, or rapid temperature changes.
PREPARATION FOR USE
Step-1 Release the red Transportation
Lock on subplatform of the
balance
Turn the pointer 90 counter-
clockwise.
Step-2 Install the Pan
Rectangular pan: Place diagonally
on sub-platform and rotate
counter-clockwise until it locks.
Round pan: Set straight down on
subplatform.
Step-3 Connect Power
Connect the AC Adapter to the
balance input jack.
Battery Installation
Install the Four "AA" (LR6)
batteries (not included) with
polarity as shown in the battery
compartment.
Step-4 Level the balance
Level the balance before using by
adjusting the feet until level
bubble is center
Ohaus Corporation www.ohaus.com
See the entire line of Ohaus Scales at www.balances.com
 Pan
 Calibration Mass (only for models up to 620g
capacity)
 AC Adapter & Plug
i

Scout SPX Balances
Subplatform Transportation
Lock Pointer
Unlocked
Position
AC Adapter Jack

Scout
Locked
Position
Battery
Compartment
SPX Balances
