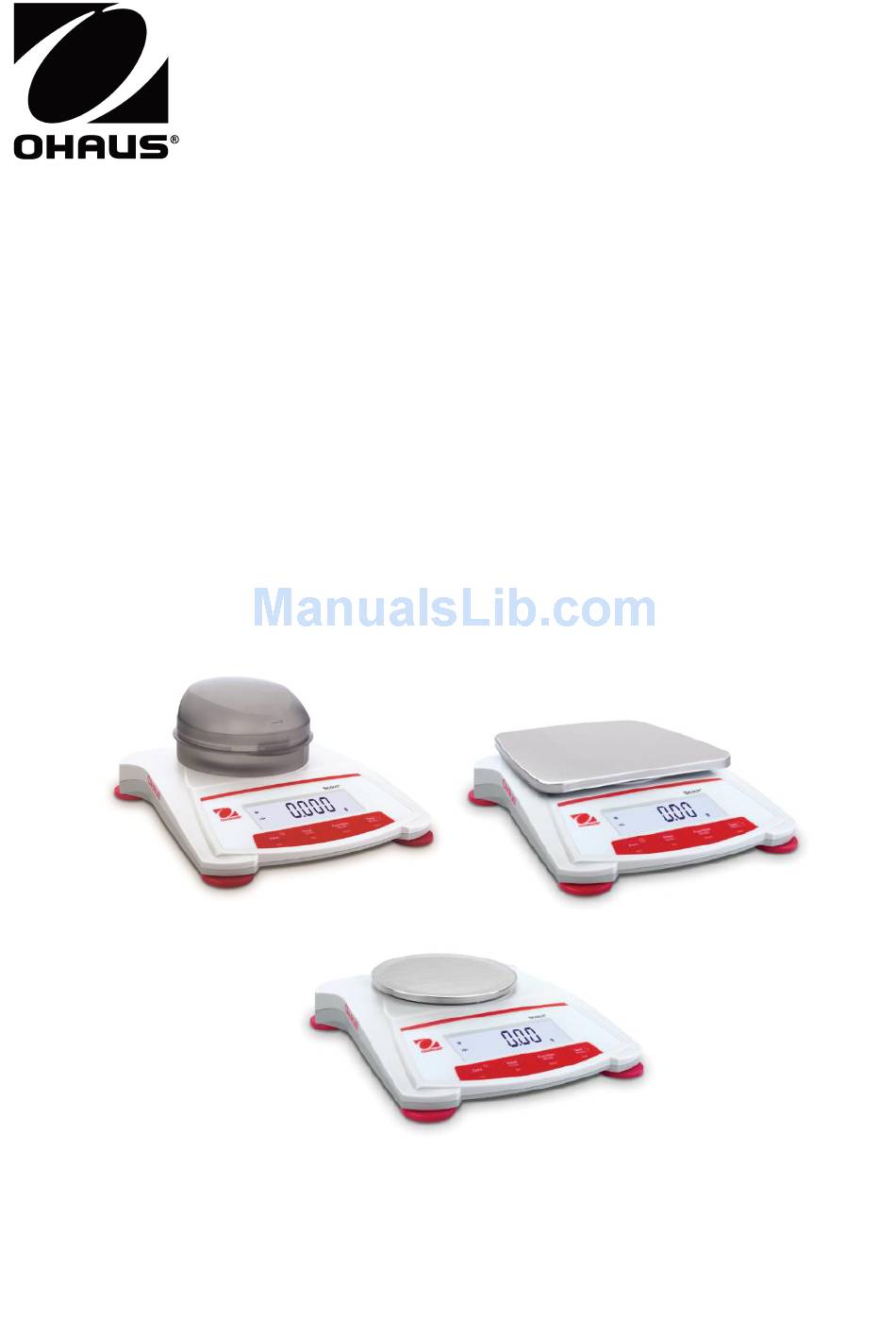

- Page 1 Scout Series Balances - SKX Instruction Manual...
-
Page 3: Definition Of Signal Warnings And Symbols
SCOUT SERIES BALANCES - SKX EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Scout SKX Series Balances. Please read the manual completely before using the balance 1.1 Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. These show safety issues and warnings. -
Page 4: Selecting The Location
EN-2 SCOUT SERIES BALANCES - SKX 2.1.1 Releasing the Shipping Lock Release the red Transportation Lock on Sub-platform Transportation the sub-platform of the balance by Lock Pointer turning the red pointer 90 counter- Locked Position clockwise. Unlocked Position Figure 2-1. Transportation Lock 2.1.2 Installing the Weighing Pan Balances with a rectangular pan are placed into the sub-platform as shown and rotated counter- clockwise until it locks. -
Page 5: Connecting Power
SCOUT SERIES BALANCES - SKX EN-3 2.4 Connecting Power AC Adapter Installation AC power is used to power the scale when battery power is not needed. First, connect the AC Adapter (supplied) to the AC Adapter Input receptacle at the rear of the balance then connect the AC plug to an electrical outlet. -
Page 6: Operation
EN-4 SCOUT SERIES BALANCES - SKX 3. OPERATION 3.1 Controls Figure 3-1. Scout Control Panel TABLE 3-1. Button Functions Button Primary Function Zero/On Print Function Tare Enter/clear a tare (Short Press) Turns the balance Sends the current Initiates an value. value to the application mode. -
Page 7: Calibration Operation
SCOUT SERIES BALANCES - SKX EN-5 Figure 3-2. Scout Display TABLE 3-2. Display Symbols Item Description Item Description Battery charge symbol Pointer symbols Stable weight symbol Kilogram, grain symbols Negative symbol Pound, Ounce, Pound:Ounce symbols Center of Zero symbol g/mol symbol NET symbol G symbol Preset Tare symbol... -
Page 8: Density Mode
EN-6 SCOUT SERIES BALANCES - SKX 3.5 Density Mode This mode allows the user to calculate the specific gravity of a sample when using the density kit. Density mode has been initiated when “G” and the current unit is displayed. The sample is weighed in air suspended from the hook and then weighed in water. -
Page 9: Menu Settings
SCOUT SERIES BALANCES - SKX EN-7 4. MENU SETTINGS The User Menu allows the customizing of balance settings. Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface User Manual for the additional setting information. 4.1 Menu Navigation User Menu: Sub-Menus C.a.l... -
Page 10: Setup Menu
EN-8 SCOUT SERIES BALANCES - SKX 4.3 Setup Menu Enter this menu to set balance parameters. Reset: no, yes Filter: Low, Med, High Auto Zero Tracking: off, 0.5d, 1d, 3d Stable: 0.5d, 1d, 2d, 5d Backlight: off, on, auto Auto Tare: off, on, on-acc Auto Off: off, 1, 5, 10... -
Page 11: Mode Menu
SCOUT SERIES BALANCES - SKX EN-9 Auto off [A.OFF] Set the automatic shut off functionality. = disabled = powers off after 1 minute of no activity = powers off after 5 minutes of no activity = powers off after 10 minutes of no activity End Setup [End] Advance to the next menu or return to the top of the current menu. -
Page 12: Additional Features
Figure 4-4. Rear of the balance * Interface kits may vary according to local regulations The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OHAUS is under license. -
Page 13: Maintenance
OHAUS service agent. For service assistance or technical support in the United States call toll-free 1-800-672-7722 ext. 7852 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit our web site, www.ohaus.com to locate the OHAUS office nearest you. -
Page 14: Technical Data
EN-12 SCOUT SERIES BALANCES - SKX 6. TECHNICAL DATA The technical data is valid under the following ambient conditions: Indoor use only Operating temperature range: +5 ° C to +40 ° C Relative humidity: 10% to 80% at 31° C, decreasing linearly to 50% at 40° C, non-condensing Altitude: Up to 2000 m Power: AC power adaptor input 100-240V 50/60 Hz and output 5 V DC 1 A, or 4 AA batteries Pollution degree: 2... - Page 15 SCOUT SERIES BALANCES - SKX EN-13 TABLE 6-2. SPECIFICATIONS (Cont.) Capacity x Readability: Model SKX123 SKX222 SKX422 SKX622 SKX1202 SKX2202 Gram (g) 120 x 0.001 220 x 0.01 420 x 0.01 620 x 0.01 1200 x 0.01 2200 x 0.01 Kilogram (kg) 1.2 x 0.00001 2.2 x 0.00001...
- Page 16 Mark Standard EN 61010-1, EN 61326-1 Refer to the declaration of conformity online at www.ohaus.com/ce. This product complies with the EU Directive 2002/96/EC (WEEE). Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. For disposal instructions in Europe, refer to www.ohaus.com/weee.
- Page 17 This Class B digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements. On June 21, 2012, OHAUS...
- Page 18 OHAUS. This warranty does not apply if the product has been damaged by accident or misuse, exposed to radioactive or corrosive materials, has foreign material penetrating to the inside of the product, or as a result of service or modification by other than OHAUS.
- Page 20 *30269039* P/N 30269039 B © 2016 OHAUS Corporation, all rights reserved / todos los derechos reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati. Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in...
