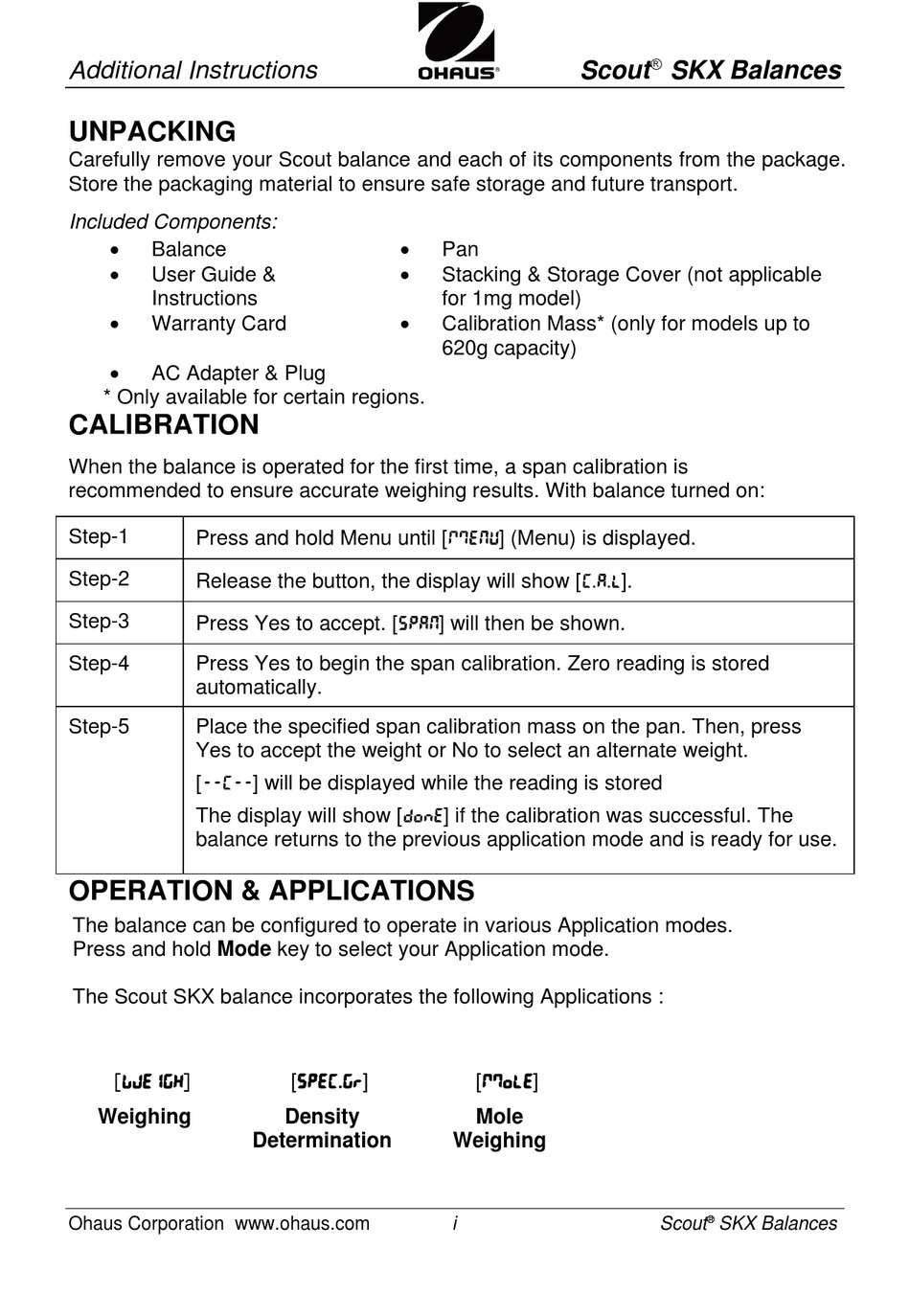

OHAUS Scout SKX Additional Instructions

Additional Instructions
UNPACKING
Carefully remove your Scout balance and each of its components from the package.
Store the packaging material to ensure safe storage and future transport.
Included Components:

Balance

User Guide &
Instructions

Warranty Card

AC Adapter & Plug
* Only available for certain regions.
CALIBRATION
When the balance is operated for the first time, a span calibration is
recommended to ensure accurate weighing results. With balance turned on:
Step-1
Press and hold Menu until [mMeNU] (Menu) is displayed.
Step-2
Release the button, the display will show [C.A.L].
Step-3
Press Yes to accept. [SpaN] will then be shown.
Step-4 Press Yes to begin the span calibration. Zero reading is stored
automatically.
Step-5 Place the specified span calibration mass on the pan. Then, press
Yes to accept the weight or No to select an alternate weight.
[--C--] will be displayed while the reading is stored
The display will show [done] if the calibration was successful. The
balance returns to the previous application mode and is ready for use.
OPERATION & APPLICATIONS
The balance can be configured to operate in various Application modes.
Press and hold Mode key to select your Application mode.
The Scout SKX balance incorporates the following Applications :
[wWeIGH]
Weighing
Ohaus Corporation www.ohaus.com



[SPEC.Gr]
Density
Determination
Scout
Pan
Stacking & Storage Cover (not applicable
for 1mg model)
Calibration Mass* (only for models up to
620g capacity)
[mMoLE]
Mole
Weighing
i

SKX Balances

Scout SKX Balances
