- Page 1 Scout Series Balances - STX Instruction Manual Balanzas Scout Series - STX Manual de instrucciones Balances Scout Séries - STX Scout Waagen - Serien - STX Bedienungsanleitung Bilance Serie Scout - STX...
-
Page 2: Table Of Contents
EN-0 TABLE OF CONTENTS 1. INTRODUCTION ....................1 Description ..............................1 Definition of Signal Warnings and Symbols....................1 Safety Precautions............................1 1.4 Features ................................. 2 2. INSTALLATION....................4 Installing Components ..........................2 2.1.1 Releasing the Transportation Lock ......................2 2.1.2 Installing the Weighing Pan ........................ - Page 3 5.2.3 Weighing Units ............................29 5.2.4 Data Maintenance............................30 5.2.5 Communication ............................30 5.2.6 GLP and GMP Data ........................... 35 5.2.7 Factory Reset............................. 36 5.2.8 Lockout............................... 36 6. MAINTENANCE ....................39 6.1 Calibration ..............................37 6.2 Cleaning ..............................37 6.3 Troubleshooting ............................37 6.4 Service Information .............................
-
Page 5: Introduction

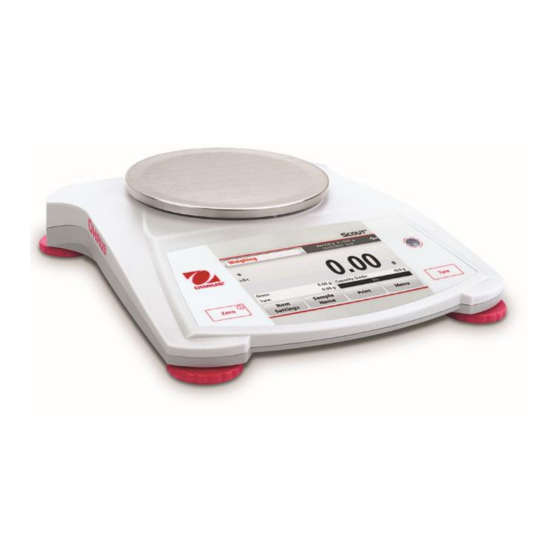

EN-1 1. INTRODUCTION 1.1 Description The Scout STX balance is a high quality weighing instrument that will provide you with years of service if properly cared for. Models are available with ranges from 120g to 8200g. 1.2 Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. -
Page 6: Features
EN-2 1.4 Features Touch Controls: Quick, graphical access to all control functions, applications and features. INSTALLATION 2.1 Installing Components Refer to the illustrations and instructions below to identify and assemble your Scout balance with its components. All components must be assembled before using the balance. 2.1.1 Releasing the Transportation Lock Release the red transportation lock on the Sub-platform... -
Page 9: Calibration
EN-5 Principal Functions and Main Menu Weighing: Press Zero to set the display to zero. Place an item on the pan. Display indicates gross weight. Taring: With no load on the pan, press Tare to set the display to zero. Place an empty container on the pan and press Tare. -
Page 11: Sample Name
If this happens, unplug the USB flash drive and try another USB flash drive. Ohaus takes no responsibility if data on USB flash drive is erased or if the USB flash drive breaks while it is connected to the balance. -
Page 13: Item Settings
EN-9 APW: Set a known Average Piece Weight (APW) To adjust the APW value directly, touch the APW button A numeric input window appears. Key in the desired APW Weight, then press Save. The display returns to the application home screen with the new APW value in the reference field. -
Page 16: Item Settings
EN-12 4.4.1 Item Settings To view or adjust the current settings: Touch the Item Settings button. The Settings screen appears. Averaging Time: The Averaging Time can be set from 1 to 99 seconds. The default value is 5 seconds. Automatic Mode: The cycle begins when an object (animal) is placed on the pan, and the held value is automatically reset when the object is removed... - Page 18 EN-14 The balance calculates water density based on the water temperature value entered (internal lookup table). Measure the actual water temperature using a precision thermometer. Press Back to return to the Density Determination home screen. To begin the Density Determination process, press Start.
-
Page 19: Measuring The Density Of A Solid Using An Auxiliary Liquid
EN-15 Once the necessary weights have been determined, the density of the sample is displayed in g/cm (along with the weight in air, weight in water) on the Application screen. Press Start to reset all the weight values and restart the process. The balance can also be used to measure the Density of a Buoyant Material Using Water. - Page 20 EN-16 Confirm that the default value displayed (sinker volume) is correct. To edit the default values, touch Sinker Volume. A numeric input window is displayed. Key in the desired value, then press Save. The display returns to the previous screen. Edit the Liquid temperature if required.
-
Page 21: Measuring The Density Of Porous Material Using Oil
EN-17 4.5.4 Measuring the Density of Porous Material Using Oil To enable this feature, enter the Item Settings screen, and select the following: Density Type: Solid Auxiliary Liquid: Water Porous Material: On To adjust the Water Temperature or Oil Density values, touch the Water Temp or Oil Density button. -
Page 23: Item Settings
EN-19 4.6.1 Item Settings To view or adjust the current settings Touch the Item Settings button. The Settings screen appears. Sample Name: Enter a sample name. Weighing Units: Select the displayed unit. Print Settings: To view or adjust the print settings 4.6.2 Limits To view or adjust the current settings... -
Page 24: Display Hold
EN-20 4.7 Display Hold The Display hold application allows the user to capture and store the highest stable weight in a series of weight measurements. In the upper left portion of the home screen, select Display hold. The DISPLAY HOLD Home screen: Main Display Line Application Icon Reference Fields... -
Page 25: Totalization
EN-21 1. Select Peak Hold Mode in Item settings (see section 4.7.1). 2. Place item on the pan and press Start. The capture process starts. 3. Continue to weigh items. The highest stable weight will be held. 4. Press Stop to remove the hold and return to normal operation screen. -
Page 27: Enter Molar Mass
EN-23 Weighing Units: Select the displayed unit for gross and tare. Print Settings: To view or adjust the print settings 4.9.2 Enter Molar Mass Press Molar Mass, and use the numeric keypad to enter the required Molar Mass value of the substance, and then press Save. 4.9.3 Calculate Molarity The Molarity is only calculated when the Liquid Volume is set up. -
Page 28: Connecting The Interface
Interface connection Security Slot AC Adapter Jack * Interface kits may vary according to local regulations The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OHAUS is under license. -
Page 29: Menu Settings
EN-25 5. MENU SETTINGS 5.1 Menu Navigation All menu navigation is performed by touching the display. To enter the Menu, touch Menu from any Application Home screen. The Main menu appears, with buttons for Back and Exit. Continue touching the appropriate list item to navigate to the Menu items or touch a button to change location. -
Page 30: Main Menu
EN-26 5.2 Main Menu The Scout balance Main menu structure is illustrated below. 5.2.1 Calibration Scout STX balances offer a choice of two calibration methods: Span Calibration and Linearity Calibration. Note: Do not disturb the balance during any calibration. Calibration sub-menu Span Linearity Calibration... -
Page 33: Weighing Units
EN-29 5.2.3 Weighing Units Enter this sub-menu to activate the desired units of measure. Note: Due to national laws, the indicator may not include some of the units of measure listed. Units Sub-menu milligram gram kilogram carat ounce ounce troy pound pound ounce pennyweight... -
Page 34: Data Maintenance
EN-30 5.2.4 Data Maintenance Data Maintenance sub-menu: Export to Import from Balance Info Export to USB* Export data to USB flash drive. Two types of data can be exported: - Application Mode Settings = APW, Ref.Weight etc. - Menu Settings = balance setup functions etc. Note: The function Save to USB needs to be set to ON to enable data transfer to USB. - Page 36 EN-32 = Headers will be printed for every print requirement = Headers will be printed once a day Print Options* Set the printing criteria. Printer = Print data to a printer = Print data to a PC Note: If language selection is set to Chinese, Japanese or Korean, these options shall match the actual peripheral device.
- Page 37 EN-33 Selection Sample Name Set the status. Set the status. Select All = all options will be turned on OFF = the Sample Name is not Deselect All = all options will be printed. turned off = the Sample Name is printed. Header Result Set the status.
-
Page 40: Factory Reset
EN-36 5.2.7 Factory Reset Use this sub-menu to reset the menus to their Factory default settings. Reset All = reset all menus to their factory default setting. Exit = return to main screen without resetting any menus. Note: Calibration data is not affected. 5.2.8 Lockout Use this menu to lock/unlock certain menus to prevent unauthorized changes to menu settings. -
Page 41: Maintenance
OHAUS service agent. For service assistance or technical support in the United States call toll-free 1-800-672-7722 ext. 7852 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit... -
Page 42: Technical Data
EN-38 TECHNICAL DATA 7.1 Specifications Ambient conditions Indoor use only Operating temperature: +5 °C to +40 °C Relative humidity: 10% to 80% at 31 °C, decreasing linearly to 50 % at 40 °C, non- condensing Altitude: Up to 2000 m Power: AC power adaptor input 100-240 V 50/60 Hz and output 5 V DC 1 A, or 4 AA batteries EMC: See Declaration of Conformity... - Page 43 EN-39 TABLE 7-2. SPECIFICATIONS (Continued) TABLE 7-3. SPECIFICATIONS (Continued) Notes: * Calibration weights are included with models up to 620g capacity. ** Availability is dependent on model and region. *** Bluetooth kit is only available in certain regions according to the local regulations...
-
Page 44: Drawings And Dimensions
202 mm / 8.0 in. 224 mm / 8.8 in. 54 mm / 2.1 in. 8. SOFTWARE UPDATES Ohaus is continuously improving its balance software. To obtain the latest release, please contact your Authorized Ohaus Dealer or Ohaus Corporation. -
Page 45: Compliance
Standard This product complies with the applicable harmonized standards of EU Directives 2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/31/EU (NAWI). The EU Declaration of Conformity is available online at www.ohaus.com/ce. EN 61326-1 CAN/CSA-C22.2 No. 61010-1, UL Std. No. 61010-1... - Page 46 Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to...
- Page 47 ÍNDICE 1. INTRODUCCIÓN ....................1 Descripción..............................1 Definición de los símbolos y señales de advertencia .................. 3 Precauciones de seguridad.......................... 3 Características ............................. 1 2. INSTALACIÓN ....................4 Instalación de componentes ........................4 2.1.1 Desbloqueo del cierre de seguridad de transporte.................. 4 2.1.2 Instalar la bandeja de pesaje ........................
- Page 48 5.2.7 Reconfiguración de salida de fábrica por defecto..................38 5.2.8 Bloqueo ..............................38 6. MANTENIMIENTO...................39 Calibrado ..............................39 Limpieza ..............................39 Resolución de problemas........................... 39 Información sobre el servicio técnico......................42 7. DATOS TÉCNICOS ..................42 Características técnicas ..........................40 Gráficos y Dimensiones ..........................43 8.
- Page 49 Balanzas Scout Series ES-1 1. INTRODUCCIÓN 1.1 Descripción Las balanzas Scout STX son un instrumento de medición de gran calidad que le proporcionará años de servicio y funcionamiento si lleva a cabo su mantenimiento del modo adecuado. La gama de modelos disponibles van de 120g a 8200g. 1.2 Definición de los símbolos y señales de advertencia Las notas en materia de seguridad se hallan señalizadas con términos y símbolos de advertencia.
- Page 50 ES-2 Balanzas Scout Series Control táctil :Un acceso rápido mediante gráficos a todas las funciones de control, las aplicaciones y las características técnicas del dispositivo. 2. INSTALACIÓN 2.1 Instalación de componentes Consulte las instrucciones y los gráficos que aparecen a continuación para identificar y efectuar el montaje de los componentes de su balanza Scout.
- Page 53 Balanzas Scout Series ES-5 3.3 Principales Funcionesy Menú Principal (MainMenu) Pesaje : Pulsar Cero para configurar el valor que se muestra en pantalla a cero. Colocar un elemento en la bandeja. La pantalla indicará el peso bruto. Tara : Sin que haya ninguna carga en la bandeja, pulsar Tare Tara para configurar el valor mostrado en pantalla a cero.
