Maintenance

The Compass 20 Fluid Head offers high quality surface coatings.
Miller recommends keeping the Fluid Head clean at all times by
using soft brushes and lint free cloth to wipe over the surfaces.
• Do not immerse the Fluid Head in any liquid.
• Do not use stiff brushes, abrasives, harsh detergents
and solvents.

Battery Replacement

The Compass 20 Fluid Head uses a single 11A type - 6 Volt battery
for Illumination. Miller recommends the following batteries to
provide long life performance – GP11A, Duracell MN11 or Vinnic
L1016.
1 Using a Phillips Head #1 screw driver, remove the
RETAINING SCREW and the BATTERY DOOR.
2 Using a small flat screw driver remove the battery.
3 Align the new battery as shown on the back of the
BATTERY DOOR and place into the BATTERY HOUSING,
then push down the battery into place. A small flat screw
driver may be used to push down the battery into the
BATTERY HOUSING.
4 Align the BATTERY DOOR into the body then tighten the
screw lightly.

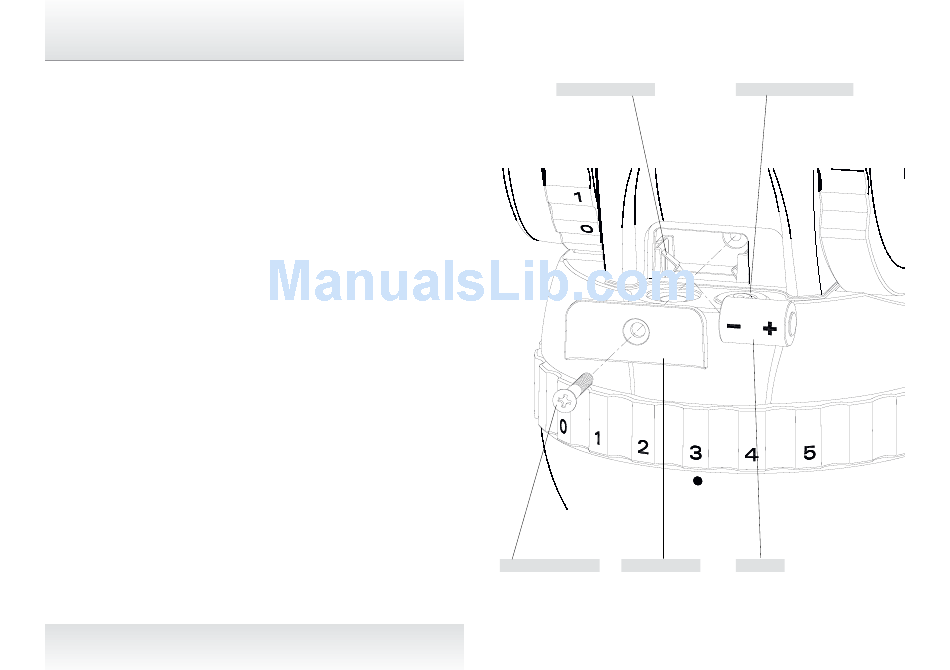

Battery Housing
Retaining Screw Battery Door
Fig. 8
9
Illumination Button
Battery
