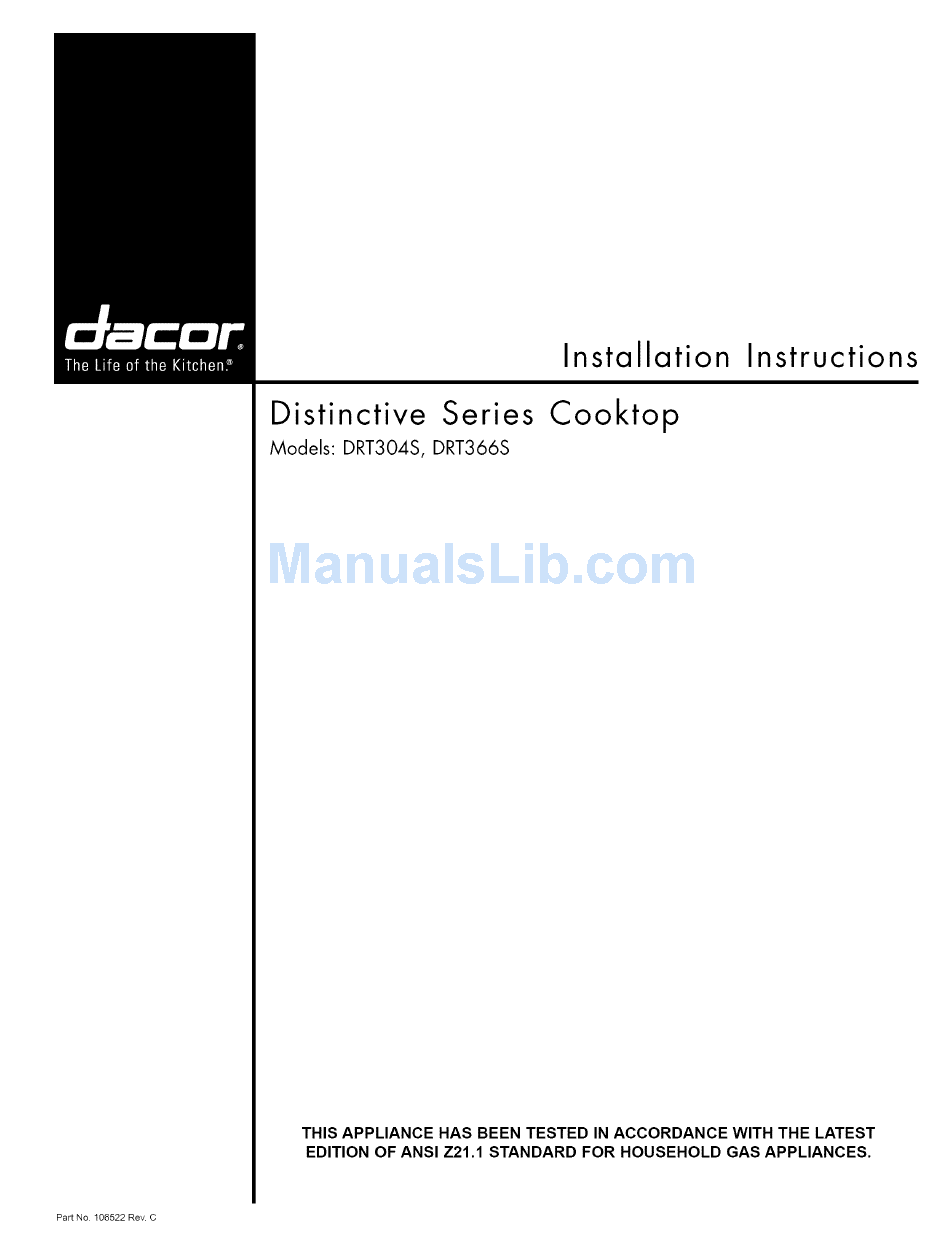

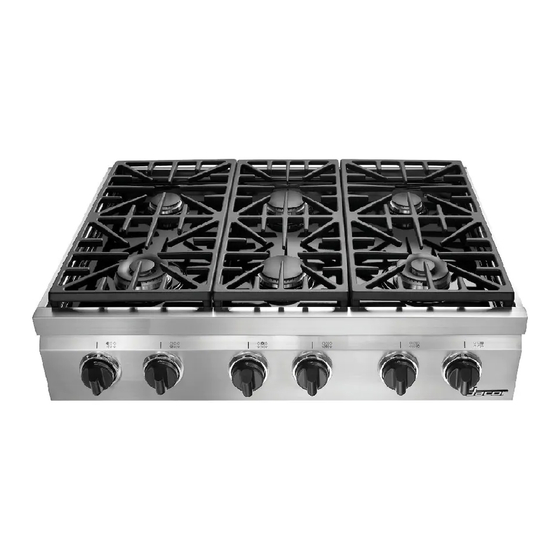

- Page 1 Installation Instructions Distinctive Series Cooktop Models: DRT304S, DRT366S THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1 STANDARD FOR HOUSEHOLD GAS APPLIANCES. Part No. 106522 Rev. C...
-
Page 2: Table Of Contents
(Propane) ALTITUDE High Altitude Model, 4000 ft.(1219 m) and up No character = Equipped for low altitude operation All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2009 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
Supplier. Follow the gas supplier!s instructions. • Always contact the Dacor Customer Service Team yoU cannot c0ntact the gas supplier, Call the fire about problems and conditions that you don't under- department. -
Page 4: General Safety Precautions
Do not allow pot holders to touch hot sur- rear of the cooktop to a combustible material must faces or gas burners use Dacor backguard model AEB3009, AEB3012. Do nOt wear lOOSe or hanging apparel while Using (for model DRT304S) AEB3609, AEB3612 (for model the co0ktop. -
Page 5: Installation Requirements
3/4" gas inlet, connects to regulator from -- bottom or rear of unit, end is recessed 2" (51 mm) from chassis bottom COOKTOP WIDTH (A) SIDE VIEW DRT304S 29 7/8" (759 mm) Product tolerances: +1/16" (+1.6 mm) unless otherwise DRT366S 35 7/8" (911 mm) noted. I=ilmC'l_l_... -
Page 6: Cabinet And Countertop Layout
To reduce the risk of personal injury and to reduce Cabinet and Countertop Layout accumulated smoke in the room, Dacor strongly recom- mends installing a range hood. A hood should project forward a minimum of five (5) inches beyond the face WARNING of the cabinets. -
Page 7: Cabinet/Cutout Dimensions
36" (914mm)* Hood DRT366S 36" (914 mm) 42" (1067 mm)** * Minimum ** Recommended See note 2 NOTE: Models DRT304S and DRT366S are not approved for installation with a 30" (762 mm) raised vent. Cutout for Min. 1 18" (457 mm)"... - Page 8 1" thick mounting platform Min. "1_'1---L--2"(51 1" (25 mm) ollo Cabinet face below countertop overhang Cabinet/Countertop Cutout Dimensions - Top View Model' Width 30" 13 3/8" DRT304S (762 mm) (340 mm) 36" 16 5/8" DRT366S (914 mm) (422 mm) _mC_...
-
Page 9: Installation Instructions
Do • SimmerSear burner rings (see table below) not overtighten the bolts. • Hold down bolts/washers (2 sets) • Regulator • Dacor Stainless Steel Cleaner • Literature kit INCLUDED GRATES AND BURNER PARTS Quantity Quantity for Model DRT304S DRT366S... -
Page 10: Gas Line Connection
Carefully push each knob on until it stops. Attach the remaining knobs which operate the standard burners I1_1. Control Panel- DRT366S SimmerSear Burner Knob Layout Standard Burner Knob Layout Line Connection... -
Page 11: Burner Component Installation
On model burner base. DRT366S, the center grate is smaller than the other two. Ridge on bottom STEP 3... -
Page 12: Verifying Proper Operation
NOTE: If the cooktop does not operate properly, follow Verifying Proper Operation these troubleshooting steps: • Verify that power and gas are supplied to the cooktop. WARNING • Check to make sure that the power plug is connected Make sure that power to the e ectrical outlet is turned to the electrical outlet and that power is turned on at Off at the circuit breaker or fuse box and that the gas the circuit breaker or fuse box. -
Page 13: Wiring Diagrams
r -- o_o _ o_o _ o___ o_o _ :70o °/_ ctacor... - Page 14 "0 <_ 0,-09 12 c_acar...
- Page 15 The Life of the Kitchen? American Made*Family Owned Dacor • 600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 • Phone: (800) 793-0093 • Fax: (626)403-3130 • www.Dacor.com...
