Dacor Distinctive Series Planning Manual

Document # PG04-003
◊ Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
◊ This appliance must be installed in accordance with the
accompanying installation instructions.

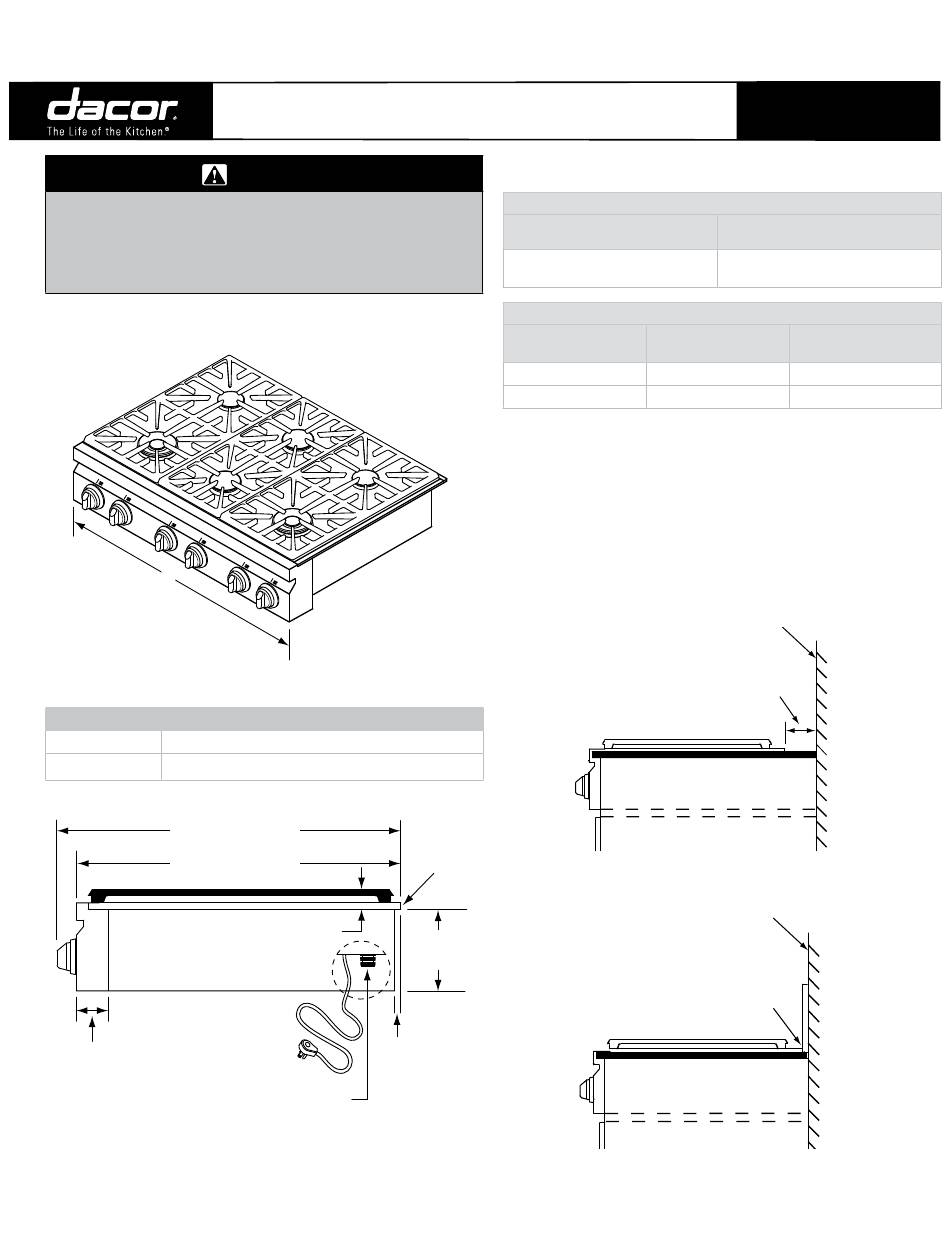

Product Dimensions

A
DRT304S
DRT366S
28 1/8" (714 mm)
25 7/8" (657 mm)
1 5/8" (41 mm) cooking surface
height (grate level) above
countertop
4" (102 mm)
3/4" gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2" (51 mm) from chassis bottom
www.Dacor.com
Phone: (800) 793-0093
DRT304S, DRT366S
30" and 36" Wide, Distinctive Series
Slide-in Gas Cooktops
WARNING
Product tolerances:
±1/16" (±1.6 mm)
unless otherwise noted
COOKTOP WIDTH (A)
29 7/8" (759 mm)
35 7/8" (911 mm)
Power cord
32" long
SIDE VIEw

Electrical and Gas Supply Requirements

Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)
Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 p.s.i.

Cabinet and Countertop Layout

Installation of a non-combustible material* (up to the hood) or
a backsplash is always recommended, and mandatory if the
distance to the back wall from the cooktop is less than 2 1/2"
(Figure 2). When installing a backguard, use only Dacor model
numbers AEB3009, AEB3012 (DRT304S), AEB3609 or AEB3612
(DRT366S).
Trim:
1/2"
(13 mm)
thick
7 3/4"
(197 mm)
5/8" Min.
(16 mm)
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
ELECTRIC CIRCUIT REQUIREMENTS
Total Connected Load
0.25 Amp @ 120 Vac, 60 Hz
GAS SUPPLY PRESSURE REQUIREMENTS*
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (64 mm) Min. to
combustible rear wall
SIDE VIEw wIthoUt BAckGUArD
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
SIDE VIEw wIthoUt BAckGUArD
Revised 06/22/09 Page 1/3
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
4.18
