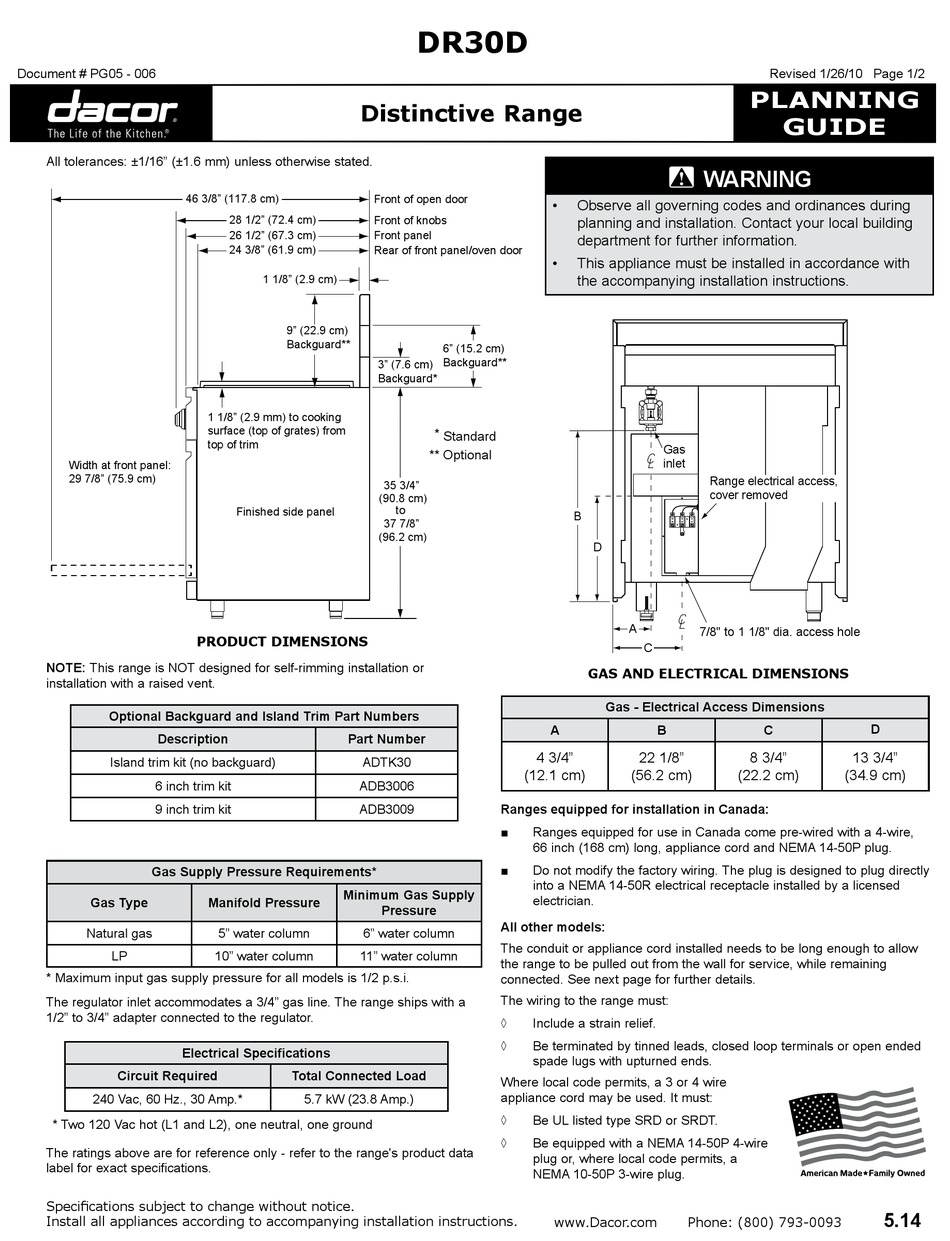

Dacor Millenia DR30D Planning Manual

Document # PG05 - 006
All tolerances: ±1/16" (±1.6 mm) unless otherwise stated.
46 3/8" (117.8 cm)
Width at front panel:
29 7/8" (75.9 cm)
NOTE: This range is NOT designed for self-rimming installation or
installation with a raised vent.
Optional Backguard and Island Trim Part Numbers
Description
Island trim kit (no backguard)
6 inch trim kit
9 inch trim kit

gas Supply Pressure Requirements*

gas Type
Natural gas
LP
* Maximum input gas supply pressure for all models is 1/2 p.s.i.
The regulator inlet accommodates a 3/4" gas line. The range ships with a
1/2" to 3/4" adapter connected to the regulator.

Electrical Specifications

Circuit Required
240 Vac, 60 Hz., 30 Amp.*
* Two 120 Vac hot (L1 and L2), one neutral, one ground
The ratings above are for reference only - refer to the range's product data
label for exact specifications.
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
Distinctive Range
Front of open door
28 1/2" (72.4 cm)
Front of knobs
26 1/2" (67.3 cm) Front panel
24 3/8" (61.9 cm) Rear of front panel/oven door
1 1/8" (2.9 cm)
9" (22.9 cm)
Backguard**
1 1/8" (2.9 mm) to cooking
surface (top of grates) from
top of trim
Finished side panel
PRoDUct DImENsIoNs
Part Number
ADTK30
ADB3006
ADB3009
Minimum gas Supply
Manifold Pressure
5" water column 6" water column
10" water column 11" water column
Total Connected Load
5.7 kW (23.8 Amp.)
DR30D
•
•
6" (15.2 cm)
Backguard**
3" (7.6 cm)
Backguard*
*
Standard
** Optional
35 3/4"
(90.8 cm)
to
37 7/8"
(96.2 cm)
A
4 3/4"
(12.1 cm)
Ranges equipped for installation in Canada:
■ Ranges equipped for use in Canada come pre-wired with a 4-wire,
66 inch (168 cm) long, appliance cord and NEMA 14-50P plug.
■ Do not modify the factory wiring. The plug is designed to plug directly
into a NEMA 14-50R electrical receptacle installed by a licensed
electrician.
Pressure
All other models:
The conduit or appliance cord installed needs to be long enough to allow
the range to be pulled out from the wall for service, while remaining
connected. See next page for further details.
The wiring to the range must:
◊ Include a strain relief.
◊ Be terminated by tinned leads, closed loop terminals or open ended
spade lugs with upturned ends.
Where local code permits, a 3 or 4 wire
appliance cord may be used. It must:
◊ Be UL listed type SRD or SRDT.
◊ Be equipped with a NEMA 14-50P 4-wire
plug or, where local code permits, a
NEMA 10-50P 3-wire plug.
www.Dacor.com
PLANNING
wARNINg
Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with
the accompanying installation instructions.
Gas
inlet
Range electrical access,
cover removed
B
D
A
7/8" (2.2 cm) dia. electrical
7/8" to 1 1/8" dia. access hole
connection hole in bottom*
C
GAs AND ELEctRIcAL DImENsIoNs

gas - Electrical Access Dimensions

B
22 1/8" 8 3/4"
(56.2 cm) (22.2 cm)
Phone: (800) 793-0093
Revised 1/26/10 Page 1/2
GUIDE
D
C
13 3/4"
(34.9 cm)
5.14
