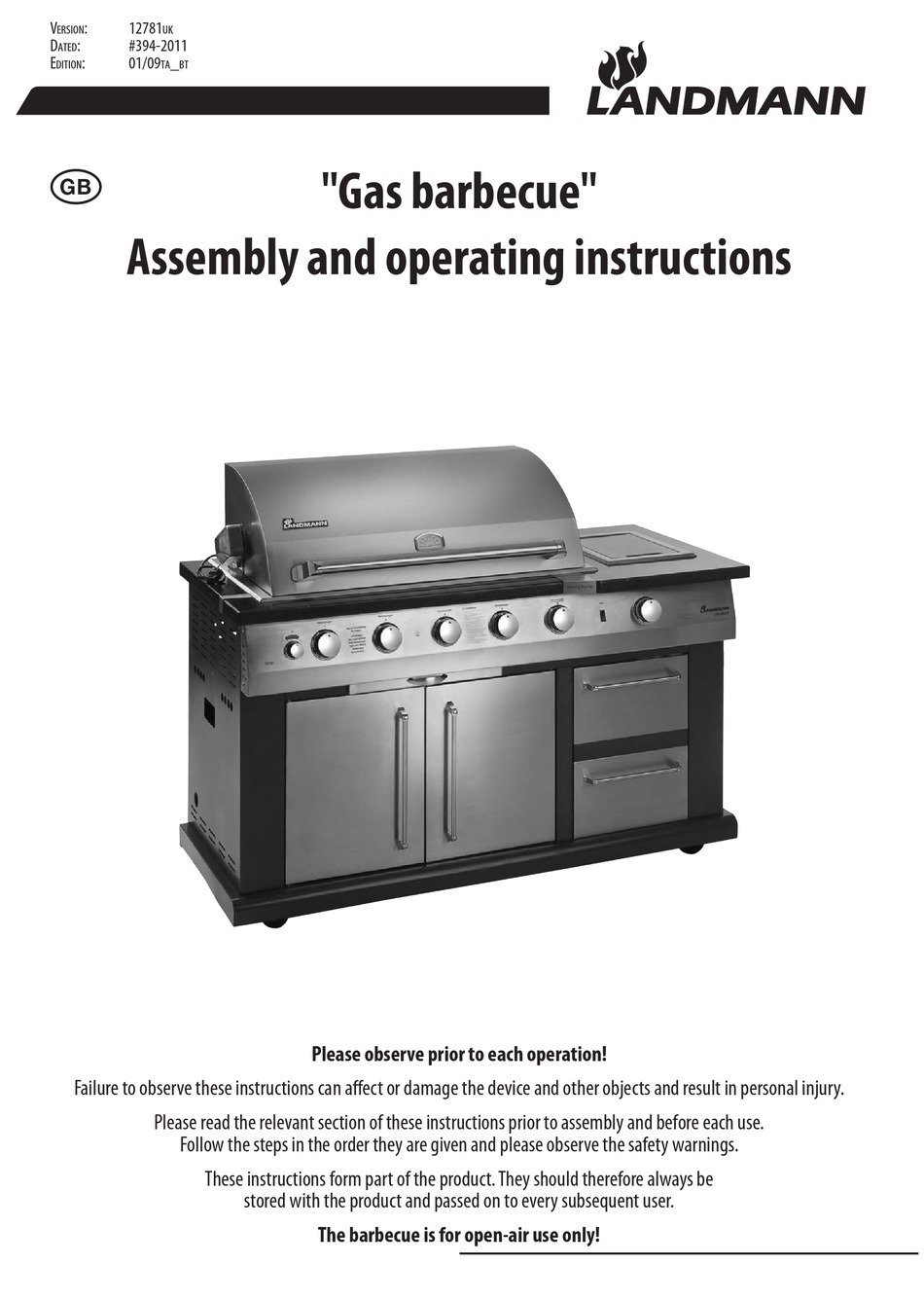

Assembly and operating instructions
Failure to observe these instructions can affect or damage the device and other objects and result in personal injury.
Please read the relevant section of these instructions prior to assembly and before each use.
Follow the steps in the order they are given and please observe the safety warnings.
These instructions form part of the product. They should therefore always be
"Gas barbecue"
Please observe prior to each operation!
stored with the product and passed on to every subsequent user.
The barbecue is for open-air use only!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12781 and is the answer not in the manual?

Questions and answers

Summary of Contents for Landmann 12781

  • Page 1 12781 ersion #394-2011 ateD 01/09 Dition "Gas barbecue" Assembly and operating instructions Please observe prior to each operation! Failure to observe these instructions can affect or damage the device and other objects and result in personal injury. Please read the relevant section of these instructions prior to assembly and before each use.
  • Page 2: Table Of Contents

    Light the side burner ..........................19 Using rotisserie ...........................20 Switching off the barbecue .........................21 Cleaning ..............................22 Barbecue ............................22 Gas system ............................22 Maintenance .............................23 Barbecue ............................23 Gas system ............................23 Illumination ............................23 Environmental information and disposal measures ..................24 Troubleshooting ............................25 Declaration of conformity .........................27 2 LANDMANN...
  • Page 3: Technical Specifications

    -approved hose (max. 1.5 m) Ignition Electronic ignition Flame regulation infinitely adjustable 0 - max. Electronic rotisserie drive wheel Connection 230 V AC , 50 Hz Electronic illumination Connection 230 V AC , 50 Hz Bulb Halogen 12 V, 20 W LANDMANN...
  • Page 4: Delivery Specifications

    * Position numbers in the descriptions of the assembly steps Overview Grill hood, tiltable b Side burner Multi-purpose drawer d Cabinet Grease collection tray Front bar with controls g Grill h Rotisserie Warming rack Illumination Cooking plate Operational elements A1 A1 A1 A2 4 LANDMANN...
  • Page 5: Function

    (G5) and the adjusting element into the burner. A battery-powered igniter produces sparks on the burners, which light the gas. The heat can then be controlled by using the flame regulator (A). If the gas supply is closed via a flame regulator (A), the flame is extinguished. LANDMANN...
  • Page 6: Utilisation

    • if LANDMANN-Peiga GmbH & Co. KG original spare parts are not used. Any alterations made to the barbecue can be dangerous! Do not therefore repair the barbecue yourself, unless the steps to do so are set out in these instructions.
  • Page 7: Safety Instructions

    ... a possible danger that can result in damage to property if the specified CAUTION measures are not observed. Notes on use Pictogram Note on ..a useful function or tip. LANDMANN...
  • Page 8: Danger "Hot Surfaces And Parts

    Pull the holding brake on the right castor during operation. Safety measures during barbecuing: • Wear protective barbecue gloves. • Never leave the hot barbecue unattended. Keep children, mentally or physically handicapped persons and pets at a safe distance. 8 LANDMANN...
  • Page 9: Danger "Gas Is Highly Flammable

    The barbecue must not be used if the connections for the gas supply are porous or faulty. This also applies, for example, to hoses or fittings blocked by insects, as this can lead to a dangerous flashback. • Do not store spare gas cylinders near the barbecue. LANDMANN...
  • Page 10: Danger "Gas Displaces Oxygen

    – Fit gas cylinder valve with cap nut and safety cap. – Do not store gas cylinder in areas below ground level, or in or near stairways, hallways or passages between building for pedestrians or cars. – Always store gas bottles upright, even if they are empty. 10 LANDMANN...
  • Page 11: Danger "Electric Shock Resulting In Death

    The same applies to an extension cable if you use one. • Protect the motor and the light from moisture. Unplug the mains plug if it starts to rain. • Never touch the mains plug with wet hands! LANDMANN...
  • Page 12: Assembly

    If, despite careful factory checks, a component is missing, please contact our customer service department (see the last page). We will then immediately attend to your request. • Remove all of the packing material. 12 LANDMANN...
  • Page 13: Assembly Procedure

    2. Insert the three grills (4) and the cooking plate (6). 3. Insert the warming racks (5) into their guide slots. 4. Unscrew the cap for the ignition knob (6), insert an AA battery (negative pole first) and then carefully replace the cap. The assembly process is now complete. LANDMANN...
  • Page 14: Connecting And Disconnecting The Gas Cylinder

    You can locate leaks in the gas system using a leak detection agent. These are available at DIY shops or from liquid gas suppliers. Please follow the operating instructions of the leak detection agent. The following parts are included in delivery. They correspond to the standards applicable in the country to which they have been supplied by LANDMANN. • Pressure reducer Preset and -approved pressure regulator, max.
  • Page 15: Connecting The Gas Cylinder

    Repeat the leak test. 8. If you do not wish to use the barbecue immediately, close the bottle valve (turn operating lever (G2) to a 3 o'clock position). LANDMANN...
  • Page 16: Disconnecting The Gas Cylinder

    – Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, or in or near stairways, hallways or passages and thoroughfares between buildings. – Always store gas cylinders upright, even if they are empty! 16 LANDMANN...
  • Page 17: Operation

    2. Turn the operating lever (G2) to the 6 o'clock position. 3. Check to make sure that the gas system is leak-proof. Otherwise, close the cylinder valve immediately (turn operating lever (G2) to a 3 o'clock position). LANDMANN...
  • Page 18: Igniting The Main Burner

    To switch off the burners (extinguish the flame) press and turn the flame regulators (A1, A2) clockwise to "OFF". The gas supply is only disconnected if all the flame regulators have been set to OFF. 18 LANDMANN...
  • Page 19: Light The Side Burner

    Cookware that is unsuitable for gas appliances may be damaged. The size of the cookware used must be suited to that of the side burner. The cookware must be able to stand securely on the side burner. LANDMANN...
  • Page 20: Using Rotisserie

    • Before you insert or remove the rotisserie, extinguish the flames on all burners (turn all flame regulators to "Off") and turn off the motor. Otherwise you may burn yourself or be injured by the turning sharp-edged skewer. 20 LANDMANN...
  • Page 21: Switching Off The Barbecue

    (e.g. cover with a canvas cover). 5. If the heater is not going to be used for a prolonged period: – Disconnect the gas cylinder (see chapter "Disconnecting the gas cylinder"). – Store the barbecue in a dry place. LANDMANN...
  • Page 22: Cleaning

    • After the grill has cooled down carefully vacuum the remaining particles away. Gas system All of the parts through which gas is transferred should only be cleaned by an expert. Never dismantle the setting device! 22 LANDMANN...
  • Page 23: Maintenance

    7. Take out the defective bulb and replace it with a new one of the same type (halogen, 12 V, 20 W). 8. Replace the light cover and secure it with the screw referred to in Step 5. The grill is once more ready to use. LANDMANN...
  • Page 24: Environmental Information And Disposal Measures

    Observe the local regulations. Barbecue Pay attention to cleanliness when handling the barbecue. To dispose of the barbecue properly, disassemble it into its individual parts. Recycle the metal and plastic components. Observe the local regulations. 24 LANDMANN...
  • Page 25: Troubleshooting

    The gas system should be cleaned by a gas specialist Temperature on grill too low Pre-heating time is too short Close the lid and set the flame regulator to Max Gas outlets on the burner are Remove blockage from burner blocked LANDMANN...
  • Page 26 Remove any large areas of fat prior to barbecuing or place the meat on a grill plate or reduce the barbecue temperature The surrounding environment is too Switch off the barbecue and move it to a windy location that is sheltered from the wind 26 LANDMANN...
  • Page 27: Declaration Of Conformity

    Declaration of Conformity DIN EN 498 (Oktober 2009) 18.10.2010 LANDMANN...
  • Page 28 LANDMANN® Ltd. Unit 6 Blackstone Road, Stukeley Meadows Industrial Estate, Huntingdon, Cambs,PE29 6EF, United Kingdom Hotline Monday to Thursday 9am to 5pm, Friday, 9am to 4pm. +44 0871-231-1990 28 LANDMANN...
