Braeburn 7320 Setup Manual

Hide thumbs Also See for 7320:

Advertisement

Quick Links

Download this manual See also: User Manual
Wi-Fi Setup Guide
®
Model 7320
Universal Programmable
Smart Wi-Fi Thermostat
Leave this Setup Guide
with thermostat.
7320-105-03

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Braeburn 7320

Summary of Contents for Braeburn 7320

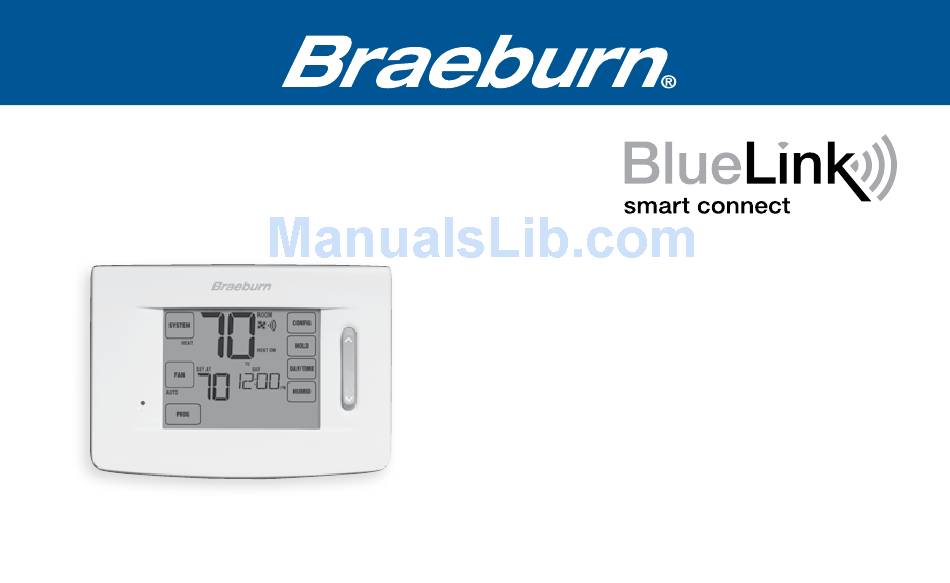

  • Page 1 Wi-Fi Setup Guide ® Model 7320 Universal Programmable Smart Wi-Fi Thermostat Leave this Setup Guide with thermostat. 7320-105-03...
  • Page 2 Wire and Install Thermostat • Properly wire and configure thermostat. Refer to the Installer Guide. • Refer to the User Manual for programming and maintenance. NOTE: Thermostat must have 24 VAC with common “C” wire to use Wi-Fi. Helpful videos can be found at www.bluelinksmartconnect.com/wifi.
  • Page 3 Set-Up for Connection Before beginning setup you will need to: • Know your Wi-Fi network name and password • Have a valid e-mail address • Get the FREE app Apple Devices: ® Download the BlueLink Smart Connect application ® App Store from the Apple ® Android Devices: Download the BlueLink Smart Connect application ® from the Google Play Store Desktop Computer: Go to www.bluelinksmartconnect.com and create an account.
  • Page 4 Login and Register Open the application or select login on the www.bluelinksmartconnect.com website. Select REGISTER and complete the information on the registration screens. You will need a valid e-mail address to complete the registration. Once you reach the Create Account screen, select REGISTER.

  • Page 5: Enter Serial Number

    Enter Serial Number Enter the thermostat serial number. You can locate this number on the back of the thermostat or on the enclosed thermostat registration card. Enter this number into the application and select ENTER. NOTE: If you removed the thermostat to locate the serial number, make sure to reconnect it before selecting ENTER.
  • Page 6 Enable Wi-Fi on Thermostat On the thermostat, press and hold the CONFIG and DAY/TIME buttons for 3 seconds. The display will alternate the words WIFI and SKIP and the symbol will flash. Press the button until the word SCAN appears in the display. NOTE: If you are already connected to a Wi-Fi network, you will see the network name (SSID)
  • Page 7 Connect to Thermostat Return to the application and select OK. The word WAIT will appear in the thermostat display. The application will prompt you to go to your smartphone, tablet or computer Wi-Fi settings and select the BlueLink_WiFi network. See samples shown NOTE: Do not exit the application.

  • Page 8: Complete Setup

    Complete Setup After selecting the BlueLink_WiFi network, use the home key to return to the application and select OK. Once a connection is made, Connection Successful will appear in the application screen. At thermostat, your network name followed by the MAC address will appear. At thermostat, press RETURN to exit Wi-Fi setup mode.
  • Page 9 Changing Your Wi-Fi Settings First Clear Your Thermostat Wi-Fi Settings 1. Press and hold the CONFIG button for 1 second. 2. The display will change showing the first User Option. 3. Press NEXT until you see the word WIFI in the display. 4.
  • Page 10 Apple Inc. All other trademarks Technical Assistance: www.braeburnonline.com are the property of their respective owners. 844-BLU-LINK (844-258-5465) (U.S.) 630-844-1968 (Outside the U.S.) 7320-105-03 ©2015 Braeburn Systems LLC • All Rights Reserved • Made in China.
