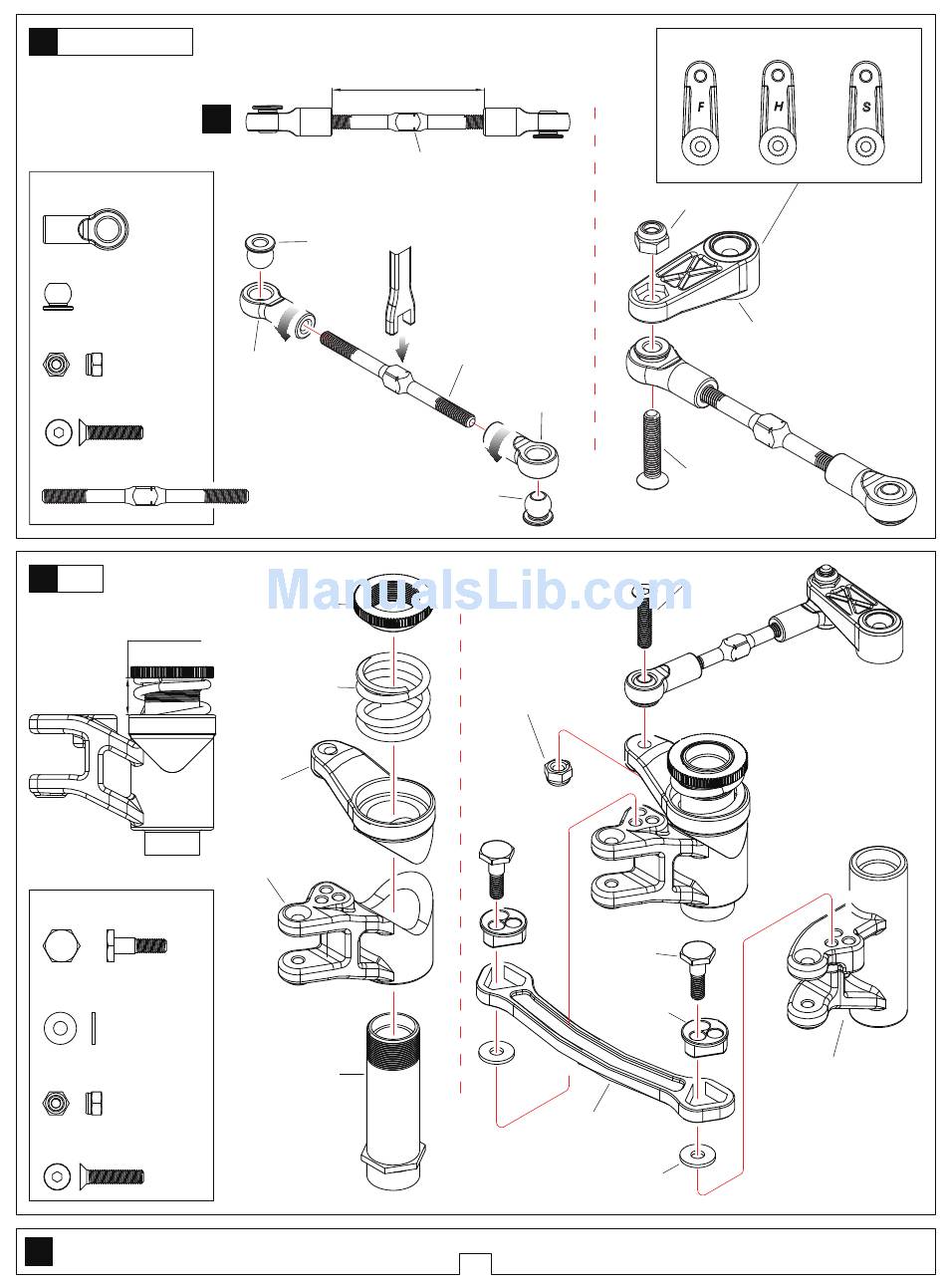

Team C T8TE Instructions And Tips page 5

1
Servo Saver Turnbuckle
Bag
1:1
T08760 5.8 Ball End
............2
T08759 5.8 Ball stud
........................2
T08666 M3 Nylon Nut
.....................1
T08674 M3x14 Screw
.........1
TG8019 3x45 Turnbuckle
............1
A
2 -
Buffer
Bag
Approx.8mm
T08651 Buffer Screw
......2
T02081 3x7x0.8 Washer
.....................2
T08666 M3 Nylon Nut
.....................1
T08674 M3x14 Screw
.........1
True-to -scale diagram
1:1
A
-
Approx.33mm
▲Projection.Note direction
T08759
5.8 Ball stud
T08760
5.8 Ball End
T08650
Servo Saver Nut
T08650
Servo Saver Spring
T08762
Servo Saver-Top
T08762
Servo Saver-Bottom
T08650
Servo Saver Body
4mm
TG8019
3x45 Turnbuckle
T08760
5.8 Ball End
T08759
5.8 Ball stud
T08666 M3
T08651
Buffer Screw
T08651
Steering Rack
T02081 3x7x0.8
1
Select the servo horn matching the servo being used.
Futaba-25T Hitec-24T
T08666 M3
T08620
Steering Servo Horn-F
T08674 M3x14
T08674 M3x14
T08651
Buffer Bushing
Sanwa/JR/KO-23T
T08762
Servo Saver-Left
