Team C T8TE Instructions And Tips page 10

11

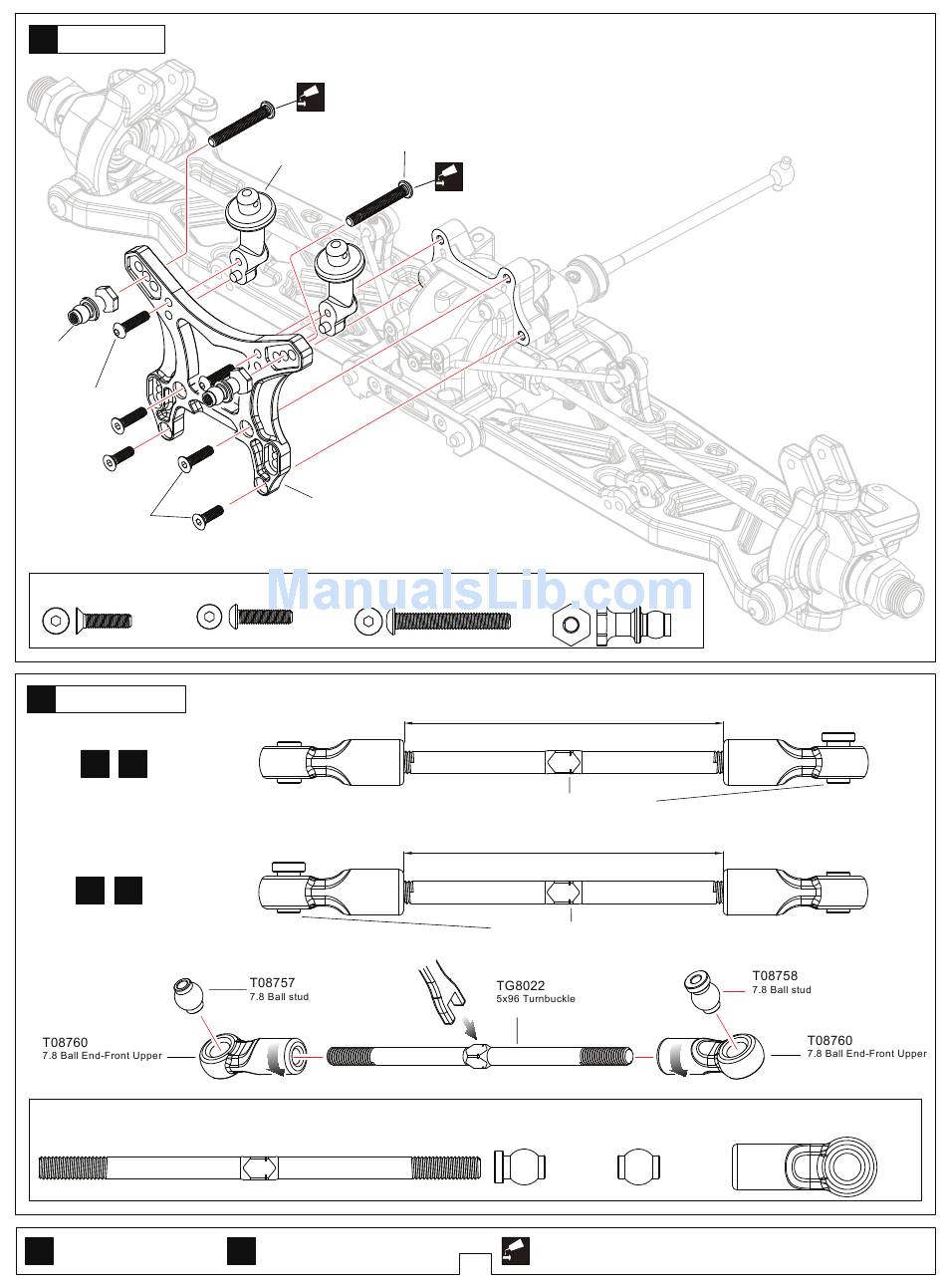

Front Shock Tower
Bag
T08622
Ball stud
T08673 M3x12
T08674 M3x12
T08674 M3x12 Screw
T08673 M3x12 Screw
......4
12
Front Upper Turnbuckle
Bag
Front Upper-Left
1:1 x1
Front Upper-Right
1:1 x1
TG8022 5x96 Turnbuckle
True-to -scale diagram
1:1
D
-
Screw
Cement
T08673 M3.5x25
TG8005
Front Body Mount
TG8012
Front Shock Tower
T08673 M3.5x25 Screw
......2
D
-
Assemble as many times as specified
x1
Screw
Cement
T08622 Shock cap ball
...2
Approx.69.5mm
▲Projection.Note direction
Approx.69.5mm
▲Projection.Note direction
5mm
T08758 7.8 Ball stud
......2
.........2
Apply threadlock
6
Screw
Cement
...2
T08757 7.8 Ball stud T08760 7.8 Ball End-Front Upper
.........2
......4
