Summary of Contents for AUDAC MERO5
- Page 1 MERO5 User & Installation Manual www.audac.eu...

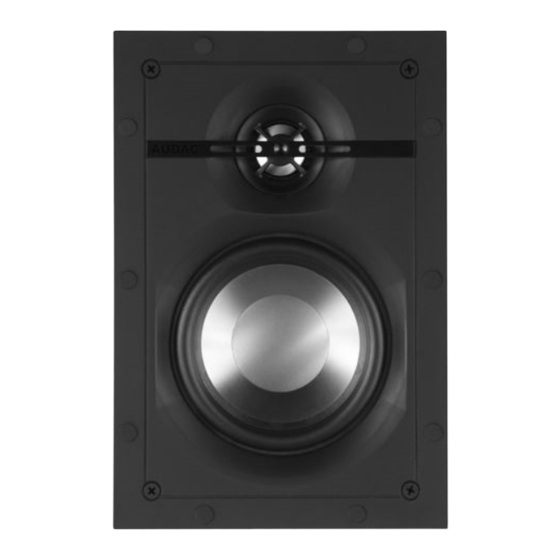

- Page 3 The selection of high-grade materials in combination with accurate acoustics craftmanship makes the MERO speakers superior in their class. The medium sized MERO5 consists of a 5” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
-
Page 6: Installation Procedure
Installing the MERO Introduction The MERO speakers feature a quick-fixing mechanism, which allows quick and easy installation of the loudspeakers in only a few minutes. The installation of the MERO speakers requires a minimum amount of installation skills. Before the loudspeaker is installed, the location whereto it will be mounted should be carefully checked to make sure the surface can support the weight of the speaker and no lines for water, gas, electricity or other supplies are crossing this point. - Page 7 4) Connect the loudspeaker connection cable to the gold plated spring clamp connectors. Press the button of the corresponding terminal down and insert the connection cable. After releasing the button, the cable is connected to the loudspeaker. The Red terminal indicates positive (+) pole and the Black terminal indicates the negative (-) pole.
-
Page 8: Additional Information
Additional Information Technical specifications RMS Power 50 Watt Max. Power 100 Watt Nominal impedance 8 Ohm Sensitivity 1W / 1m 85 dB Sound pressure Max W / 1m 102 dB Frequency response -3 dB 70 Hz - 20 kHz Cross-over frequency 3.0 kHz Cross-over network Passive Built-in...
