AUDAC MBK523/G Installation Manual

MBK523/G

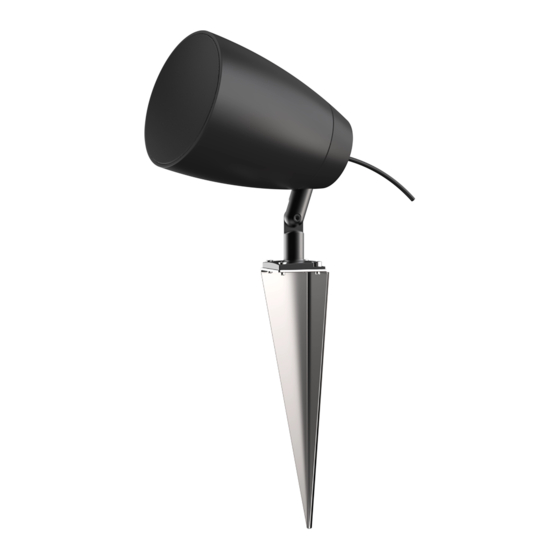

The MBK523/G ground pin is specially designed for mounting loudspeakers. The optional stainless steel ground pin makes it
possible to provide all kinds of gardens with the premium sound experience of the outdoor loudspeaker.

Installation:

1
Installation manual

Included hardware:

M6 bolt x 10 mm
Ground pin
Step 1:
Place the ground pin, without a speaker
attached, in the desired location.
Check for the presence of large rocks and
if the soft soil is deep enough.
Place the ground pin in the ground without
the use of any tools. The use of tools such
as hammers, drills etc. may damage the
ground pin.
Step 2:
Mount the speaker to the ground pin by
securing it with the four M6 bolts provided.
The mounting holes on the ground pin are
tapped, making the use of nuts unneces-
sary.
MBK523/G installation guide
x4
