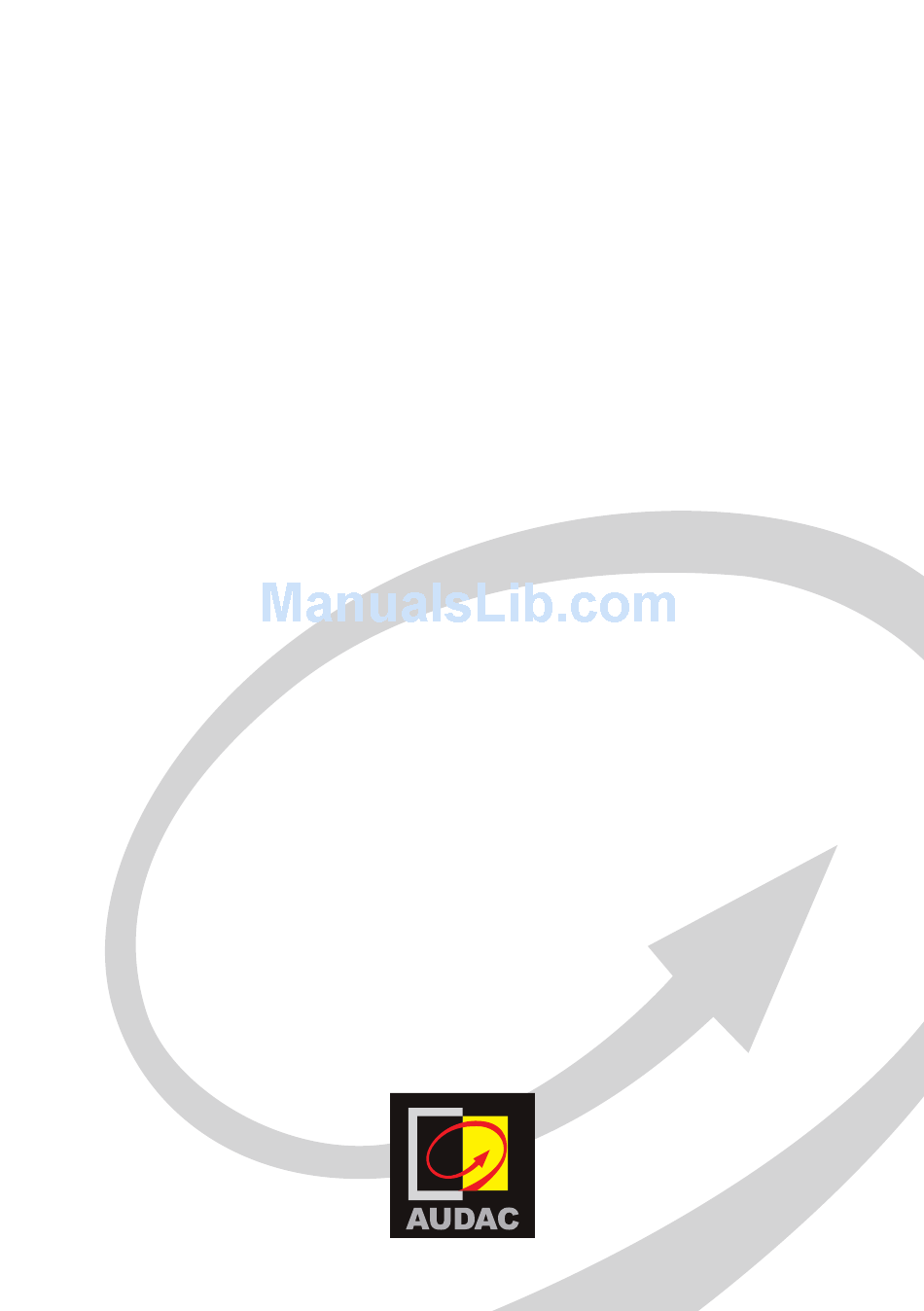

Page 1: Installation Manual

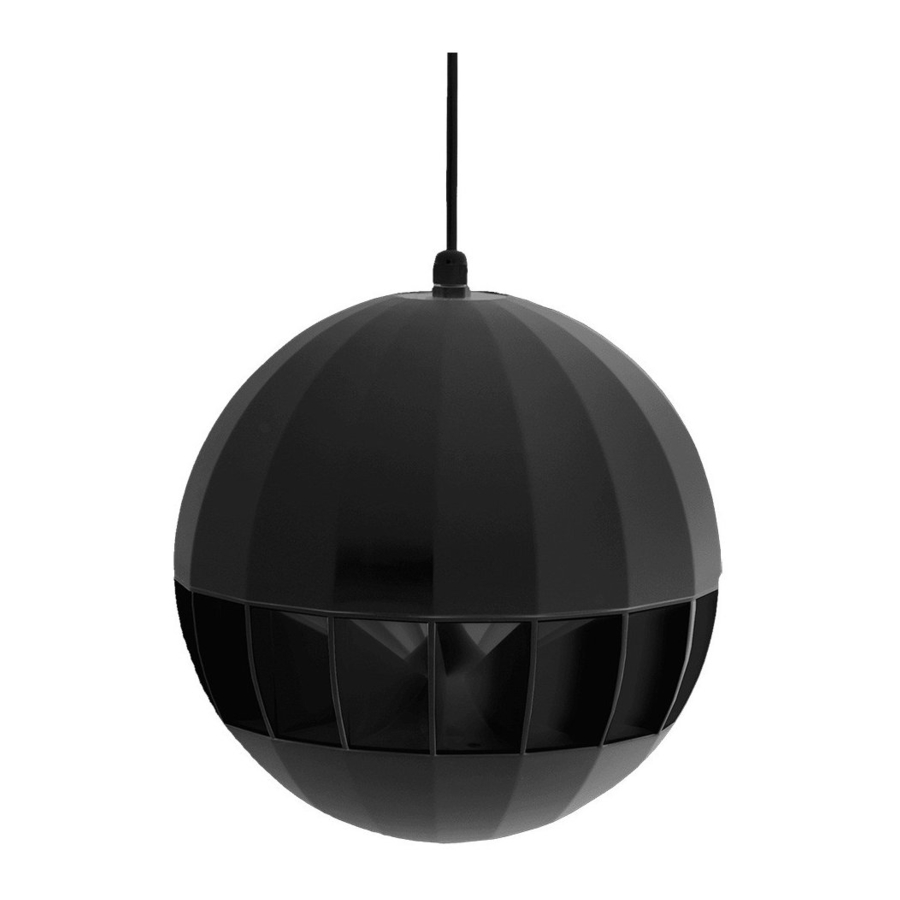

ASP20 Installation Manual www.audac.eu... - Page 2 Introduction 360° Spherical loudspeaker The ASP20 is a 20 Watt, 360° radiating spherical loudspeaker, fitted with a 8” full range driver and a 100V line transformer with different power tappings for 20W, 10W, 5W and 2.5W. Its wide smooth frequency response and high efficiency ensure high fidelity reproduction of music and speech with a 360°...
- Page 3 After the outer jacket is removed, the steel core needs to be terminated by a loop, making it possible to hang the steel cable core to the safety hook. The termination of the steel core should be done with the included screw cable clamp.
-
Page 4: Additional Information
Additional information Technical specifications RMS Power at 100 Volt 20 Watt Line transformer power taps 20 Watt / 500 Ohm (Red) 10 Watt / 1000 Ohm (Yellow) 5 Watt / 2000 Ohm (Blue) 2.5 Watt / 4000 Ohm (Green) Sensitivity (1W/1m) 92 dB Max SPL (Max W / 1m) 104 dB...
