Paradox NV35MR Installation Manual page 2

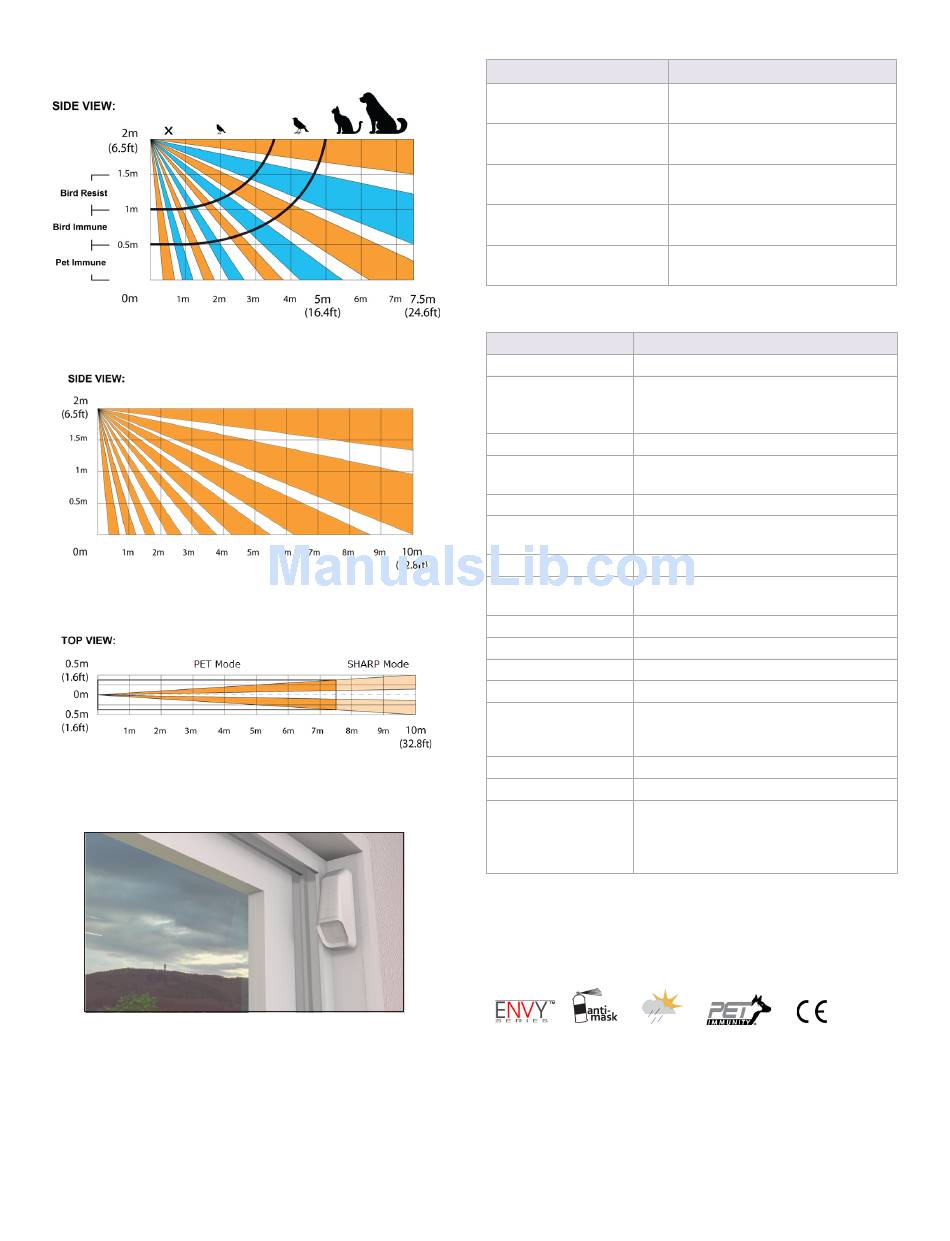

Beam Pattern
PET Mode
SHARP Mode
Top View
PET Immunity Mode Installation
LED Display
Feature
Tamper open
PIR sensitivity level setting
Alarm detection
Booting/Tamper close
Anti-mask detection
Technical Specifications
Model Number
Infrared sensor type 2 dual elements
Detection range • PET Immunity mode: 7.5m x 2m
(25 x 7 ft)
• Sharp mode: 10 x 2m (33 x 7 ft)
Super Pet Immunity Pet size approximately 50cm
Anti- mask Active IR detection for blocking 30cm and
sprayed liquid
Input voltage 3VDC=2 x1.5VDC AA Alkaline batteries
Current consumption 40µA in Standby
30mA in Alarm/RF Transmitting
Battery life 3 years of typical use
Low battery voltage 2.5V
Signal
Compatibility RTX3 and Magellan systems
Outdoor protection IP54
Operation temperature -35°c to +50°c
Relative humidity 95% non-condensing
RF Frequency Dual Band: 433.92 MHz /868.35 MHz
IMPORTANT: For US and Canada, only 433.92
MHz is used
Dimensions 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.)
Weight 100g / 0.2 lb
CE, EN50131-2-2 Grade 2, Class IV
Certifications
EN 50131-6 Type C
Certification Body: Applica Test &
Certification
LED Status Indicator
Green: ON for 0.3 seconds every 30
seconds
Green: Flashes 1-3 times according to
the selected level
Red: ON for 2 seconds
Power Save mode: Red blinks
Green/Red alternating flashes for 30
seconds
Orange: Flashes ON/OFF 3 times every
60 seconds
