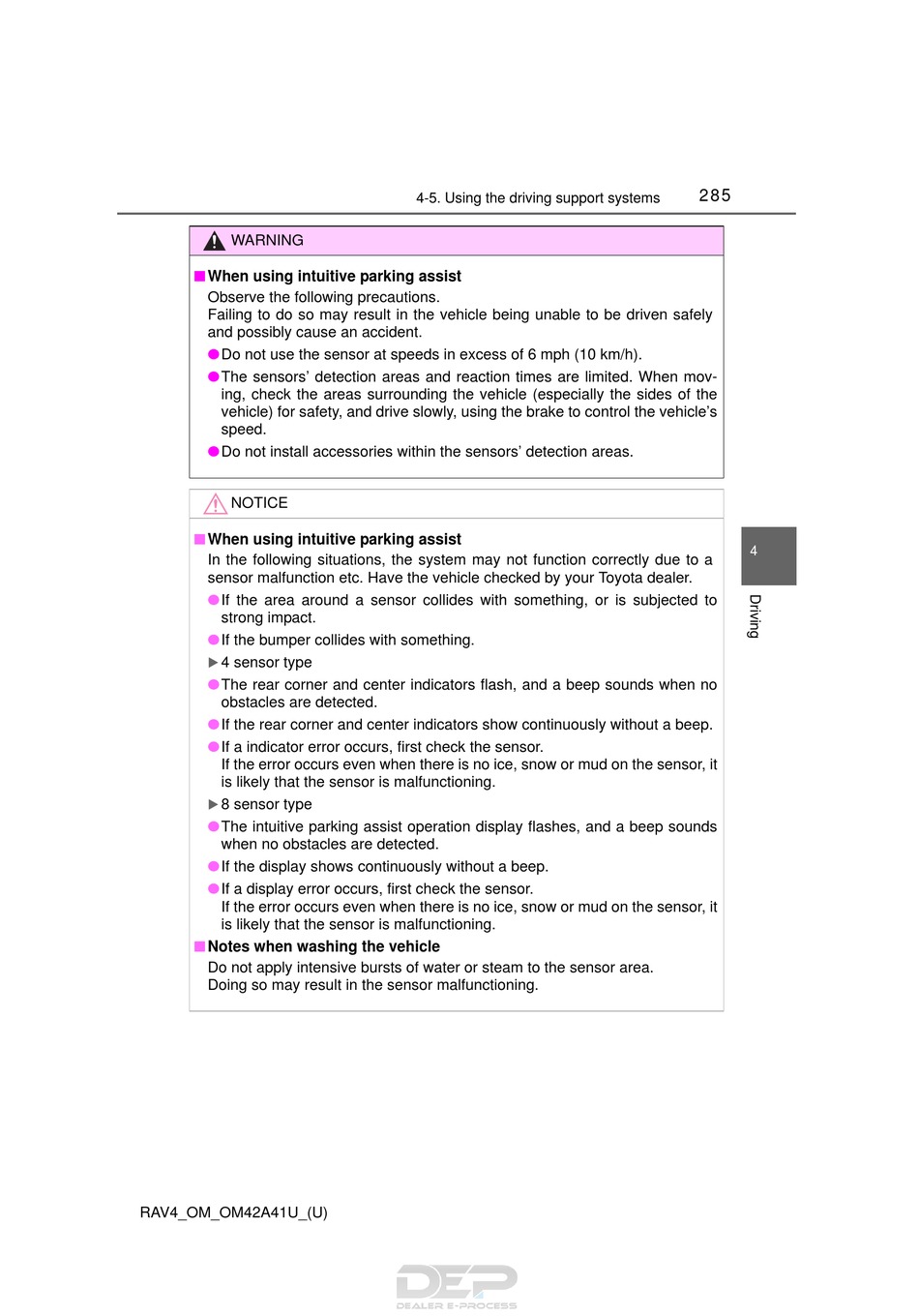

Toyota 2016 RAV4 Owner's Manual page 285

WARNING
■
When using intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
●
Do not use the sensor at speeds in excess of 6 mph (10 km/h).
●
The sensors' detection areas and reaction times are limited. When mov-
ing, check the areas surrounding the vehicle (especially the sides of the
vehicle) for safety, and drive slowly, using the brake to control the vehicle's
speed.
●
Do not install accessories within the sensors' detection areas.
NOTICE
■
When using intuitive parking assist
In the following situations, the system may not function correctly due to a
sensor malfunction etc. Have the vehicle checked by your Toyota dealer.
●
If the area around a sensor collides with something, or is subjected to
strong impact.
●
If the bumper collides with something.

4 sensor type
●
The rear corner and center indicators flash, and a beep sounds when no
obstacles are detected.
●
If the rear corner and center indicators show continuously without a beep.
●
If a indicator error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.

8 sensor type
●
The intuitive parking assist operation display flashes, and a beep sounds
when no obstacles are detected.
●
If the display shows continuously without a beep.
●
If a display error occurs, first check the sensor.
If the error occurs even when there is no ice, snow or mud on the sensor, it
is likely that the sensor is malfunctioning.
■
Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
RAV4_OM_OM42A41U_(U)
4-5. Using the driving support systems
285
4
