Glow-worm SwiftFlow 120 Servicing Instructions page 2

The instructions consist of three parts, Installation,
Servicing and Instructions for Use which includes the
Guarantee Registration Card. The instructions are an
integral part of the appliance and must, to comply with
the current issue of the Gas Safety (Installation and Use)
Regulations, be handed to the user on completion of the
installation.
CE Mark
This boiler meets the requirements of Statutory
Instrument, No. 3083 The Boiler (Efficiency)
Regulations, and therefore is deemed to meet the
requirements of Directive 92/42/EEC on the efficiency
requirements for new hot water boilers fired with liquid
or gaseous fuels.
Type test for purposes of Regulation 5 certified by:-
Product/production certified:-
The CE mark on this appliance shows compliance with:-
1. Directive 90/396/EEC on the approximation of the
Laws of the Member States relating to appliances
burning gaseous fuels.
2. Directive 73/23/EEC on the harmonization of the
Laws of the Member States relating to electrical
equipment designed for use within certain voltage limits.
3. Directive 89/336/EEC on the approximation of the
Laws of the Member States relating to electromagnetic
compatibility.
1.1 Servicing or Replacing Parts
To ensure the continued efficient and safe operation of
the boiler it is recommended that it is checked and
serviced as necessary at regular intervals. The frequency
of servicing will depend upon the particular installation
conditions and usage, but in general once a year should
be enough.
The servicing of this boiler must be carried out by a
competent person in accordance with the rules in force in
the countries of destination.
Unless stated otherwise, parts removed or renewed
during servicing should be fitted in the reverse order
to removal.
After completing any servicing, or renewing of gas
carrying components, ALWAYS test for gas soundness
and carry out functional checks of controls.
Discard all used sealing washers, gaskets and "O" rings
when renewing components.
Use the new ones supplied with the replacement.
221045A
Supplied By www.heating spares.co Tel. 0161 620 6677
1 G e n e r a l
Notified body 0087.
Notified body 0087.
An Aid to Servicing
To obtain a products of combustion reading, make sure
that the main burner is alight. Remove the plastic cap,
see diagram 1.4 and connect the analyser probe to the
tube, replace cap after use.
1.2 Data Label
The data label is positioned on the front of the inner case
cover, see diagram 1.3.
2

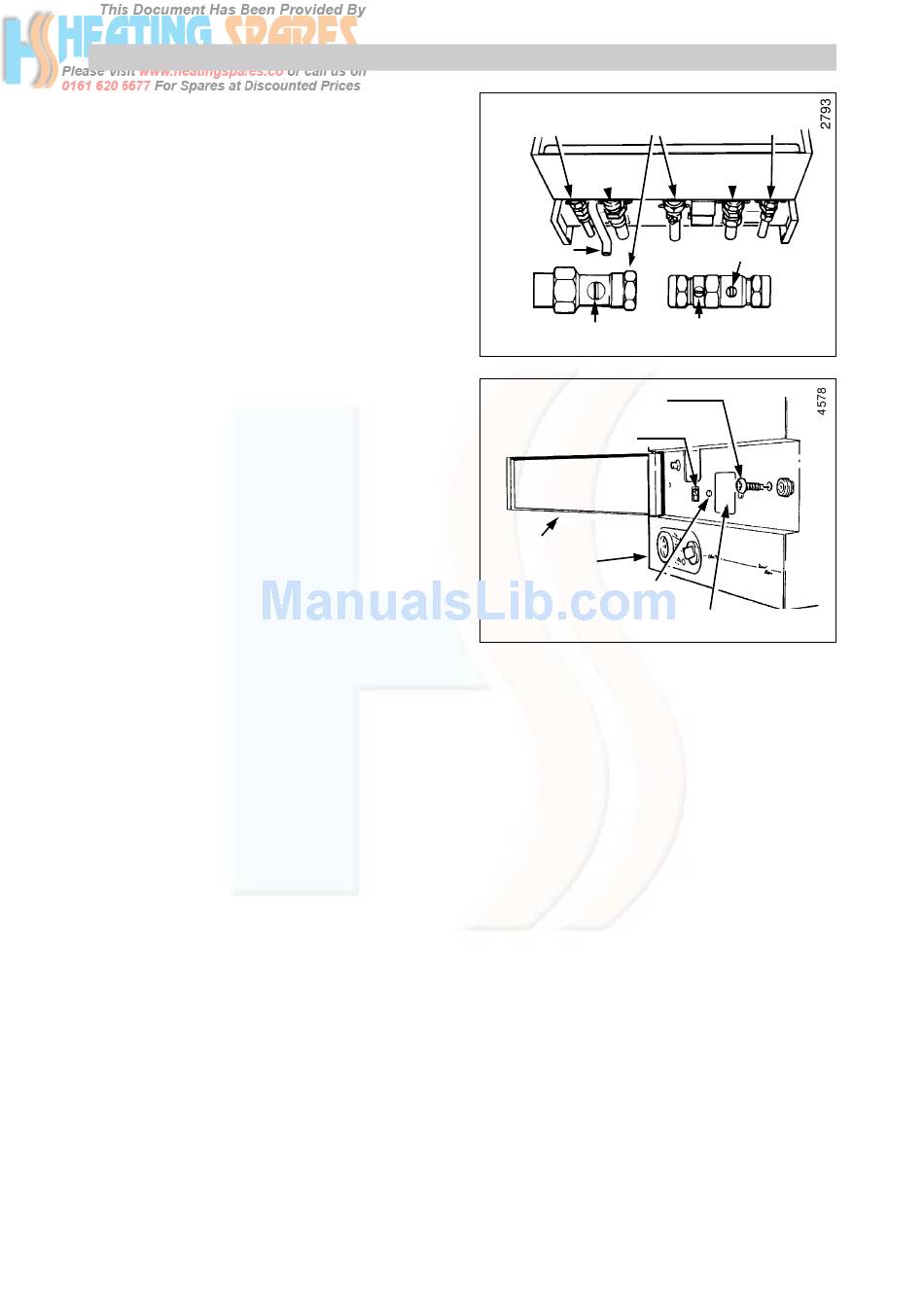

COLD WATER GAS SERVICE
SUPPLY IN COCK
HEATING
FLOW
SAFETY
VALVE
DISCHARGE
SLOT (CLOSED)
OUTER CASE SECURING
SCREW (2)
SELECTOR SWITCH
DOOR
OUTER CASE
PLASTIC PLUGS (2)
COVER PLATE
HOT WATER
OUT
HEATING
RETURN
SLOT (CLOSED)
DRAIN
POINT Diagram 1.1
Diagram 1.2
