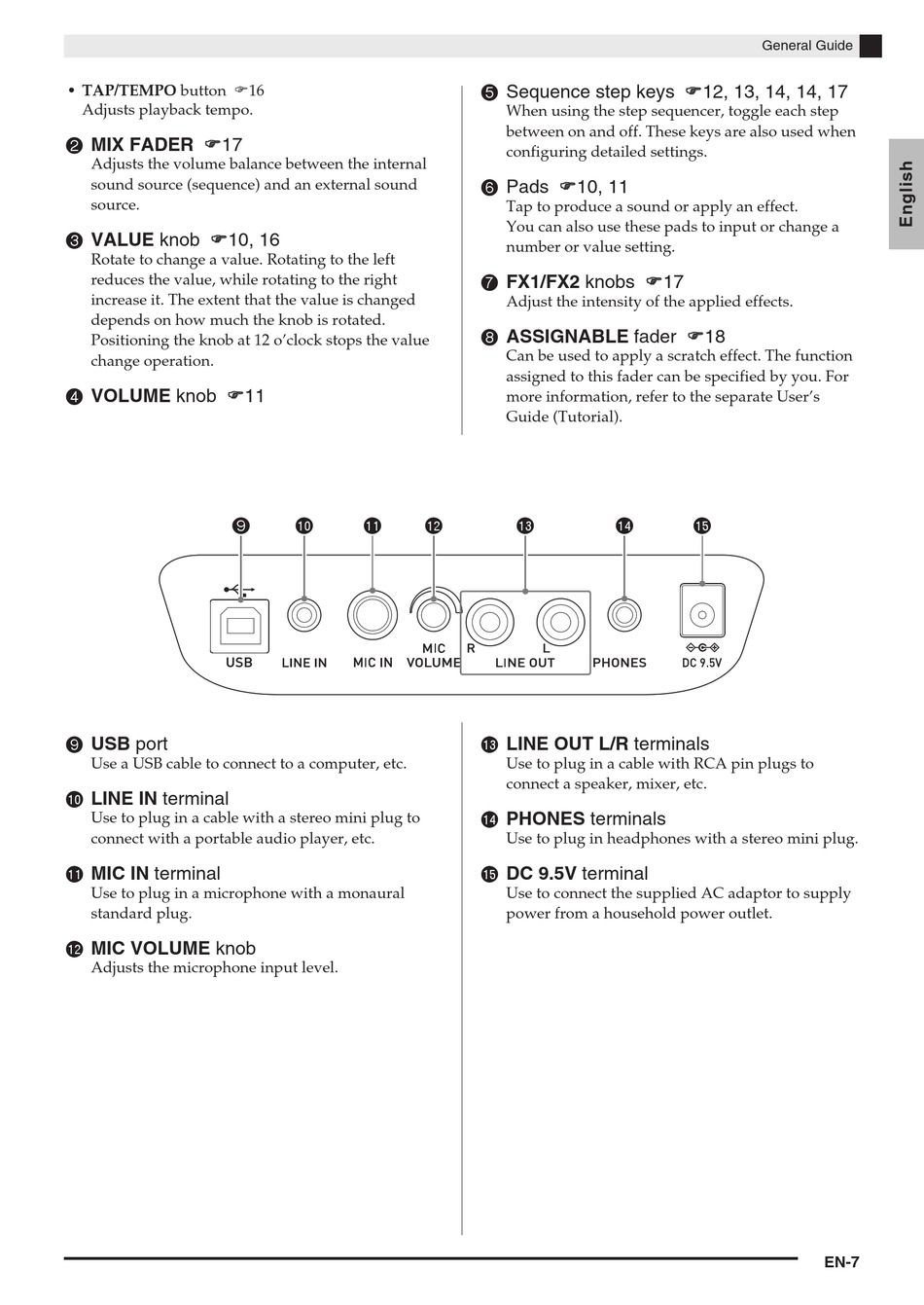

• TAP/TEMPO button
Adjusts playback tempo.
MIX FADER
17
2
Adjusts the volume balance between the internal
sound source (sequence) and an external sound
source.
VALUE knob
10, 16
3
Rotate to change a value. Rotating to the left
reduces the value, while rotating to the right
increase it. The extent that the value is changed
depends on how much the knob is rotated.
Positioning the knob at 12 o'clock stops the value
change operation.
VOLUME knob
4
9
USB port
9
Use a USB cable to connect to a computer, etc.
LINE IN terminal
bk
Use to plug in a cable with a stereo mini plug to
connect with a portable audio player, etc.
MIC IN terminal
bl
Use to plug in a microphone with a monaural
standard plug.
MIC VOLUME knob
bm
Adjusts the microphone input level.
16
11
bk
bl
Sequence step keys
5
When using the step sequencer, toggle each step
between on and off. These keys are also used when
configuring detailed settings.
Pads
10, 11
6
Tap to produce a sound or apply an effect.
You can also use these pads to input or change a
number or value setting.
FX1/FX2 knobs
7
Adjust the intensity of the applied effects.
ASSIGNABLE fader
8
Can be used to apply a scratch effect. The function
assigned to this fader can be specified by you. For
more information, refer to the separate User's
Guide (Tutorial).
bm
bn
LINE OUT L/R terminals
bn
Use to plug in a cable with RCA pin plugs to
connect a speaker, mixer, etc.
PHONES terminals
bo
Use to plug in headphones with a stereo mini plug.
DC 9.5V terminal
bp
Use to connect the supplied AC adaptor to supply
power from a household power outlet.
General Guide
12, 13, 14, 14, 17
17
18
bo
bp
EN-7
