- Page 1 INSTALLATION MANUAL OUTDOOR 360° SPEAKERS ES-AW-360-6-BRN...
- Page 2 | 2 INTRODUCTION Thank you for purchasing Episode® speakers. To complete installation, follow these instructions. Visit our website for design recommendations and speaker calculators. PACKAGE CONTENTS • ES-AW-360-6-BRN • Weatherproof Wire Nuts TOOLS REQUIRED • Coin to adjust tap switch •...
- Page 3 CAUTION: The speaker tap must be set accordingly for the type of amplifier in use (8Ω or 70/100volt). Setting the transformer incorrectly for the amplifier used could damage the speakers or amplifier. © 2015 Episode® © 2015 Episode®...
- Page 4 • Ensure the audio source is turned on and properly connected. WARRANTY Lifetime Warranty Episode® speakers have a Lifetime Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
Need help?
Do you have a question about the ES-AW-360-6-BRN and is the answer not in the manual?
Questions and answers

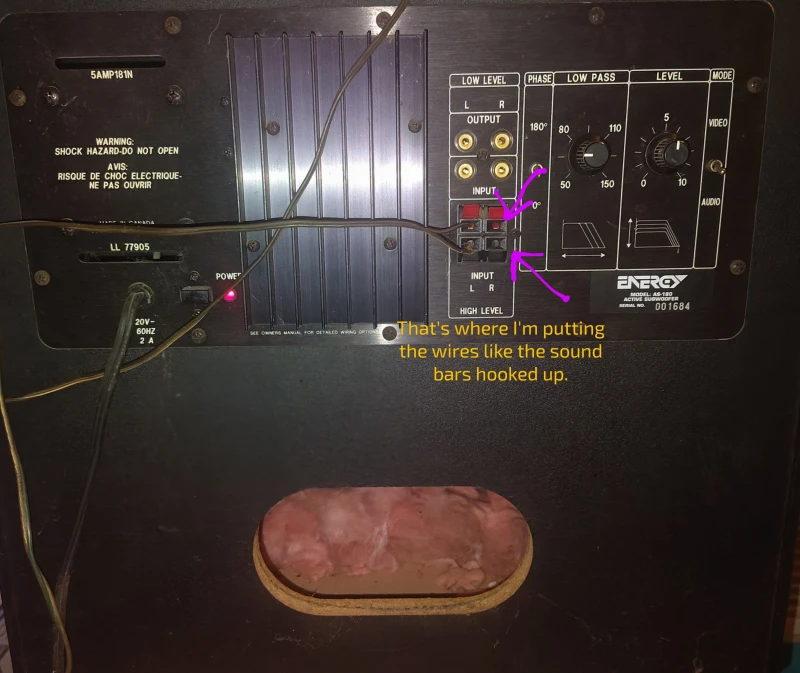

I'm trying to hook up my Episode ES-AW-360-6-BRN All-Weather Series 70V 360 Degree Speaker with 6.5" Woofer to a sub with amp built on I'll send a pic of. Back of sub box I'm trying to hook up. I have a sound bar running with the other sub works just fine but I can't get the episode to come on but I know the thing works plz tell me what to do lol ty
To connect the Episode ES-AW-360-6-BRN speaker with a subwoofer that has a built-in amplifier:
1. Set the Tap Switch: Use a coin to set the speaker’s wattage tap according to your system needs and amplifier type (70V system).
2. Wire the Speaker: Connect the speaker wires using the included weatherproof wire nuts. Ensure proper polarity: + to +, – to –.
3. Connect to Subwoofer:
- If the subwoofer has speaker-level (high-level) inputs and outputs:
- Connect the amplifier’s output to the subwoofer’s speaker-level input.
- Then connect the subwoofer’s speaker-level output to the Episode speaker.
- If the subwoofer only has line-level (RCA) inputs, it cannot directly connect to the 70V speaker line. Use a line output converter or a subwoofer with 70V compatibility.
4. Power On and Test: After all wiring is completed, power the amplifier and subwoofer. Test the system and adjust tap settings or amplifier volume for balanced sound.
Make sure the speaker tap setting matches the amplifier type and total wattage does not exceed the amplifier's capacity.
This answer is automatically generated
