• Front panel connections
The following are all connectors situated along the front edge of the motherboard. They are often
connected to buttons and LED's situated on the front panel.
A- Hard Disk L.E.D. Connector
This goes to the Hard Disk L.E.D. on the front panel, which lights up when the IDE Hard Disk is in use.
B - Reset switch connector
When these pins are shorted, it will cause the computer to perform a cold reboot.
C - Power L.E.D.
This attaches to the power L.E.D on the front panel, to display if the computer is active or not.
D- Power On/Off
When these pins are shorted it turns the computer on and off.
V1.0
Front Panel
Connections Header
9
8
Power Switch
4
Power LED
2 1
+
+

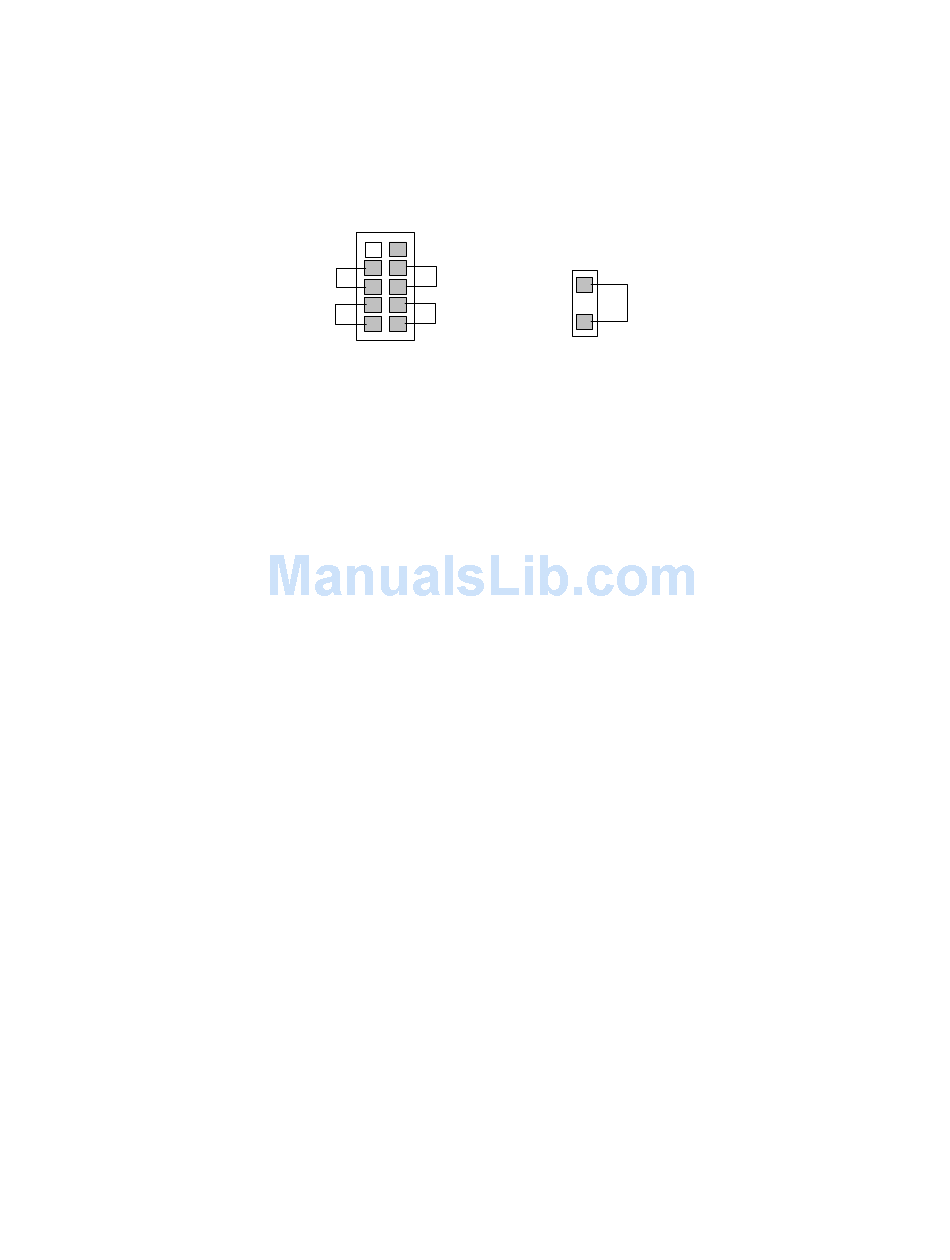

Figure 3. Front panel connectors
Page 8 of 17
Auxiliary Power LED
Reset Switch
3
H.D.D. LED
1
+
Power LED
