System Board Components - Viglen Intel D925XECV2 Quick Start Manual

• System Board Components

Table 2.
A PCI Express x1 bus add-in card connectors
B Realtek ALC860 audio codec
C Front panel audio connector
PCI Conventional bus add-in card
D connectors
Marvell Yukon 88E8050 PCI Express
Gigabit Ethernet Controller
E
F PCI Express x16 bus add-in card connector
G Rear chassis fan connector
H Back panel connectors
I Alternate power connector (not used)
J +12V power connector (ATX12V)
K LGA775 processor socket
L Hardware monitoring and fan control ASIC
M Processor fan connector
N Intel 82925XE MCH
O DIMM Channel A sockets
P DIMM Channel B sockets
Q I/O controller
V1.0

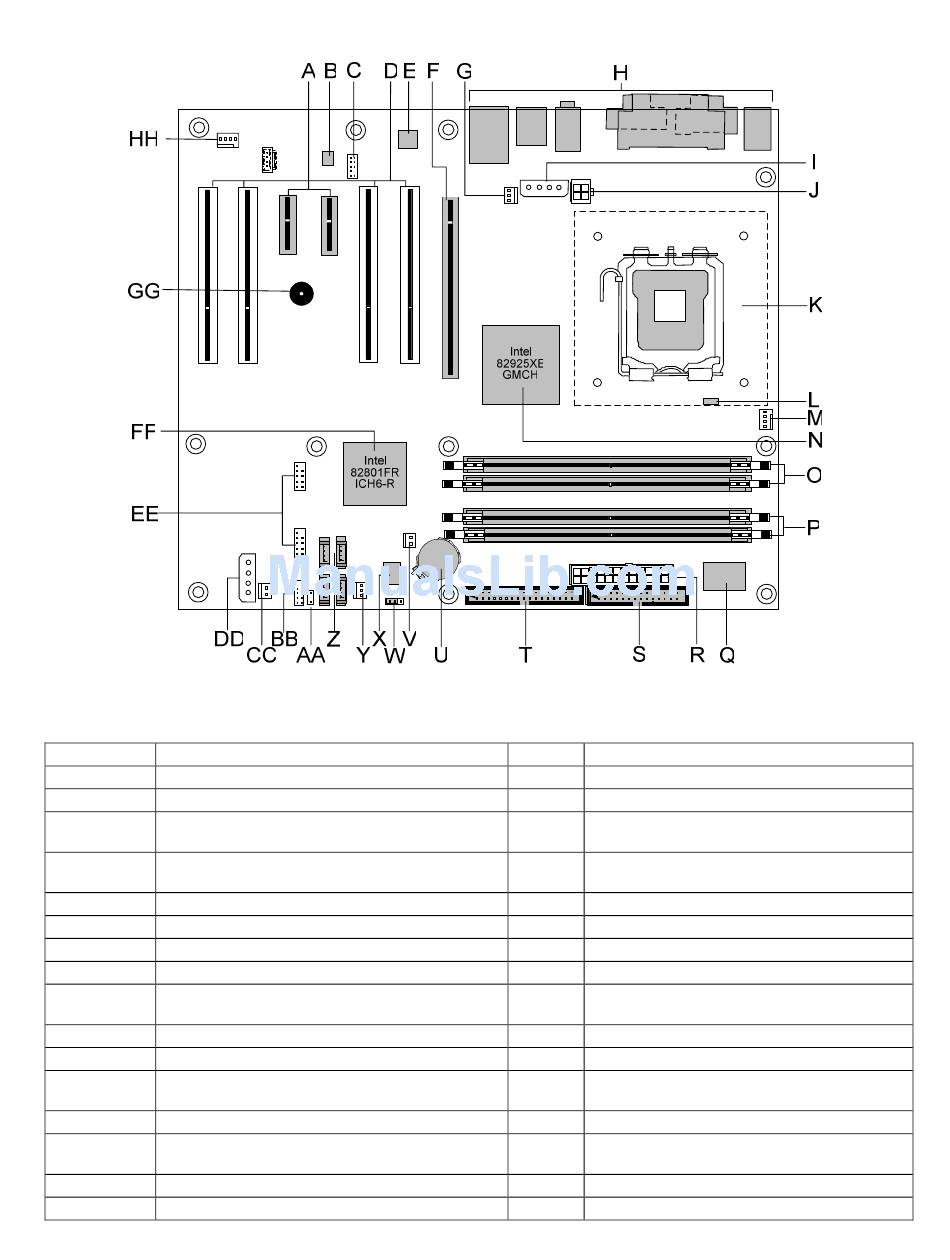

Figure 1 Motherboard Layout & Components
Page 6 of 17
R Power connector (24 way ATX2.2)
S Diskette drive connector
T Parallel ATE IDE connector
U Battery
V Chassis intrusion connector
W BIOS Setup configuration jumper block
X 4 Mbit Firmware Hub (FWH)
Y Front chassis fan connector
Z Serial ATA connectors
Auxiliary front panel power LED
AA connector
BB Front panel connector
CC SCSI LED connector (optional)
Auxiliary power connector (not to be
DD used to power HDD's optical drive's etc
EE Front panel USB connectors
Intel 82801FR I/O Controller Hub
FF (ICH6-R)
GG Speaker
HH Auxiliary rear fan connector
