Viglen Vig760S Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vig760S
Motherboard
Manual
.
.
C O M P U T E R S
N E T W O R K S
S O L U T I O N S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vig760S and is the answer not in the manual?

Questions and answers

Related Manuals for Viglen Vig760S

Summary of Contents for Viglen Vig760S

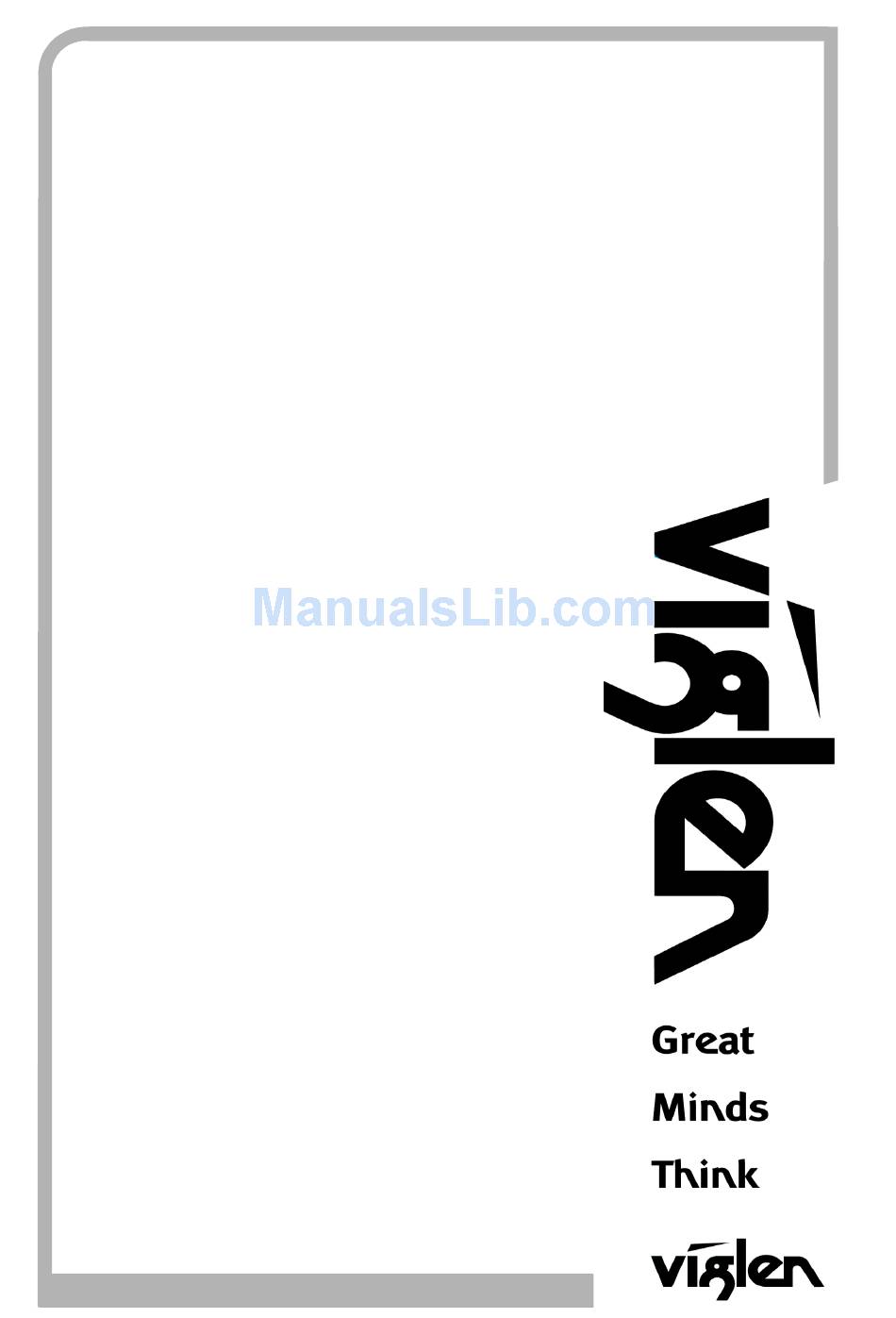

  • Page 1 Vig760S Motherboard Manual C O M P U T E R S N E T W O R K S S O L U T I O N S...

  • Page 2: Ce Marking

    Viglen, EMC and the ‘CE’ mark CE Marking European standards are being harmonised across borders. If products comply with the same standards in all European countries, product exporting and importing is made simple - paving our way to a common market. If you buy a product with a 'CE' mark on it (shown below), on the box, in the manual, or on the guarantee - it complies with the currently enforced directive(s).

  • Page 3: Viglen's Environment Laboratory

    Viglen’s Environment laboratory To gain a 'CE' mark, the Viglen computer range has had to undergo many difficult tests to ensure it is Electromagnetically Compatible. These are carried out in the in- house 'Environment lab' at Viglen Headquarters. We have made every effort to guarantee that each computer leaving our factory complies fully with the correct standards.

  • Page 4: Trademarks

    International Business Machines Corporation. Core i3/i5/i7 and Pentium® are registered trademarks of Intel® Corporation. All other trademarks are acknowledged. Genie, Vig, Viglen, and Omnino are trademarks of XMA Limited. Copyright and Patents This manual and all accompanying software and documentation are copyrighted and all rights reserved.

  • Page 5: Table Of Contents

    Contents CE Marking ..........................2 Introduction to EMC ......................2 Viglen’s Environment laboratory ................... 3 Please note ..........................3 Trademarks ..........................4 Copyright and Patents......................4 Liability ........................... 4 Chapter 1 Motherboard Overview ..................8 Introduction ........................8 Feature Summary ......................9 1.2.1...
  • Page 6 4.3.1 Introduction ......................33 4.3.2 BIOS Update Instructions under DOS ..............33 4.3.3 BIOS Update Instructions using EZ-Flash Method ..........34 4.3.4 Recovering the BIOS - CrashFree BIOS 3 ..............35 BIOS Setup Program ...................... 36 V1.0 Vig760S Motherboard Manual...
  • Page 7 Enabling Windows UEFI mode for Windows 8/8.1 Operating System....54 4.6.3 BIOS Settings for Windows 7 Operating System (Non UEFI Mode) ....... 57 4.6.4 Boot\Secure Boot Menu ..................57 Chapter 5 :Suggestions ....................58 Questionnaire ........................ 58 Notes ..........................60 V1.0 Vig760S Motherboard Manual...

  • Page 8: Chapter 1 Motherboard Overview

    It contains the CPU, memory and graphics circuitry that make the computer work in the correct manner. The Vig760S motherboard is a Mini ITX form factor offering legacy to premium features. PS/2 mouse/keyboard combo port, integrated Graphics via VGA, DVI, DisplayPort and HDMI, High Definition Audio via 3 flexible audio jacks and integrated 10/100/1000 network connection, as well as 4 USB 2.0 and 2 USB 3.0 ports to enrich...

  • Page 9: Feature Summary

     Supports up to 2 displays simultaneously 2.2.6 Audio  Realtek® ALC887 7.1-Channel High Definition Audio CODEC *1  Supports: Jack-detection, Front Panel Jack-retasking 2.2.7 LAN  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) 2.2.8 SATA  4 x SATA 6Gb/s connector(s) V1.0 Vig760S Motherboard Manual...

  • Page 10: Internal Connectors

     1 x PS/2 keyboard/mouse combo port(s)  1 x DVI-D  1 x D-Sub  1 x HDMI  1 x LAN (RJ45) port(s)  2 x USB 3.0 (blue)  4 x USB 2.0  3 x Audio jack(s) V1.0 Vig760S Motherboard Manual...

  • Page 11: System Board Connectors

    6 System panel connector (10-1 pin TPM connector (14-1 pin TPM) PANEL) 7 USB 3.0 connector (20-1 pin USB3_12) USB 2.0 connector (10-1 pin USB910) 8 Intel® H110 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4) Table 1: System Board Components V1.0 Vig760S Motherboard Manual...

  • Page 12: 1) Cpu And Chassis Fan Connectors (4-Pin Cpu_Fan, 4-Pin Cha_Fan)

    2.3.5 (5) Speaker connector (4-pin SPEAKER) The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings. 2.3.6 (6) System panel connector (10-1 pin PANEL) This connector supports several chassis-mounted functions. V1.0 Vig760S Motherboard Manual...

  • Page 13: 7) Usb 3.0 Connector (20-1 Pin Usb3_12)

    The signal is then generated as a chassis intrusion event. By default, the pins labelled “Intruder” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature. V1.0 Vig760S Motherboard Manual...

  • Page 14: 11) Clear Rtc Ram (2-Pin Clrtc)

    2.3.14 (14) PM connector (14-1 pin TPM) Connect a Trusted Platform Module (TPM) system to this connector to enhance network security, protect digital identities, and ensure platform integrity. V1.0 Vig760S Motherboard Manual...

  • Page 15: 15) Usb 2.0 Connector (10-1 Pin Usb910)

    This connector is for USB 2.0 ports. Connect the USB module cable to this connector, then install the module to a slot opening at the back of the system chassis. This USB connector complies with USB 2.0 specifications and supports up to 480Mbps connection speed V1.0 Vig760S Motherboard Manual...

  • Page 16: Rear Panel Connectors

    Table 3: Rear panel connectors 2.4.1 (1) PS/2 mouse/keyboard combo port. This port connects to a PS/2 mouse or PS/2 keyboard. 2.4.2 (2) Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices. V1.0 Vig760S Motherboard Manual...

  • Page 17: 3) Lan (Rj-45) Port

    Front Speaker Out. 2.4.6 (6) Microphone port (pink) This port connects to a microphone. NOTE: Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or 7.1-channel configuration. V1.0 Vig760S Motherboard Manual...

  • Page 18: 7) Usb 2.0 Ports

    DVI-D cannot be converted to output from RGB Signal to CRT and is not compatible with DVI-I. 2.4.10 (10) HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content. V1.0 Vig760S Motherboard Manual...

  • Page 19: Chapter 2 - System Board Options

    Chapter 3 - System Board Options Upgrades The Vig760s motherboard is supports Intel® Core i3, i5, i7 and Pentium processors in the LGA1151 socket. RAM can be upgraded to a maximum of 16GB using DDR4 2133MHz Non ECC Unbuffered DIMMs.

  • Page 20: Upgrade Procedures

    Upgrade Procedures Make sure you are earthed and free of static charge before you open the computer case. If you are unsure about upgrading your computer, return it to Viglen so a qualified engineer can perform the upgrade. Steps to take to prevent static discharge: 1.
  • Page 21 Figure 6: Remove the processor from the protective cover Remove the processor from the protective cover Note: Do not discard the processor cover. Always replace the processor cover if you remove the processor from the socket. V1.0 Vig760S Motherboard Manual...
  • Page 22 7, B) and that the notches on the processor align with the posts on the socket (Figure 7, C). Lower the processor straight down without tilting or sliding it in the socket (Figure 7, A). Figure 7: Install the processor V1.0 Vig760S Motherboard Manual...
  • Page 23 (Figure 8, C, and D). The socket cover (Figure 8, B) will pop off as shown. Figure 8: Secure the load plate in place 6. Pick up the socket cover and remove it from the desktop board. V1.0 Vig760S Motherboard Manual...
  • Page 24 (see Figure 9). A fan with a 4-pin connector as shown in Figure 9 is recommended. 1. Make sure the four hooks are in the proper position before you install the cooler. Figure 9: Connecting the processor fan V1.0 Vig760S Motherboard Manual...

  • Page 25: Installing & Removing Memory Modules

    6. When the DIMM is seated, push down on the top edge of the DIMM until the retaining clips at the ends of the socket snap into place. Make sure the clips are firmly in place. 7. Replace the computer cover. Figure 10: Memory Installation V1.0 Vig760S Motherboard Manual...
  • Page 26 Hold the DIMM by the edges, lift it away from the socket, and store it in an antistatic package. 5. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM sockets. Figure 11: Removing Memory Modules V1.0 Vig760S Motherboard Manual...

  • Page 27: Pci Express 3.0/2.0 X16 Slots

    Important: When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes. V1.0 Vig760S Motherboard Manual...

  • Page 28: Chapter 3 Solving Problems

    (also called warm reset). Cold boot: Clear the system memory, halt Power off/on or reset button (at front of the power to all peripherals, restart POST, and system) reload the operating system. V1.0 Vig760S Motherboard Manual...

  • Page 29: Troubleshooting Procedures

    Errors that prevent the boot process from continuing (fatal errors), are communicated by a series of audible beeps. If this type of error occurs, refer to the error codes and messages listed at the end of this chapter. 6. Confirm that the operating system has loaded. V1.0 Vig760S Motherboard Manual...

  • Page 30: Problems & Suggestions

    Check that the brightness and contrast controls are properly adjusted. Check that the video signal cable is properly installed. Make sure a video board is installed, enabled, and the jumpers are positioned correctly. Reboot the system. Table 6: Problems and Suggestions V1.0 Vig760S Motherboard Manual...
  • Page 31 This indicates a fatal system error that requires immediate service attention. Note the screen display and write down any beep code completing POST emitted. Provide this information to your dealer service department / Technical Support. Table 8: Problems and Suggestions Continued V1.0 Vig760S Motherboard Manual...

  • Page 32: Chapter 4 System Bios

    (also known as the CMOS RAM) and provides a special Setup program to change this information. The BIOS in your Viglen computer is guaranteed to be fully compatible with the IBM BIOS. It has been written by American Megatrends Inc, an industrial leader in the field of BIOS software.

  • Page 33: Managing And Updating Bios

    Managing and updating BIOS 5.3.1 Introduction There are up three methods of updating BIOS to the latest Viglen approved version. The number of options made available for any particular board may vary depending on BIOS Support, drive support and BIOS update file size. You only need to use one.

  • Page 34: Bios Update Instructions Using Ez-Flash Method

    • Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. IMPORTANT! During the update process DO NOT shut down the PC or interrupt the process, this could cause damage to the motherboard. V1.0 Vig760S Motherboard Manual...

  • Page 35: Recovering The Bios - Crashfree Bios 3

    <F5> to load default BIOS values. IMPORTNANT: DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure! V1.0 Vig760S Motherboard Manual...

  • Page 36: Bios Setup Program

    <Ctrl>, <Alt>, and <Delete> keys. Control Keys Figure 13: BIOS control keys After entering the BIOS, the first screen you will see is the Main Menu – EZ Mode V1.0 Vig760S Motherboard Manual...

  • Page 37: Ez Mode

    Figure 14: Bios Menu - EZ Mode • The boot device options vary depending on the devices you installed to the system. • The Boot Menu (F8) button is available only when the boot device is installed to the system. V1.0 Vig760S Motherboard Manual...

  • Page 38: Advanced Mode

    For displaying the system temperature, power status, and changing the fan settings Boot For changing the system boot configuration Tool For configuring options for special functions Exit For selecting the exit options and loading default settings V1.0 Vig760S Motherboard Manual...

  • Page 39: My Favourites

    The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items 5.5.1 My Favourites My Favourites is your personal space where you can easily save and access your favourite BIOS items. Figure 16: My Favourites Menu V1.0 Vig760S Motherboard Manual...

  • Page 40: Main Menu

    Figure 17: Main Menu System Language [English] Allows you to choose the BIOS language version from the options. System Date [Day xx/xx/xxxx] Allows you to set the system date. System Time [xx:xx:xx] Allows you to set the system time. V1.0 Vig760S Motherboard Manual...

  • Page 41: Security

    After you set a password, this item shows Installed. To set a user password: 1. Select the User Password item and press <Enter>. 2. From the Create New Password box, key in a password, then press <Enter>. V1.0 Vig760S Motherboard Manual...
  • Page 42 To clear the user password, follow the same steps as in changing a user password, but press<Enter> when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed. V1.0 Vig760S Motherboard Manual...

  • Page 43: Ai Tweaker Menu

    Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction. The configuration options for this section vary depending on the CPU and DIMM model installed on the motherboard. Figure 18: Ai Tweaker Menu V1.0 Vig760S Motherboard Manual...

  • Page 44: Advanced Menu Screen

    Figure 19: Advanced Sub Menu Screen CPU Configuration The items in this menu show the CPU-related information that the BIOS automatically detects. The items shown in submenu may be different due to the CPU you installed. V1.0 Vig760S Motherboard Manual...

  • Page 45: Platform Misc Configuration

    Platform Misc Configuration The items in this menu allow you to configure the platform-related features. Figure 20: Platform Misc Configuration System Agent (SA) Configuration Allows you to set the SATA configuration. Figure 21: System Agent (SA) Configuration V1.0 Vig760S Motherboard Manual...

  • Page 46: Pch Configuration

    The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port Figure 22: PCH Configuration USB Configuration The items in this menu allow you to change the USB-related features. Figure 23: USB Configuration V1.0 Vig760S Motherboard Manual...

  • Page 47: Onboard Devices Configuration

    Onboard Devices Configuration Configuration on onboard device such as audio and serial port configuration. Figure 24: Onboard Devices Configuration APM Configuration Advanced power management. Figure 25: APM Configuration V1.0 Vig760S Motherboard Manual...

  • Page 48: Network Stack Configuration

    Figure 26: Network Stack Configuration HDD/SSD SMART Information Alows you to monitor the status of storage drives. 5.5.5 Monitor menu The Monitor menu displays the system temperature/power status, and allows you to change the fan settings. Figure 27: Monitor Menu V1.0 Vig760S Motherboard Manual...

  • Page 49: Boot Menu

    5.5.6 Boot menu The Boot menu items allow you to change the system boot options. Figure 28: Boot Menu V1.0 Vig760S Motherboard Manual...

  • Page 50: Tools Menu

    5.5.7 Tools menu The Tools menu items allow you to configure options for special functions. Select an item then press <Enter> to display the submenu. Figure 29: Tool menu V1.0 Vig760S Motherboard Manual...

  • Page 51: Exit Menu

    Discard Changes & Exit This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a confirmation window appears. Select Yes to discard changes and exit. V1.0 Vig760S Motherboard Manual...

  • Page 52: Asus Ez Mode

    This option allows you to enter the EZ Mode screen. Launch EFI Shell from filesystem device This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available devices that have a file system. Figure 31: ASUS EZ Mode V1.0 Vig760S Motherboard Manual...

  • Page 53: Windows Uefi Mode For Windows 8/8.1

    BIOS settings for Windows 7 and Windows 8/8.1 O/S 5.6.1 Windows UEFI mode for Windows 8/8.1 Vig760S system configured with Windows 8/8.1 will have following default BIOS settings. If you wish to downgrade to Windows 7 then BIOS must be configured to Non-UEFI mode.

  • Page 54: Enabling Windows Uefi Mode For Windows 8/8.1 Operating System

    4. In the CSM (Compatibility Support Module) change following settings for Windows 8/8.1. Launch CSM [Enabled] Boot Device Control [UEFI Only] Boot from Network Devices [UEFI drivers first] Boot from Storage Devices [UEFI drivers first] Boot from PCI-E/PCI Expansion Devices [UEFI drivers first] V1.0 Vig760S Motherboard Manual...
  • Page 55 Back Button to go back to the Boot Sub Menu to enable Windows UEFI for secure boot. 5. Navigate to Secure Boot from within the Boot sub menu. 6. Change OS Type to Windows UEFI. Figure 34: Secure Boot Menu 7. Select Key Management. V1.0 Vig760S Motherboard Manual...
  • Page 56 NOTE: If you need to check changes have been saved go back into BIOS after reboot and navigate into Secure Boot settings. Check that Secure Boot state is enabled and Platform Key (PK) state is Loaded. Figure 36: Key management – Key loaded V1.0 Vig760S Motherboard Manual...

  • Page 57: Bios Settings For Windows 7 Operating System (Non Uefi Mode)

    [UEFI and Legacy OPROM first] Boot from Network Devices [Legacy OPROM] Boot from Storage Devices [Legacy OPROM] Boot from PCI-E/PCI Expansion Devices [Legacy OPROM] Figure 37: Windows 7 BIOS settings 5.6.4 Boot\Secure Boot Menu Figure 38: Windows 7 BIOS settings V1.0 Vig760S Motherboard Manual...

  • Page 58: Chapter 5 :Suggestions

    XMA has listed some questions that you may like to answer and return to Viglen. This will help Viglen help to keep and improve the standard of their manuals. 1. Is the information provided in this and other manuals clear enough? 2.
  • Page 59 Are there any technological improvements that could be made to the system? 7. Other points you would like to mention? Please return this slip to: Product Development Dept. XMA Ltd. 7 Handley Page Way Colney Street St Albans Hertfordshire AL2 2DQ V1.0 Vig760S Motherboard Manual...

  • Page 60: Notes

    Notes V1.0 Vig760S Motherboard Manual...
