• Jumper settings

CAUTION Do not move any jumpers with the power on. Always turn off the power and unplug the power cord from the computer
before changing a jumper setting. Otherwise, the board could be damaged.
BIOS Setup Configuration Jumper (J6J3) Settings
The 3-pin jumper block determines the BIOS Setup program's mode. The table below describes the jumper settings for the three
modes: normal, configure, and recovery. When the jumper is set to configure mode and the computer is powered-up, the BIOS
compares the processor version and the microcode version in the BIOS and reports if the two match.
Table 4.
Function/Mode Jumper Setting
Normal 1-2
Configure 2-3
Recovery None
V1.0

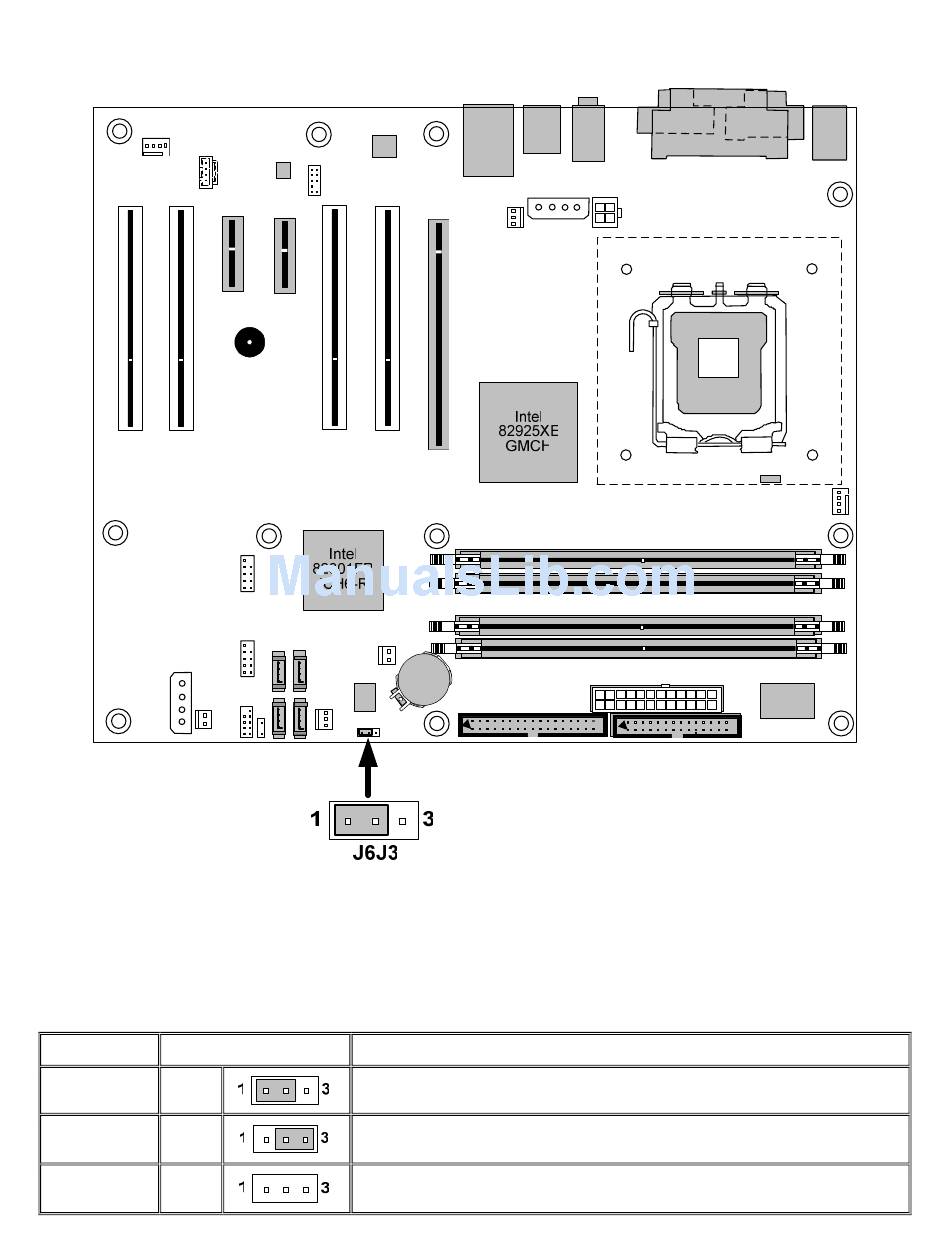

Figure 5. Motherboard jumper.
The BIOS uses current configuration information and passwords for booting.
After the POST runs, Setup runs automatically. The maintenance menu is
displayed.
The BIOS attempts to recover the BIOS configuration. A recovery diskette is
required.
