• Back Panel Connectors 5.1 Audio ALC860
Table 3.
Item Description
A PS/2* mouse port (Green)
B PS/2 keyboard port (Purple)
C Serial port A (Teal)
D Parallel port (Burgundy)
E Audio line in/Retasking Port C (Blue)
Front left/right channel audio out/Two
F channel audio line out/Retasking Jack
D [Lime green]
Note: The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are connected to this
output.
V1.0

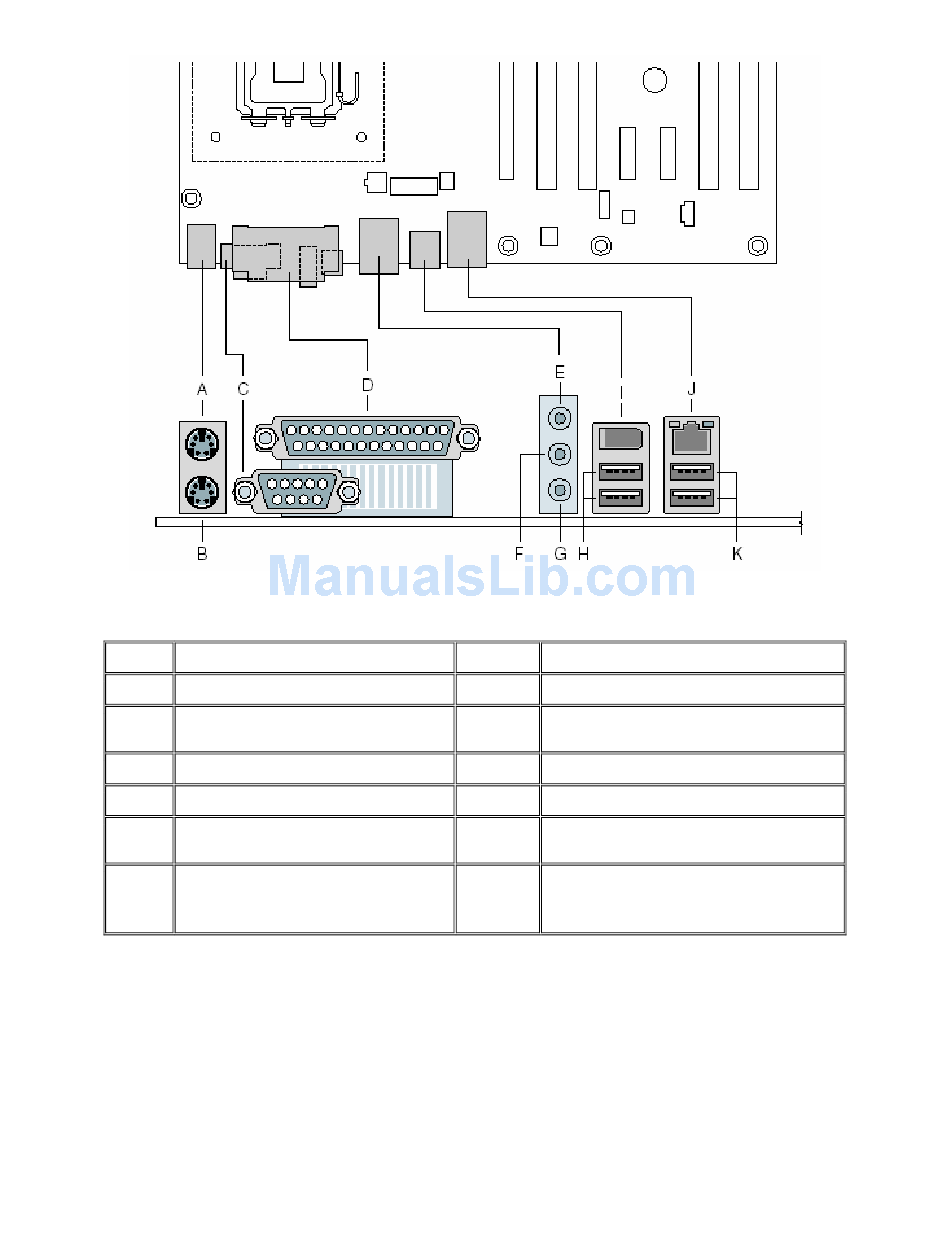

Figure 2. Back Panel Connectors.
Item
G
H
I
J
K
Page 7 of 17
Description
Mic in/Retasking Port B (Pink)
USB ports (two)
IEEE-1394a (optional)
LAN
USB ports (two)
